Bernardo circular table saw TK 250 F - 230 V
Properties Bernardo circular table saw TK 250 F - 230 V
- Complete with user-friendly sliding table with a surface of 410 x 710 mm
- Extractable telescopic fence (up to 2000 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º
- Mitre fence either useable on right or left of sawblade, suitable for angle cuts up to 45º

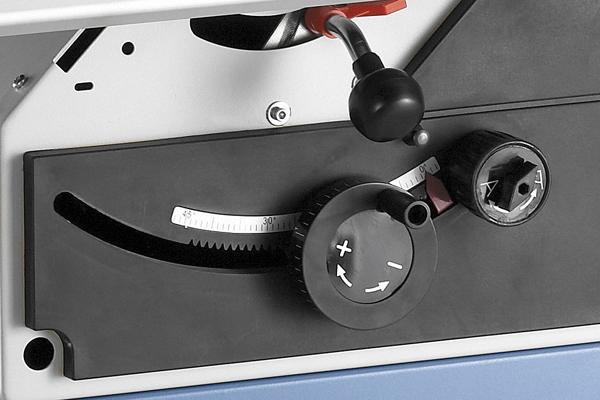

- Ergonomically arranged handwheels allow for setting of saw unit
- Solid grey cast-iron table with T-slots on right and left of sawblade
- Includes table extension on the right for better support of oversize boards
- Solid and easily adjustable saw unit, tiltable from 90º to 45º
- Square table ensures convenient machining of large boards
Standard accessories Bernardo circular table saw TK 250 F - 230 V:
- Carbide sawblade 254 x 3,0 x 30 mm / 36T
- Protective cover with dust extraction outlet
- Connector tube with Y-piece
- Mitre fence with eccentric holder
- Table extension right
- Extractable telescopic fence
- Square table
- Radial-pull sawing device
- Push stick
- Tools
Technical specifications Bernardo circular table saw TK 250 F - 230 V:
Table size | 800 x 520 mm |
Sliding table | 410 x 710 mm |
Cutting length | 1230 mm |
Max. sawblade diameter | 254 x 30 mm |
Max. cutting height 90° / 45° | 82 / 54 mm |
Travel of sawblade | 225 mm |
Cutting width on rip fence | 730 mm |
Table height | 900 mm |
Table extension | 800 x 320 mm |
Square table | 600 x 410 mm |
Speed main sawblade | 4000 rpm |
Dust extraction outlet Ø | 100 mm |
Motor power output S1 100% | 1,5 kW (2,0 HP) |
Motor power input S6 40% | 2,1 kW (2,85 HP) |
Voltage | 230 V |
Machine dimension (W x D x H) | 2020 x 2300 x 1200 mm |
Weight approx. | 175 kg |
