The KFM 200 M chamfering machine is suitable for deburring and chamfering of various materials as well as economic preparation of welding seams. Its main area of application is definitely the metal industry.
Features Bernardo chamfering machine KFM 200 M - 400 V

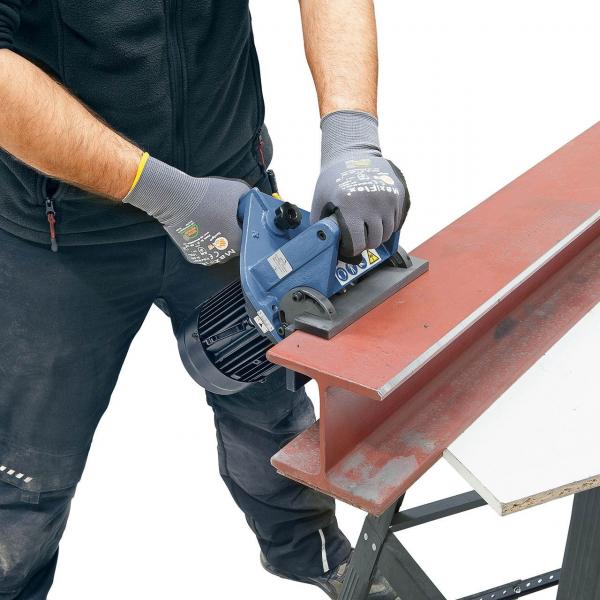

- Working direct at the workpiece, hence ideal for processing of oversize boards, steel joists and profiles with a 90º surface
- Designed for chamfering straight edges and preparation of welding seams
- Essential device in steel and machine construction as well as assembly works
- Ergonomic two-hand operation ensures high work comfort
- Quick and easy removal of cutting edges
- Cost-effective model for mid-range demands
Standard accessories Bernardo chamfering machine KFM 200 M - 400 V
- Guide rail 200 mm
- Milling head
- Carbide inserts
- Tool
Technical specifications Bernardo chamfering machine KFM 200 M - 400 V
|
Max. bevel width at 45°
|
10 mm
|
|
Angle adjustment
|
15° - 45°
|
|
Guide rail
|
200 mm
|
|
Speed
|
2800 rpm
|
|
Motor power
|
0,37 kW
|
|
Voltage
|
400 V
|
|
Machine dimension (L x W x H)
|
370 x 250 x 230 mm
|
|
Weight approx.
|
11 kg
|
