Bernardo Center lathe Profi 450 S Vario / 230 V

Product No.:
03-1046
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
112 kg per piece
1.628,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

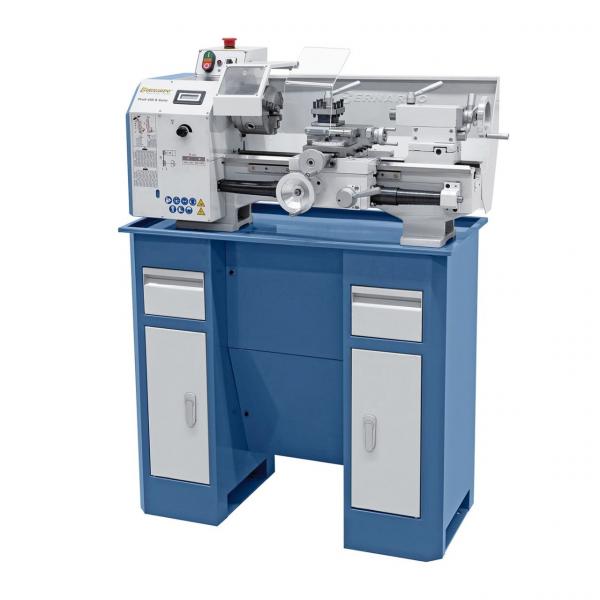

Product Highlights Bernardo Center Lathe Profi 450 S Vario / 230 V​

The compact lead screw lathe Profi 450 S / Profi 450 S Vario convinces with its modern design and the powerful drive motor for high torque. The convincing price-performance ratio makes this model ideal for model makers and hobby craftsmen.

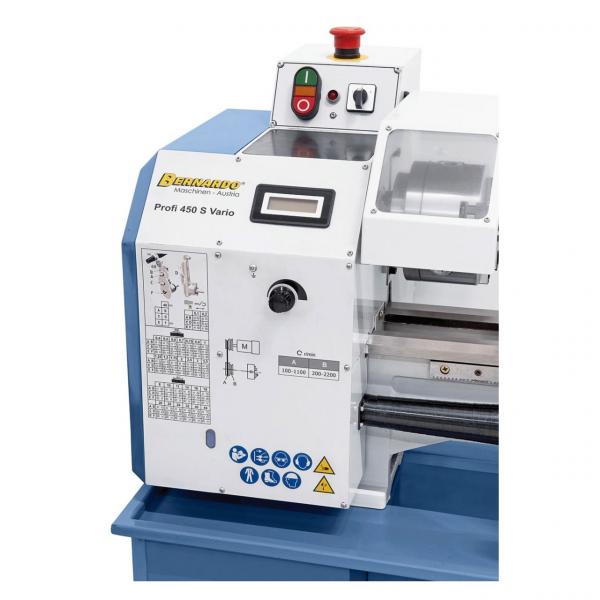

  • Electronic, infinitely variable speed control, allowing optimum adjustment of the cutting speed to the workpiece.
  • Standard with lead screw for thread cutting or for automatic longitudinal feed
  • Solid machine bed with inductively hardened and ground bed guide
  • High concentricity of the spindle nose (≤ 0.009 mm) due to precision taper roller bearings

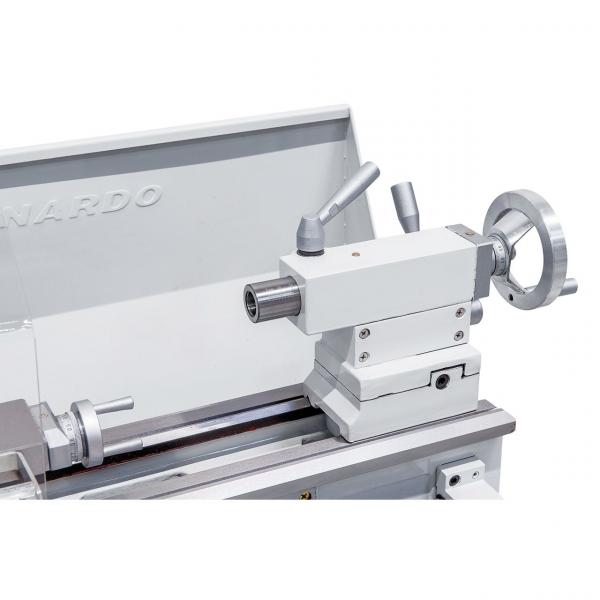

  • Tailstock can be adjusted for taper turning
  • User-friendly arrangement of the indexing elements
  • Guides can be adjusted via taper bars
  • Powerful drive motor for high torque, speed range 100 - 2200 rpm
  • Ideally suited for machining steel, non-ferrous materials and plastics
  • Versatile application possibilities: Precision mechanics, training and teaching workshops, ...

Scope of delivery Bernardo lead screw lathe Profi 450 S Vario / 230 V​

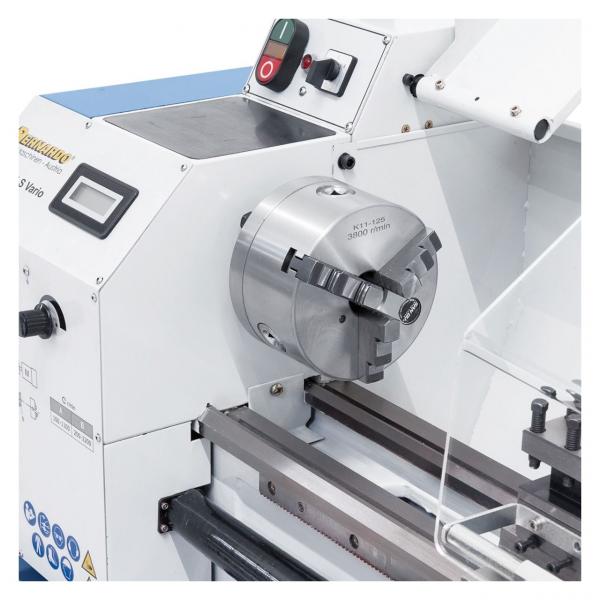

  • 3-jaw chuck 125 mm
  • Chuck flange 125 mm
  • Face slide with top support
  • Digital speed indicator
  • Fixed centre points
  • Change wheels
  • Quadruple steel holder
  • Chuck guard
  • Chip guard
  • Lead screw cover
  • Operating tool

Technical data Bernardo Center lathe Profi 450 S Vario / 230 V​

Peak width

450 mm

Centre height

115 mm

Swing diameter over bed

230 mm

Bed width

135 mm

Spindle bore

20 mm

Mounting in the spindle bore

MK 3

Speed range, infinitely variable

100 - 1100 rpm



200 - 2200 rpm

Longitudinal feed range

(2) 0.1 / 0.2 mm/rev

Metric threads

(14) 0,4 – 3,5 mm

Inch thread

(12) 8 – 44 Gg/1“

Pinole path

60 mm

Spindle sleeve holder

MK 2

Motor output power S1 100%

0,90 kW (230 V)

Motor input power S6 40%

1,35 kW (230 V)

Machine dimension (W x D x H)*

1000 x 580 x 500 mm

Weight approx.

112 kg

* without underframe
