Product features Bernardo BFM 2100 bed-type milling machine
The BFM 2100 conventional bed-type milling machine is ideally suited for the machining of large and heavy workpieces. The large-dimensioned flat guides in all axes guarantee maximum stability and precision even with high table loads. The universal milling head can be adjusted to all angles thanks to the infinitely variable adjustment of the 90° and 45° plane.
- Very high table load due to solid cast iron construction
- Universal milling head system "Huron", adjustable to all angular positions
- Large-dimensioned flat guides guarantee stability at high milling loads
- Including swivelling extension arm with clearly arranged control panel
- Inductively hardened and ground guideways
- Infinitely variable adjustment of the feed rate in all axes

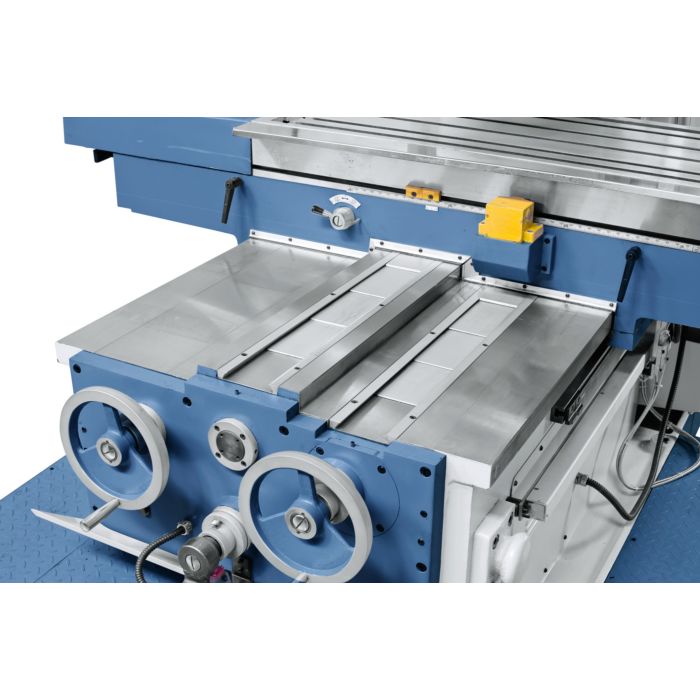

- Large-area ribbed saddle in robust box construction
- Precision-ground worktable, optimally guided on the wide saddle
- Column and column in solid box column design
Scope of delivery Bernardo BFM 2100 bed milling machine
- 3-axis digital display ES-12 H with LCD display
- Stepless longitudinal and cross feed
- LED machine light
- Universal milling head
- Horizontal counter bearing
- Long milling arbor ISO 50 / 32 mm
- Combination arbor ISO 50 / 40 mm
- Telescopic cover z-axis
- Universal guard
- Protective cover for horizontal milling
- Central lubrication
- Operating tool
Technical data Bernardo BFM 2100 bed milling machine
|
Table size
|
2100 x 500 mm
|
|
Spindle mount
|
ISO 50
|
|
Spindle speed
|
(12) 40 - 1600 rpm
|
|
Traverse path longitudinal (x)
|
1500 mm
|
|
Traversing arm transverse (y)
|
700 mm
|
|
Vertical travel (z)
|
700 mm
|
|
Outreach
|
610 mm
|
|
Spindle head swivel range
|
360°
|
|
Distance spindle / table
|
0 - 700 mm
|
|
Feed rate
|
|
|
x-axis (stepless)
|
20 - 1800 mm/min
|
|
y-axis (stepless)
|
20 - 1800 mm/min
|
|
z-axis (stepless)
|
10 - 900 mm/ min
|
|
Rapid traverse x-axis and y-axis
|
3500 mm/min
|
|
Rapid traverse z-axis
|
1750 mm/min
|
|
Feed motor
|
2,0 kW
|
|
Coolant pump
|
0,55 kW
|
|
Main engine
|
7,5 kW
|
|
Machine dimension (W x D x H)
|
3300 x 2380 x 2750 mm
|
|
Weight approx.
|
7300 kg
|
