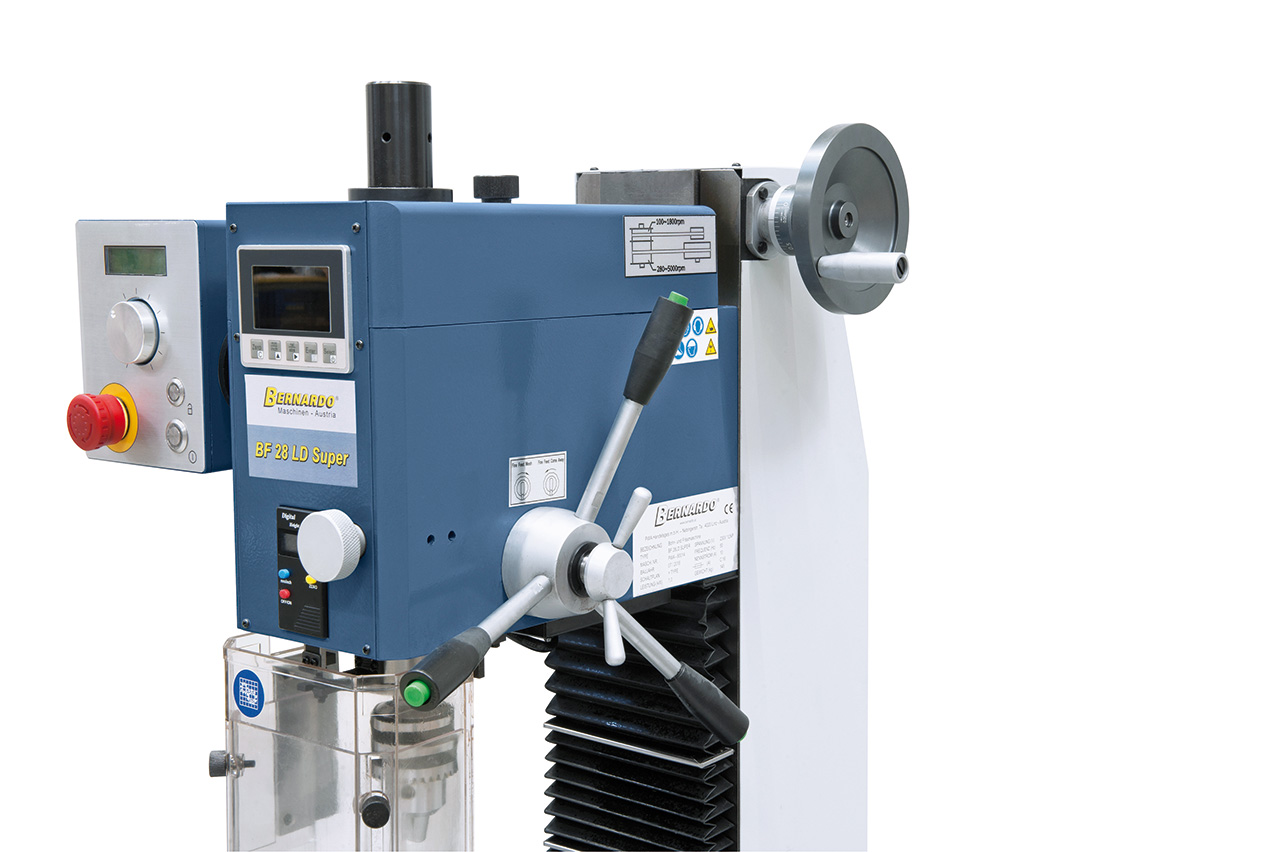

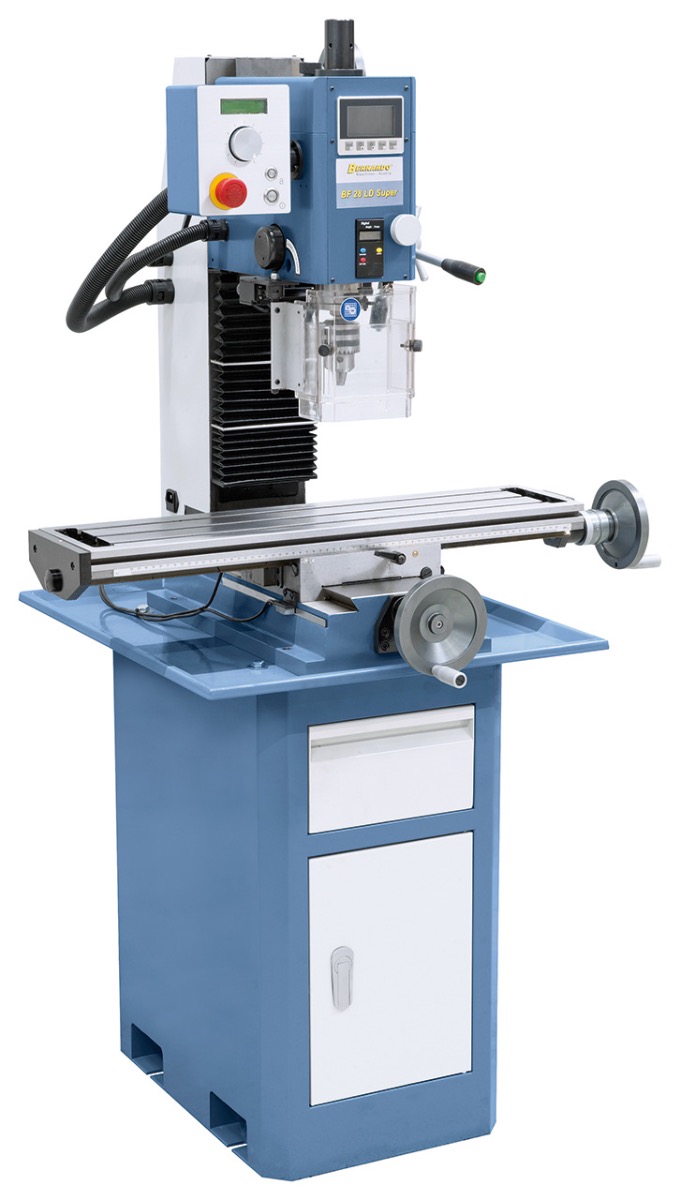

Even the basic version of the BF 28 LD Super drilling and milling machine is equipped with a digital speed and quill stroke display. The brushless DC motor for high torque also offers an integrated 3-axis digital display and a thread cutting device. This machine is used by professional users, in model making and in the training sector.
Features Bernardo BF 28 LD Super drilling and milling machine
- Variable speed setting, speed can be infinitely adjusted to the workpiece
- DC motor for optimum torque in the lower speed range
- Versatile application possibilities, e.g. tapping, slot milling, slot milling, ...
- Standard with right-left rotation device and digital quill stroke display
- Dovetail guide for x-, y- and z-axis, adjustable via wedge bars
- High concentricity of the sleeve due to taper roller bearings (≤ 0.015 mm)
- Thread cutting device as standard
- Ergonomically positioned switching and operating elements
- Precise quill feed during milling by means of handwheel
- Smooth running due to ground gearwheels
- Wide speed range (2 steps) from 100 - 5000 rpm
Scope of delivery Bernardo BF 28 LD Super drilling and milling machine
- 3-axis digital display
- Gear rim drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MK 3 / B 16
- Tightening spindle M 12
- Digital speed display
- Digital drilling depth display
- Height-adjustable protective cover
- Thread cutting device
- Operating tool
Technical data Bernardo BF 28 LD Super drilling and milling machine
|
Drilling capacity in steel
|
28 mm
|
|
Face milling cutter max.
|
63 mm
|
|
End mill max.
|
20 mm
|
|
Thread cutting max.
|
M 20
|
|
Invitation
|
210 mm
|
|
distance spindle/table min./max.
|
110 – 375 mm
|
|
Quill stroke
|
78 mm
|
|
Spindle speed, infinitely variable
|
100 - 1800 / 280 - 5000 rpm
|
|
Spindle mount
|
MK 3
|
|
Table size
|
740 x 180 mm
|
|
Travel distance (x / y)
|
500 / 210 mm
|
|
Height adjustment of milling head
|
265 mm
|
|
T-slot size
|
12 mm
|
|
Motor output power S1 100%
|
1.0 KW / 230 V
|
|
Motor input power S6 40%
|
1.3 kW / 230 V
|
|
Machine dimensions (W x D x H)*
|
970 x 770 x 940 mm
|
|
Weight approx.
|
142 kg
|
|
* without base frame
|
