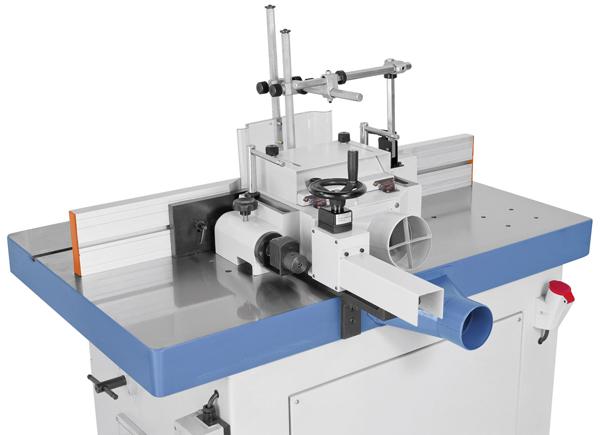

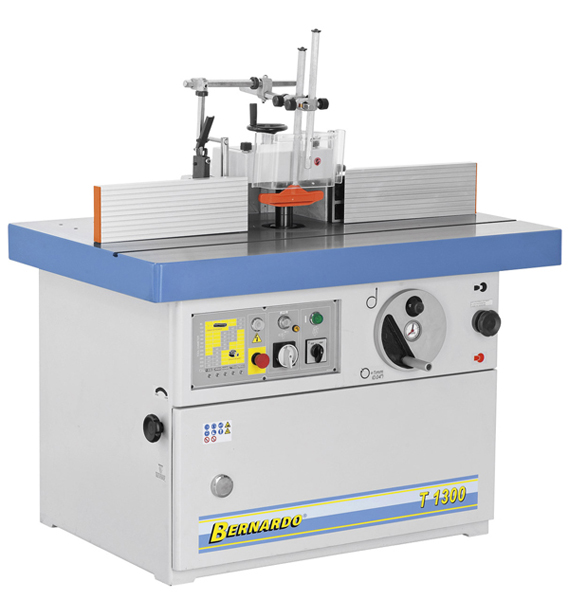

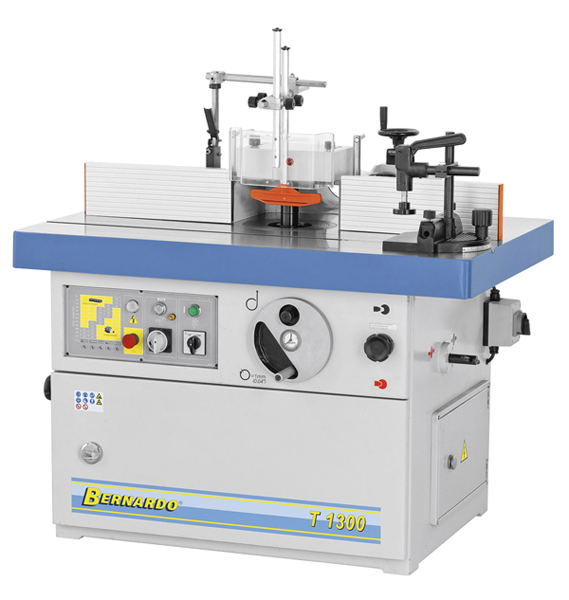

Bernardo Bench milling machine with rigid milling spindle T 1300
Properties Bernardo Bench milling machine with rigid milling spindle T 1300
- Handwheel with analogue dislay for spindle stroke
- Wide speed range – 5 settings – from 1500 to 9000 rpm
- Electronic speed display featuring LED for easy readout
- Complete with interchangeable spindle to guarantee productivity
- Dynamically balanced moulder spindle for precise run free from vibrations
- Clearly arranged control elements on front of machine
- Handwheel allows for adjustment of moulder fence – digital display shows settings to 1/10 mm accuracy
- Powerful motor (5.5 kW) with star-delta starter for continuous operation
- Generously sized, grey cast-iron moulder unit guarantees top precision and long lifetime
Standard accessories Bernardo Bench milling machine with rigid milling spindle T 1300:
- Moulding fence FA-02
- Protective and pressing device
- Mitre fence with downholder
- Interchangeable spindle 30 mm
- Left and right turning
- LED speed indication
- Analogue height indication
- Electric spindle brake
- Automatic star-delta starter
- Connection for power feed
Technical specifications Bernardo Bench milling machine with rigid milling spindle T 1300:
|
Table size |
1300 x 850 mm |
|
Working height |
870 mm |
|
Spindle diameter |
30 mm |
|
Height adjustment of spindle |
180 mm |
|
Working length of spindle |
130 mm |
|
Max. tool diameter |
|
|
- at profiling |
260 mm |
|
- at tenoning |
335 mm |
|
Max. tool diameter concealed |
210 mm |
|
Table opening |
220 mm |
|
Spindle speed |
1500 / 3500 / 5500 / 7500 / 9000 U/min |
|
Dust extraction outlet |
125 / 100 mm |
|
Motor power |
5,5 kW (7,5 PS) – 400 V |
|
Machine dimension (W x D x H) |
1300 x 1080 x 1400 mm |
|
Weight approx. |
530 kg |
