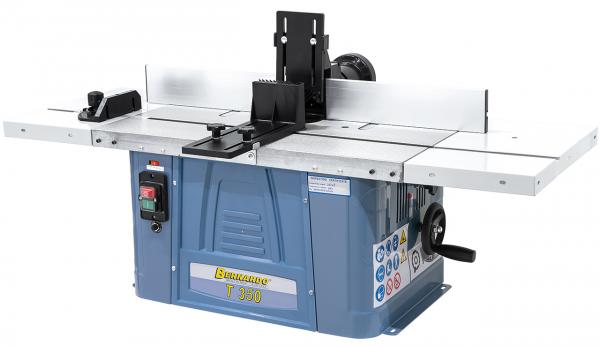

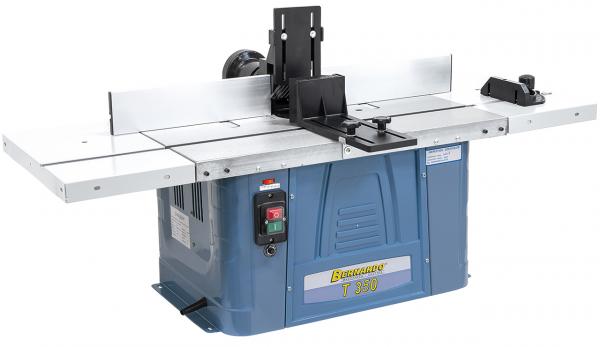

Bernardo bench milling machine T350 230V
Product features Bernardo T350 230V table milling machine
The compact T 350 table milling machine is equipped as standard with infinitely variable speed control and a table extension on both sides. This model is mainly used by professional do-it-yourselfers.

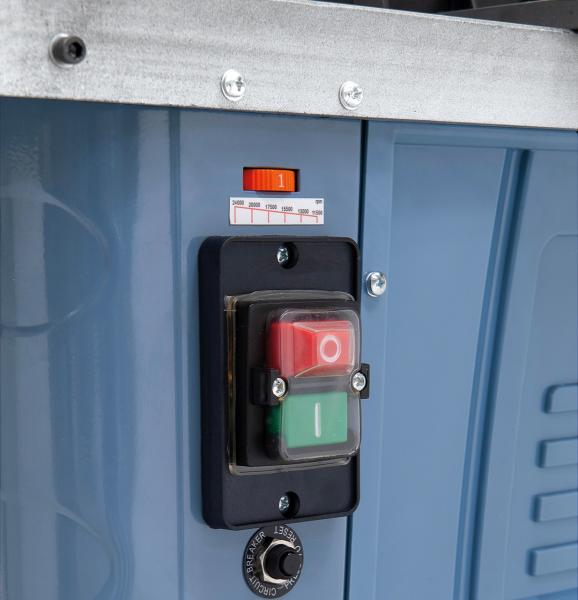

- Electronically infinitely variable drive for precise working results (11,500 - 24,000 rpm)
- Solid milling protection bonnet with suction connection 100 mm
- Dynamically balanced milling spindle for precise running
- Table extension on both sides as standard for positioning larger workpieces

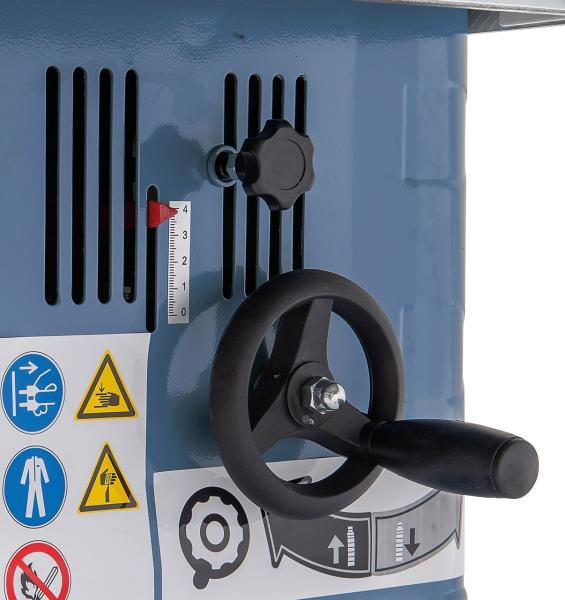

- Height adjustment of the milling spindle by means of hand wheel, readable via scale
- Optimum price-performance ratio for hobbyists and do-it-yourselfers
- Scales incorporated in the worktable for exact positioning of the router protection hood
- The router protection bonnet is equipped with anodised aluminium stop rails
Scope of delivery Bernardo T350 230V table milling machine
- Collets 6 / 6.35 / 8 / 12 / 12.7 mm

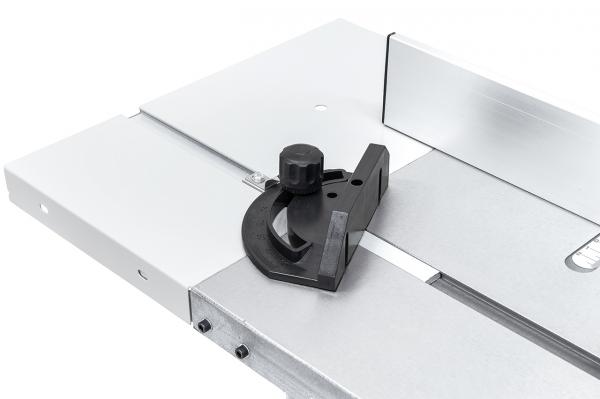

- Mitre fence
- Protection and pressure device
- Table extension on both sides
Technical data Bernardo T350 230V table milling machine
Table dimension | 610 x 360 mm |
Table extension left/right | 210 x 360 mm |
Working height | 315 mm |
Height adjustment of the spindle | 40 mm |
Max. Tool diameter | 50 mm |
Milling table opening | 32 / 47 / 55 mm |
Spindle speed | 11,500 - 24,000 rpm |
Suction connection Ø | 100 mm |
Motor output power S1 100% | 1, 5 kW (2,0 HP) |
Motor input power S6 40% | 2.1 KW (2.8 HP) |
Voltage | 230 V |
Machine dimension (W x D x H) | 1030 x 500 x 515 mm |
Weight approx. | 29 kg |
