The solid drilling maschine BM 20 T with V-belt drive feature high torque at low speed. This model is predominantely used by craftsmen or training workshops.
Features Bernardo Bench Drilling Machine BM 20 T - 230 V
- Digital display for spindle stroke and LED-lamp come standard

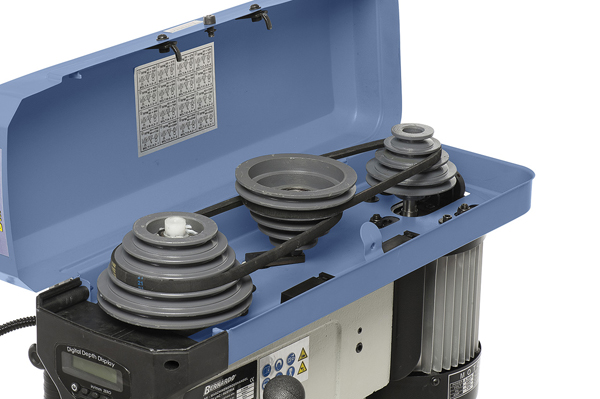

- Grey cast iron pulleys ensure smooth run
- High-quality ball bearings ensure high spindle concentricity
- Large drill table features diagonal T-slots
- Drill table tilts (±45°), gear rack allows height adjustment
- High performance aluminium motor in accordance with the IP 54 standard
- Complete with high-quality keyless drill chuck
- Polished machine base features T-slots
- Clearly arranged handles ensure high comfort when working
Standard accessories Bernardo Bench Drilling Machine BM 20 T - 230 V
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 2 / B 18
- Digital spindle stroke indication
- LED machine light
- T-slot nuts
- Height adjustable protective cover
- Tools
Technical specifications Bernardo Bench Drilling Machine BM 20 T - 230 V
|
Drilling capacity steel |
20 mm |
|
Drill chuck |
1 - 16 mm / B 18 |
|
Morse taper |
MT 2 |
|
Spindle speed |
(16) 180 - 2770 rpm |
|
Distance spindle to column |
160 mm |
|
Drilling table tiltable |
-45° to +45° |
|
Distance spindle to table max. |
440 mm |
|
Distance spindle to base |
630 mm |
|
Spindle stroke |
80 mm |
|
Column diameter |
72 mm |
|
Table size / T-slot size |
285 x 285 mm / 16 mm |
|
Working surface of base |
200 x 190 mm |
|
Motor power output S1 100% |
0,55 kW / 230 V |
|
Motor power input S6 40% |
0,80 kW / 230 V |
|
Machine dimension (W x D x H) |
400 x 590 x 980 mm |
|
Weight approx. |
45 kg |
