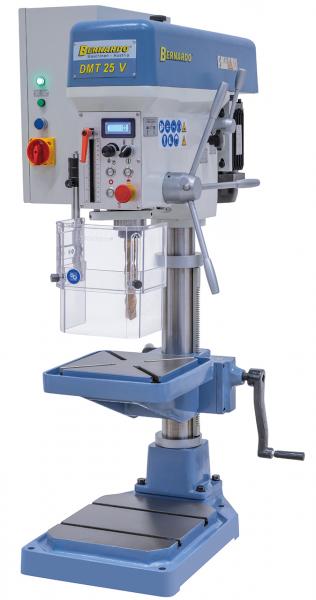

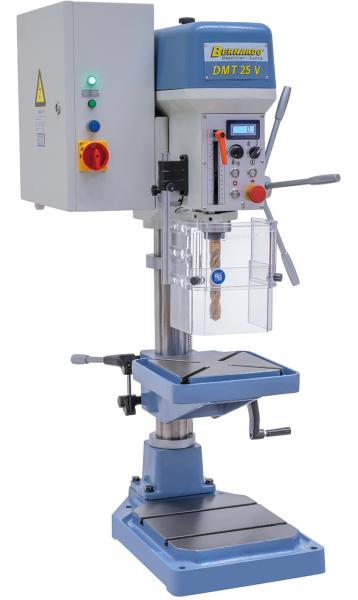

Bernardo bench drill DMT 25 V

Product No.:
01-11864
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
189 kg per piece
2.570,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Scope of delivery Bernardo bench drill DMT 25 V

  • Gear rim drill chuck 5 - 20 mm / B 22
  • Drill chuck arbour MK 3 / B 22
  • Digital speed display
  • Reducing sleeve MK 3 / MK 2
  • Tapping attachment
  • LED machine light
  • Height-adjustable protective cover


Technical data Bernardo bench drill DMT 25 V

Drilling capacity max. 25 mm
Thread cutting max. M 20
Morse taper MK 3
Spindle speed, infinitely variable 100 - 620 / 620 - 3300 rpm
Projection 240 mm
Distance spindle / table max. 355 mm
Spindle / base plate distance 670 mm
Quill stroke 135 mm
Column diameter 85 mm
Table size / T-slot size 252 x 252 mm / 14 mm
Worktop base plate 365 x 305 mm
Motor output power S1 100% 1,1 kW / 400 V
Motor power consumption S6 40% 1,5 kW / 400 V
Machine dimensions (W x D x H) 550 x 820 x 1280 mm
Weight approx. 189 kg
