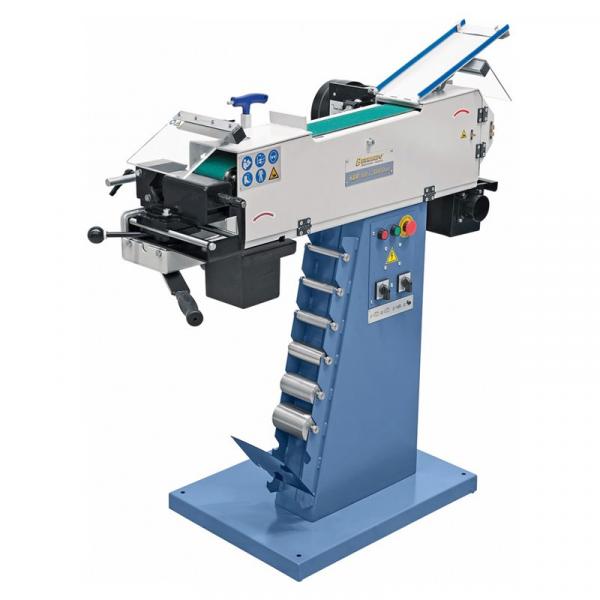

Bernardo Belt Grinding Machine KBR 100 x 2000 Duo
Product Highlights Bernardo Belt Sander KBR 100 x 2000 Duo
The KBR 100 x 2000 DUO is a multifunctional grinding machine for pipe and profile end grinding on the front side, for grinding edges, surfaces and for cylindrical grinding on the back side as well as for surface grinding on the top side of the machine.
- Constant belt tension due to spring-loaded tensioning device

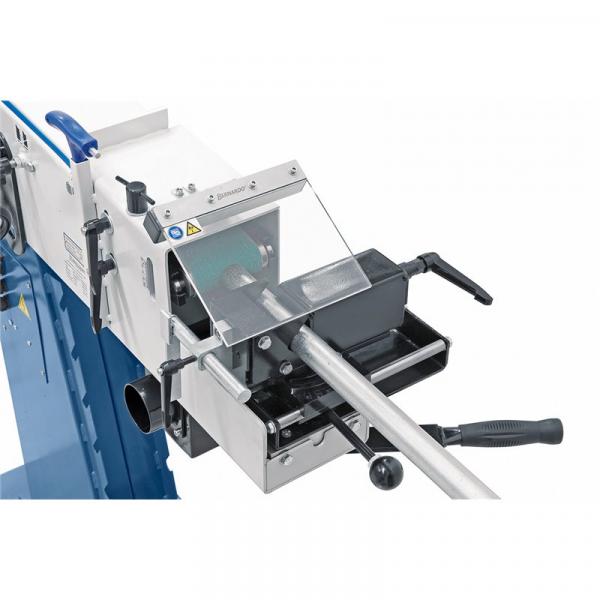

- Circular sanding device for sanding diameters from 20 - 76 mm as standard
- Quick and easy adjustment of the desired sanding angle
- Graphite coating on the surface increases the gliding properties of the abrasive belt
- Large dimensioned plane sanding surface with protective cover
- Slow belt speed (15 m/sec.) ideal for grinding stainless steel and aluminium
- User-friendly belt change, fast and uncomplicated
- Quick and easy change of grinding rollers without tools
- Various grinding angles from 30° to 90° possible without problems
- Shorter processing times compared to milling
Scope of delivery Bernardo Belt sander KBR 100 x 2000 Duo
- Sanding belt K 36
- Rubberised sanding roller
- 1 pc. sanding roller for 1 1/4" tube (42/44 mm tube)
- 2 pcs. Hinged protective discs
- Sanding and support table
- 2 x dust extraction nozzles diam. 75 mm
- 2 pcs. chip collector
- Graphite coating
- Motor protection switch
Technical data Bernardo Belt sander KBR 100 x 2000 Duo
| Belt dimension | 100 x 2000 mm |
| Belt speed | 15 / 30 m/sec. |
| Grinding diameter | 20 - 76 mm |
| Slide adjustment | 30° - 90° |
| Surface grinding table | 400 x 100 mm |
| Contact wheel Ø x B | 195 x 100 mm |
| Suction connection Ø | 2 x 75 mm |
| Speed | 1420 / 2660 rpm |
| Engine power | 2,5 / 3,3 kW (400 V) |
| Machine dimension (W x D x H) | 750 x 1400 x 1200 mm |
| Weight approx. | 148 kg |
