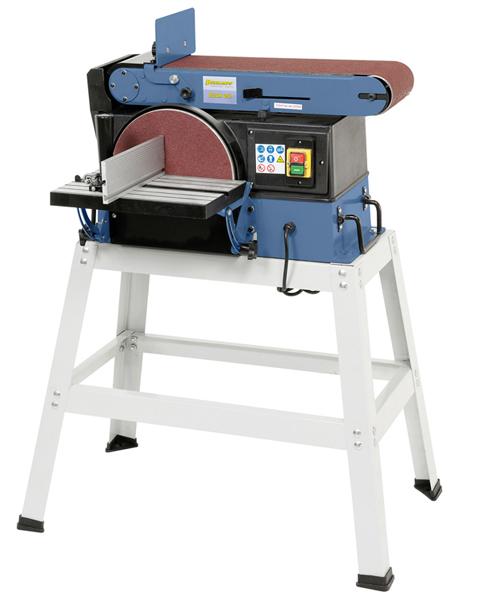

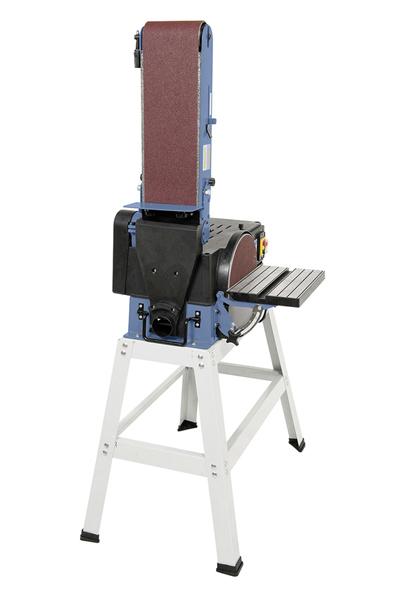

Bernardo belt and disc sanding machine BDSM 250
Properties Bernardo belt and disc sanding machine BDSM 250
- Support table with guiding on both sides, features T-slot for mitre fence
- Quick clamping device allows for easy and straightforward sanding belt change
- Continuous surface grinding support for grinding of long workpieces
- Graphite coating on surface grinding support ensures better sliding of sanding belt
- Universal in use for sanding of edges, surface and round grinding
- Clamping device with springs guarantees consistent belt tension

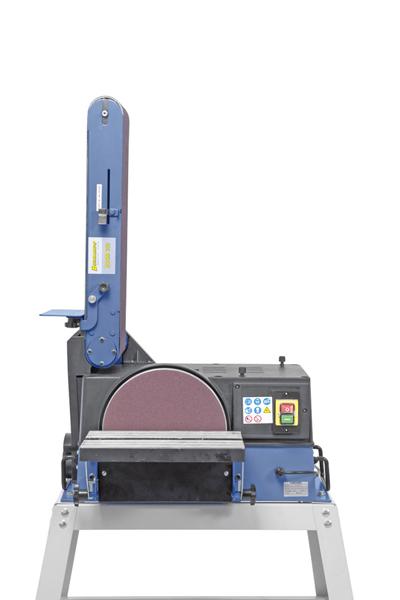

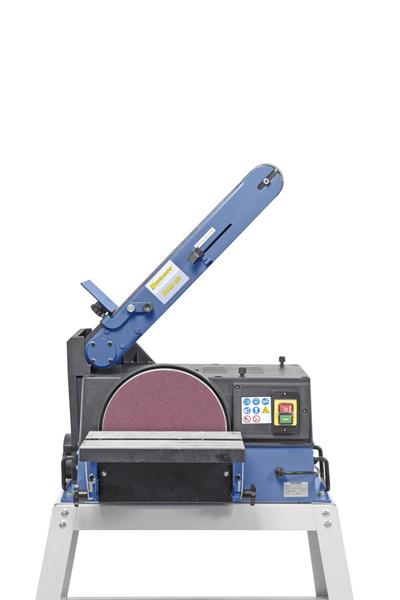

- Short conversion times from vertical to horizontal operation
- Solidly constructed, torsion-free machine housing keeps vibrations to a minimum
Standard accessories Bernardo belt and disc sanding machine BDSM 250:
- Sanding belt 1220 x 150 mm - grit 80
- Sanding disc diam. 250 mm - grit 100
- Hook and loop fastener diam. 250 mm
- Mitre fence
- Fence at belt sanding table
- Graphite coating
- Dust extraction outlet
- Stand
Technical specifications Bernardo belt and disc sanding machine BDSM 250:
|
Sanding belt |
1220 x 150 mm |
|
Belt sanding table |
385 x 165 mm |
|
Belt sanding table tiltable |
0° to 90° |
|
Sanding disc diam. |
250 mm |
|
Sanding disc table |
310 x 200 mm |
|
Sanding disc table tiltable |
0° to 45° |
|
Belt speed |
8,5 m/sec |
|
Dust extraction outlet |
60 mm |
|
No load speed |
1400 rpm |
|
Motor power output S1 100% |
0,75 kW |
|
Motor power input S6 40% |
1,0 kW |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
800 x 600 x 1040 (1440) mm |
|
Weight approx. |
47 kg |
