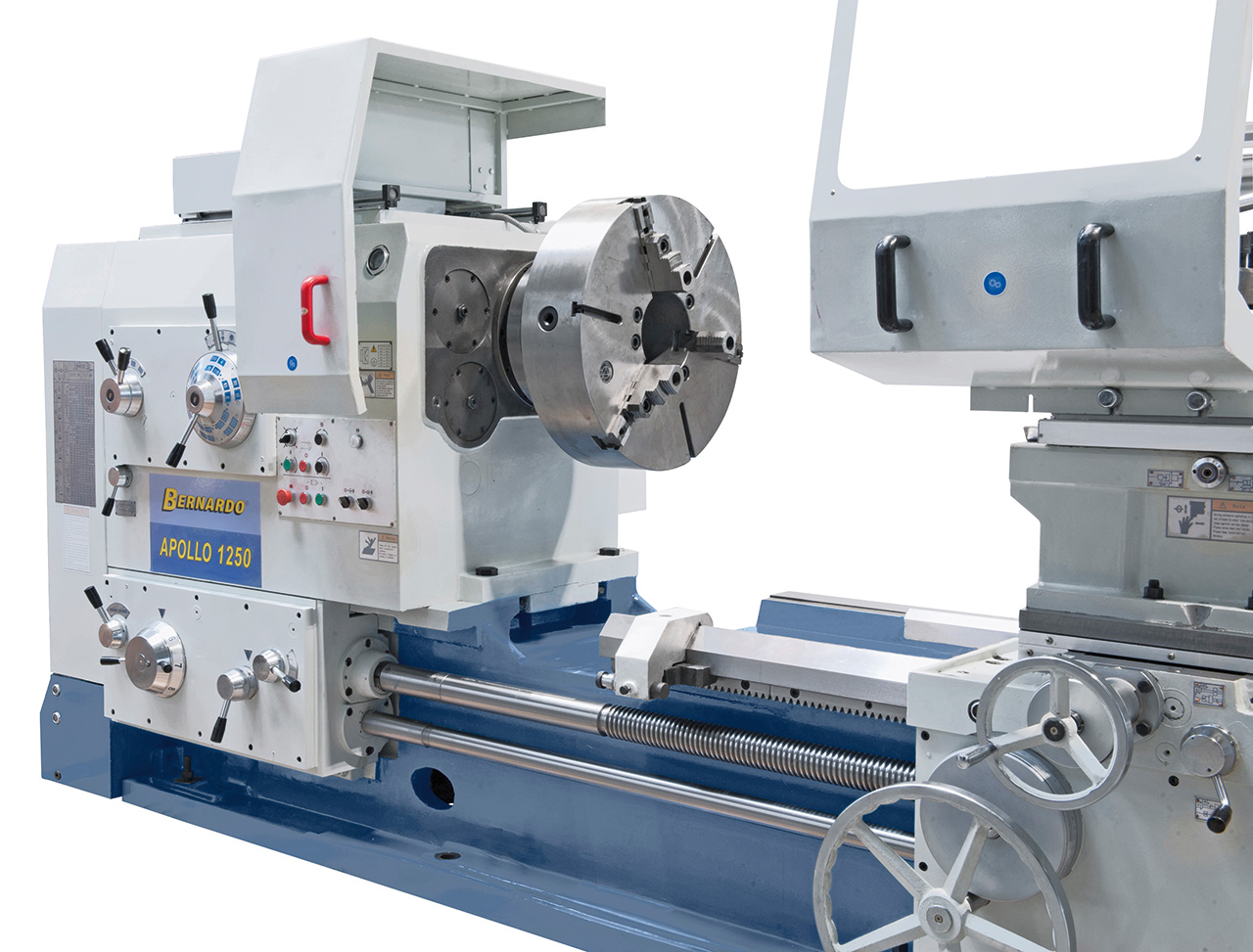

Bernardo APOLLO 2000 x 2000 heavy duty lathe

Features Bernardo APOLLO 2000 x 2000 heavy duty lathe

The bed is provided with strong ribs to stiffen the bed guide and to minimize the influence of vibrations
The transmission of the rotary motion (forwards / backwards) is effected via a drive shaft with hydraulic coupling
The gear wheels are largely dimensioned, hardened and precision ground
The closed gear box allows a large number of feeds and thread pitches
Wide speed range with 33 speeds for machining a wide variety of workpieces
Soft start of the main spindle by the mechanical multi-disc clutch
The large dimension guideways are induction hardened and ground

Top of the range	2000 mm
Turning diameter
abed	2000 mm
via support	1600 mm
Travels
x-axis	1020 mm
z-axis	1800 mm
z1-axis	200 mm
Max. workpiece weight	10,000 kg
Bed width	1100 mm
Swivel range top slide	± 180°
Spindle speeds (forward / backward)	(21) 2 - 200 / (12) 2.5 - 200 rpm
Spindle bore	130 mm
Spindle mount	ISO A2-15
Feed
x-axis \| z-axis \| z1-axis	0.064 - 12 mm/rev \|0.032 - 6 mm/rev \| 0.016 - 3 mm/rev
Rapid traverse
x-axis \| z-axis	1870 mm/min \| 3740 mm/min
Thread cutting
metric \| diametric	(45) 1 - 120 mm \| (42) 30 - 1/4 DP
Modul \| whitworth	(46) 0.5 - 60 mm \| (48) 0.5 - 60 GPZ
Tailstock quill cone / Ø	MK 6 / 200 mm
Tailstock quill stroke	300 mm
Tailstock cross adjustment	± 2.5 mm
Engine power	30 kW
length x width	5.2 x 2.2 m
Height	2.4 m
Weight approx.	13,000 kg
