BBS550400V Holzmann Bloch bandsaw

Product Highlights BBS550400V Holzmann Blochbandsäge​

• Professional hole band saw with 4,6m roller conveyor
• The BBS 550 is ideal for cutting soft, hard, dry or frozen wood or wooden prisms with a length according to the machine construction.
• The maximum cutting length depends on the extension elements
• All types of wood can be cut with the same saw blade.
• robust and vibration-free construction
• minimum maintenance effort
• simple operation
• solid precision cast iron impellers
• Precision guides
• Eccentric clamps

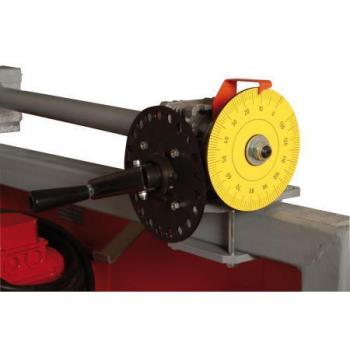

• manual cutting height adjustment
• manual feed
• 3,7 m cutting length basic version
• supplied with 4,6m runway

Technical data BBS550400V Holzmann Blochbandsäge​

• Motor power S1 in W: 3000
• Motor power S6 in W: 4000
• voltage: 400V

• Installation dimensions in mm: 1750x1450-1660x4600
• Gross weight in kg: 405

• max. cutting length 90° in mm: ∞
• max. cutting depth 90° in mm: 220

• Impeller diameter in mm: 400
• max. saw band stroke in mm: 540
• max. trunk diameter in mm: 550
• max. board width in mm: 530
• Extension section in m: 2.3
• kerf in mm: 1.5-2.2
• saw blade in mm: 3200x27x0,9
• Saw band speed in m/min: 900
