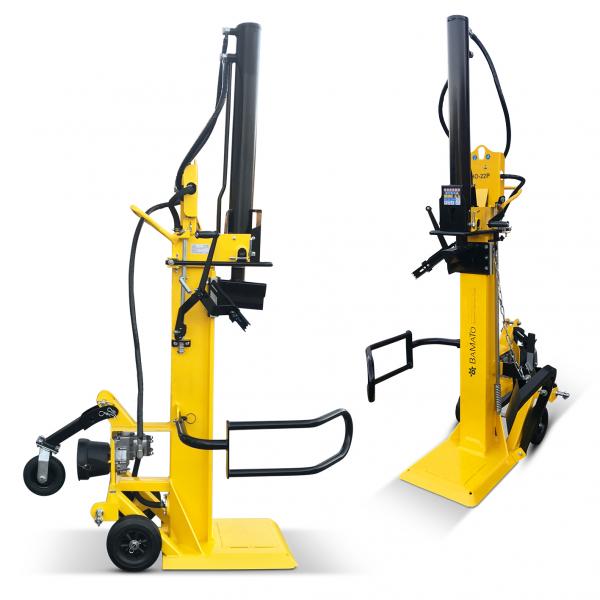

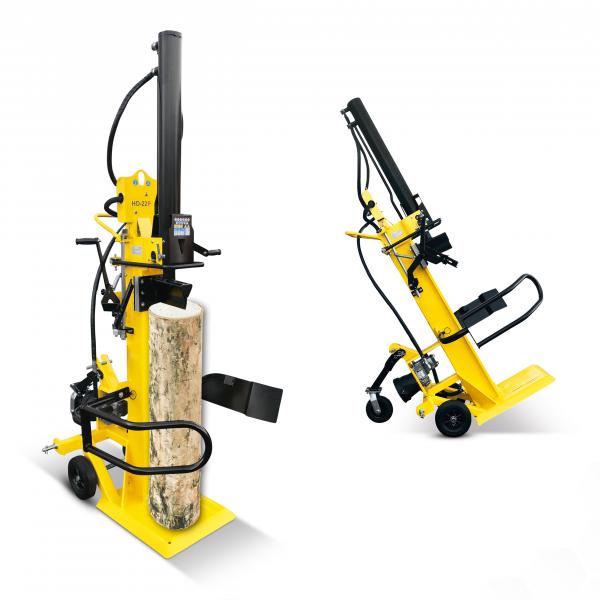

BAMATO Wood splitter with PTO drive HO-22P

Product Highlights BAMATO Wood Splitter with PTO Drive HO-22P​

The BAMATO HO-22P has a pure PTO drive. The perfect solution for powerfully splitting hardwood or softwood up to 1100 mm long. The included log lifter and deep base plate make effortless lifting of heavy logs quick and easy. The 2 speed levels ensure fast progress.

• Log lifter for lifting logs up to 1100 mm in size (hardwood and softwood).
• Splits 22 tons
• Two forward speeds adjustable (slow and fast)
• Incl. three-point hitch for tractor
• Cardan shaft drive
• Incl. lateral holding arm for fixing timber
• Torsion-resistant and robust steel construction
• Splitting stroke infinitely variable

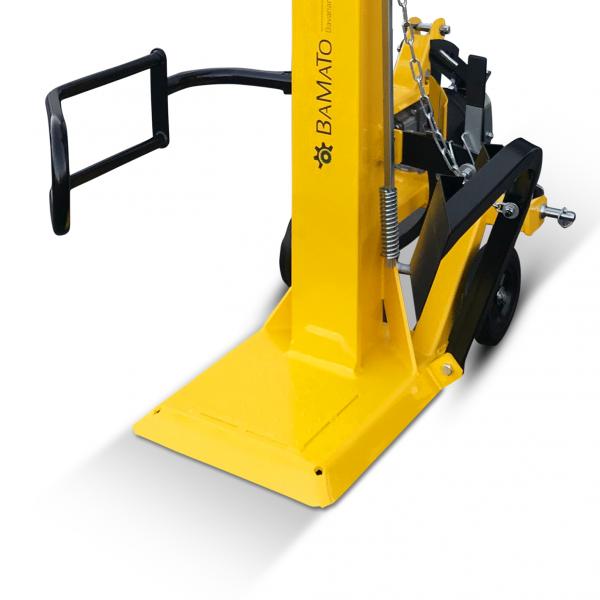

• Low base plate for easy insertion of logs
• Safety operation according to latest standard

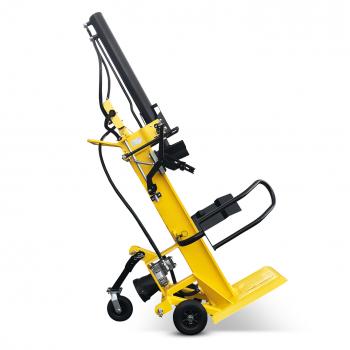

• Extremely space-saving due to lowerable cylinder and foldable holding arms

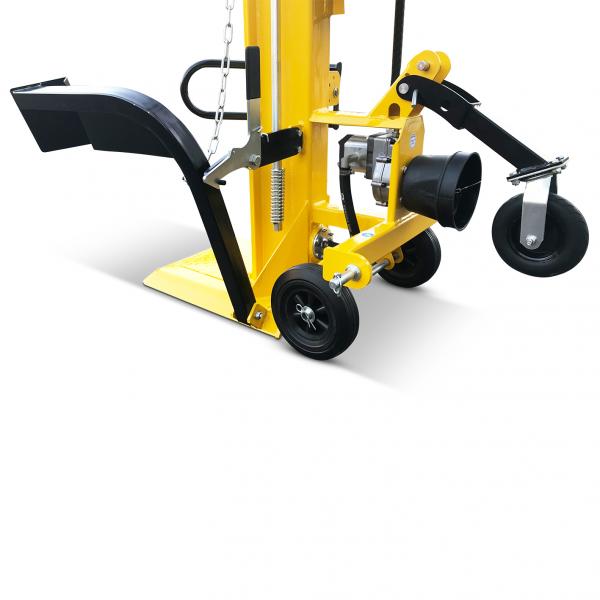

• Ideal for easy transport due to chassis and rotating support wheel
• Pre-filled with hydraulic oil​

Technical Details BAMATO Wood Splitter with PTO Drive HO-22P​

• Drive: PTO drive
• Tractor power requirement: min. 20 hp
• PTO shaft speed: 540 rpm.
• Hydraulic oil in litres: 24
• Hydraulic pressure: 24.73 MPa
• Forward speed: 4.3 / 10.5 cm/s
• Reverse speed: 7.5 cm/s
• max. splitting length in mm: 1100
• max. splitting diameter in mm: 350
• max. splitting stroke in mm: 948
• splitting force: 22 tons
• Installation dimensions in mm: 1050 x 1700 x 2500
• Sound pressure level in dB(A): 80
• Length of packaging in mm: 940
• Width of packaging in mm: 680
• Height of packaging in mm: 2000
• Shipping weight in kg: 299

Scope of delivery BAMATO log splitter with PTO drive HO-22P​

• incl. undercarriage,
• lateral support arm,
• log lifter,
• support wheel and
• German operating instructions

The HO-22P log splitter is a quality product of the BAMATO - Bavarian Machine Tools brand!
