BAMATO Wood splitter with electric drive HO-14E

Product Highlights BAMATO Wood Splitter with Electric Drive HO-14E​

The BAMATO log splitter with 14 tons splitting power is the ideal solution for comfortable and safe splitting of metre-long logs. The HO-14E is a powerful machine with 2 splitting speeds, log lifter, undercarriage and a support wheel with swivel joint.

• Log lifter for lifting logs up to 1040 mm in size (hardwood and softwood).
• Splits 14 tons
• Two forward speeds adjustable (slow and fast)
• Chassis for mobile work
• 400V electric drive with phase inverter
• Incl. lateral holding arm to fix the wood in place
• Torsion-resistant and robust steel construction
• Splitting stroke infinitely variable
• Low base plate for easy insertion of logs
• Safety operation according to latest standard

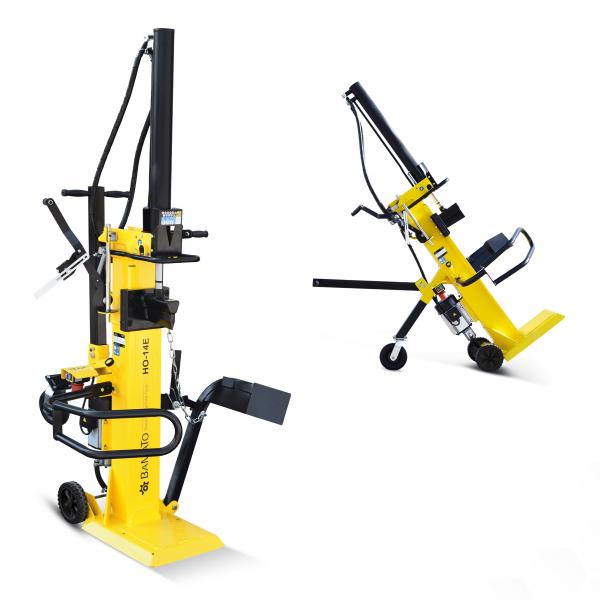

• Extremely space-saving due to lowerable cylinder and foldable holding arms

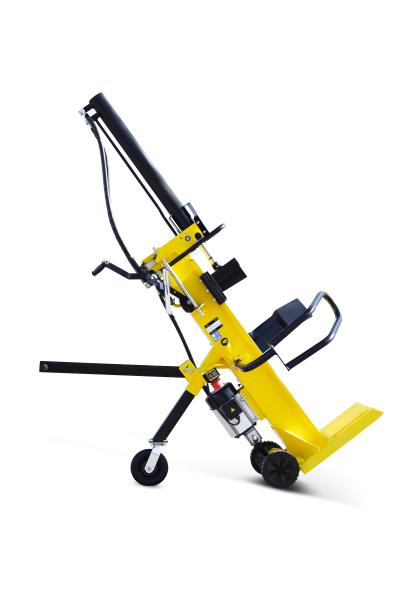

• Ideal for easy transport due to drawbar and rotating support wheel

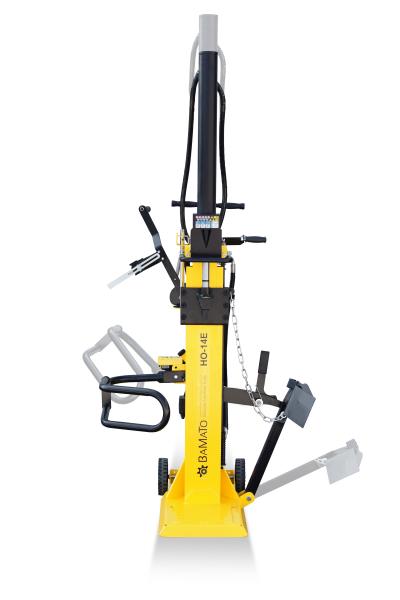

• Cylinder can be completely lowered for transport / storage
• Pre-filled with hydraulic oil​

Technical Details BAMATO Wood Splitter with Electric Drive HO-14E​

• Drive: Electric motor
• Phase inverter: Yes
• Hydraulic oil in litres: 7.5
• Hydraulic pressure: 24.60 MPa
• Forward speed: 4.2 / 21.8 cm/s
• Reverse speed: 5.2 cm/s
• Max. splitting length in mm: 1040
• max. splitting diameter in mm: 100 - 300
• max. splitting stroke in mm: 850
• splitting force: 14 tons
• Motor power S6 in Watt: 3500 (40%)
• Voltage: 400V / 50Hz
• Protection class: IP54
• Installation dimensions in mm: 1000 x 1120 x 2280
• Sound pressure level in dB(A): 80
• Length of packaging in mm: 775
• Width of packaging in mm: 500
• Height of packaging in mm: 1700
• Weight of machine in kg: 184,90
• Shipping weight in kg: 195

Scope of delivery BAMATO log splitter with electric drive HO-14E​

• incl. undercarriage,
• lateral support arm,
• drawbar,
• log lifter,
• support wheel and
• German operating instructions

The HO-14E log splitter is a quality product of the BAMATO - Bavarian Machine Tools brand.
