BAMATO Wood splitter with electric drive HO-12PRO

Product Highlights BAMATO Wood Splitter with Electric Drive HO-12PRO

The BAMATO HO-12PRO log splitter reliably and safely offers a splitting force of up to 12 tonnes. With a massive 190 x 85 mm splitting wedge, pieces of wood with a length of up to 1070 mm and a diameter of up to 450 mm can be processed. The log splitter effortlessly splits hard and soft wood and offers an optimal combination of power and efficiency. The patented splitting technology and the Vario splitting system make the HO-12PRO a universally applicable log splitter with which various wood sizes can be processed safely and quickly.

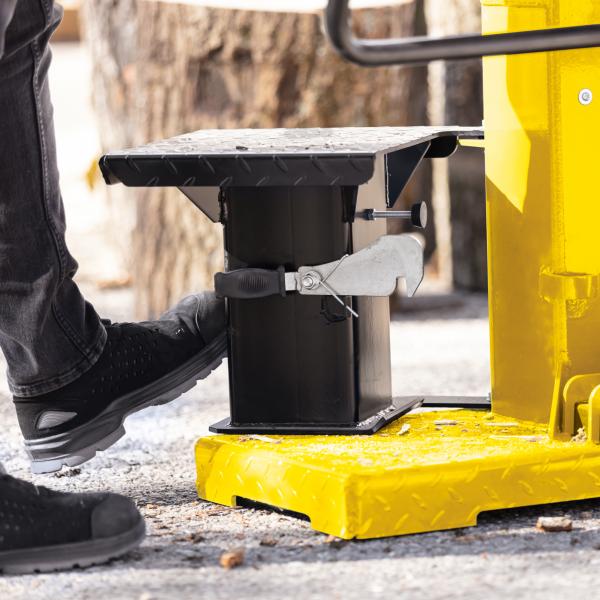

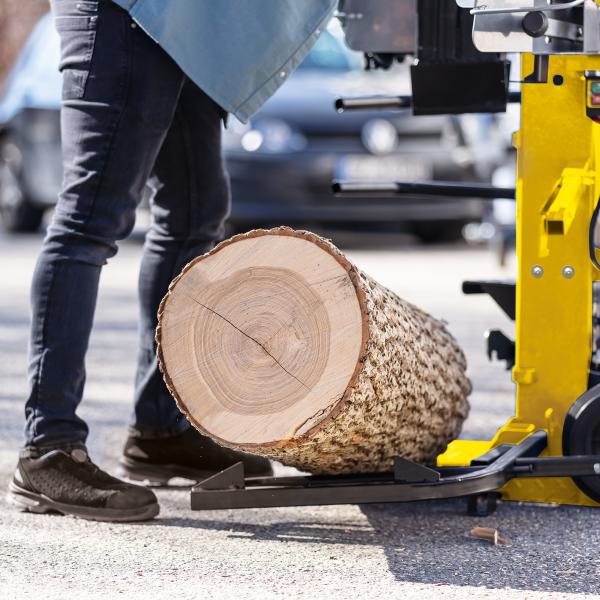

The pivoting splitting table provides two working heights and the ingenious catching brackets ensure safe operation and optimum results. The integrated log lifter also makes it easier to set up large logs. If you are looking for a robust, reliable log splitter with many functions - then the HO-12PRO is the perfect choice.

• Patented splitting technology with powerful 12 to splitting force
• Powerful 400 V motor with phase inverter
• Splitting stroke infinitely variable
• Particularly compact - for easy storage
• Vario splitting system with swivelling splitting table
• 3 large transport wheels for mobile working
• Only 1080 mm machine height when retracted - extremely space-saving
• Torsion-resistant and particularly tip-proof construction
• With catching bow and log lifter for perfect handling
• Splits hardwood and softwood up to 1070 mm in length effortlessly and reliably
• Max. Max. splitting diameter 450 mm
• Pre-filled with hydraulic oil

Scope of delivery BAMATO log splitter with electric drive HO-12PRO

• incl. undercarriage, lateral catching brackets, log lifter, swivelling splitting table and German operating instructions

Technical data BAMATO log splitter with electric drive HO-12PRO

• Drive via: Electric motor
• Hydraulic pressure: 24.0 MPa
• Hydraulic oil: HLP46
• Hydraulic oil volume: 7.0 litres
• Max. Splitting diameter: 120 - 450 mm
• Max. Splitting stroke: 550 mm
• Max. Splitting length: 1070 mm
• Motor power: 3500 Watt (S6 40%)
• Phase inverter: Yes
• Reverse speed: 12.8 cm/s
• Protection class: IP54
• Swivel table height: 320 mm
• Splitting force: 12 tons
• Voltage: 400 V / 50 Hz
• Forward speed: 3.8 cm/s

Machine dimensions

• Width: 960 mm
• Height: 1100 mm (retracted) | 1650 mm (extended)
• Length: 1160 mm
• Weight machine (kg): 191
• Weight with packaging (kg): 204

Noise emission

• Sound pressure level: 89.60 dB(A)
• Sound power level: 102.60 dB(A)

Shipping details

• Number of packages: 1
• Width of the packaging: 440 mm
• Height of the package: 1210 mm
• Length of packaging: 770 mm
• Shipping weight: 204,00 kg
• Mode of dispatch: forwarding agent
