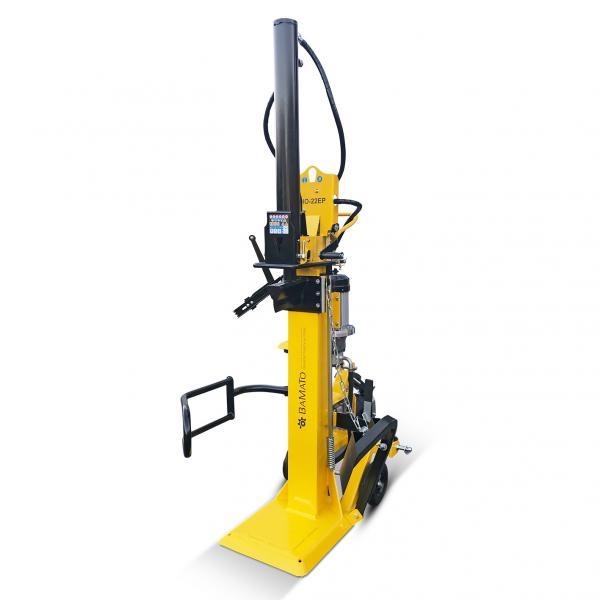

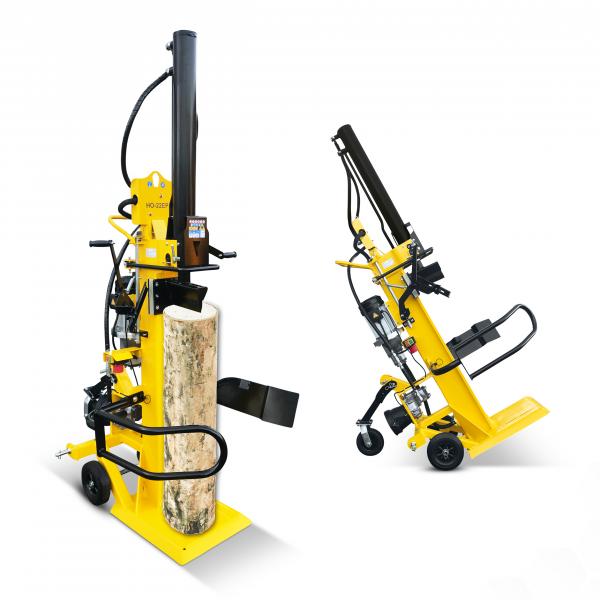

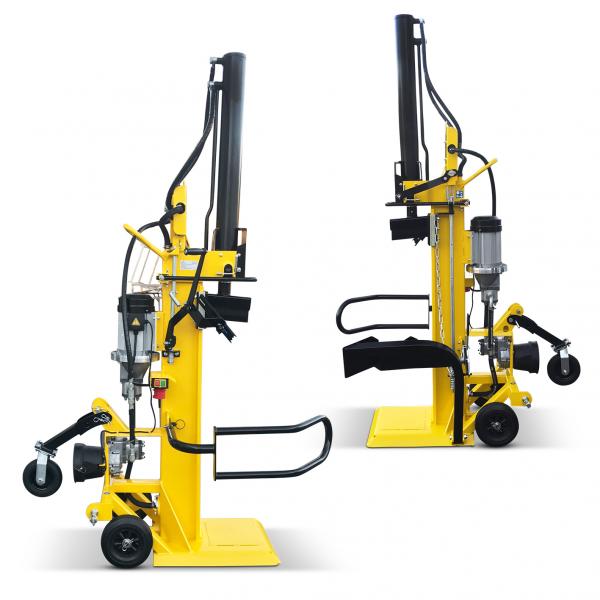

BAMATO Wood splitter with electric and PTO drive HO-22EP

Product Highlights BAMATO Wood Splitter with Electric and PTO Drive HO-22EP​

The BAMATO HO-22EP has a dynamic 400V electric and cardan shaft drive. It has enough power to split even the hardest woods in no time. Thanks to this powerful combination, hardwoods or softwoods with a length of up to 1100 mm can be processed almost effortlessly. Problem-free and flexible use is thus guaranteed even in the forest. The included log lifter and the deep base plate make lifting heavy logs quick and easy.

• Log lifter for lifting logs up to 1100 mm in size (hardwood and softwood).
• Splits 22 tons
• Two forward speeds adjustable (slow and fast)
• Incl. three-point hitch for tractor
• Electric drive 400V with phase inverter and cardan shaft drive
• Incl. lateral holding arm for fixing the wood
• Torsion-resistant and robust steel construction
• Infinitely adjustable splitting stroke
• Low base plate for easy insertion of logs
• Safety operation according to latest standard
• Extremely space-saving due to lowerable cylinder and foldable holding arms

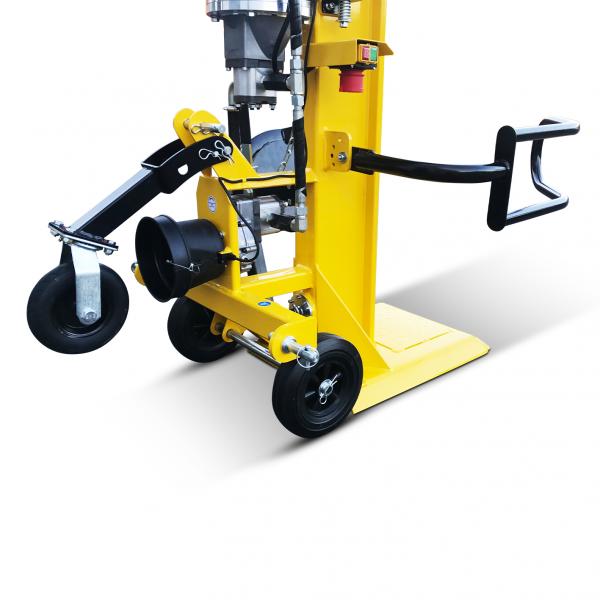

• Ideal for easy transport due to chassis and rotating support wheel
• Pre-filled with hydraulic oil​

Technical Details BAMATO Wood Splitter with Electric and PTO Drive HO-22EP​

• Drive: electric motor and PTO drive
• Tractor power requirement: min. 20 hp
• PTO shaft speed: 540 rpm
• Phase inverter: Yes
• Hydraulic oil in litres: 24
• Hydraulic pressure: 24.73 MPa
• Forward speed: 4.3 / 10.5 cm/s
• Reverse speed: 7.5 cm/s
• Max. splitting length in mm: 1100
• max. splitting diameter in mm: 350
• max. splitting stroke in mm: 948
• splitting force: 22 tons
• Motor power S6 in Watt: 5100 (40%)
• Voltage: 400V / 50Hz
• Protection class: IP54
• Installation dimensions in mm: 1050 x 1700 x 2500
• Sound pressure level in dB(A): 80
• Length of packaging in mm: 940
• Width of packaging in mm: 680
• Height of packaging in mm: 2000
• Shipping weight in kg: 333

Scope of delivery BAMATO log splitter with electric and PTO drive HO-22EP​

• incl. undercarriage,
• lateral support arm,
• log lifter,
• support wheel and
• German operating instructions
