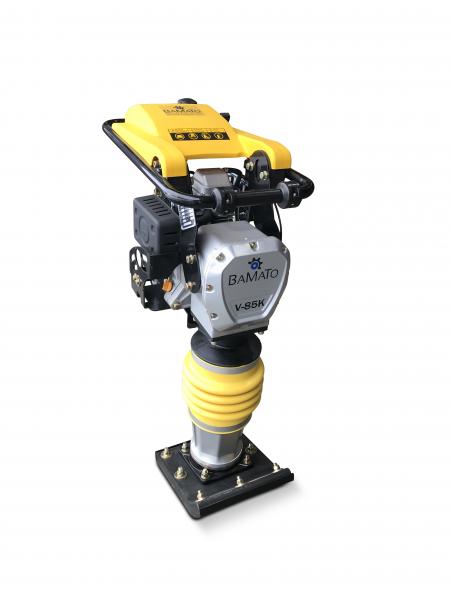

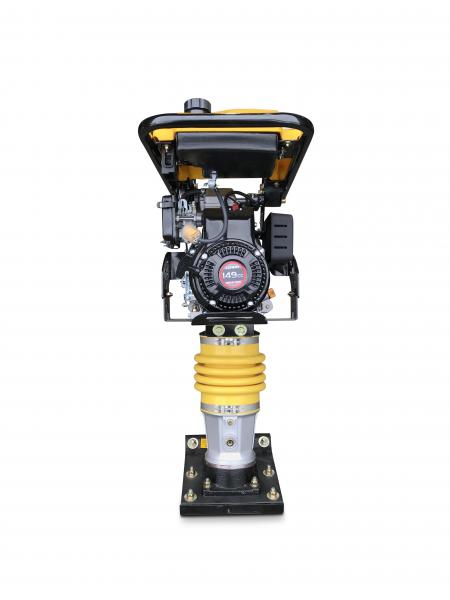

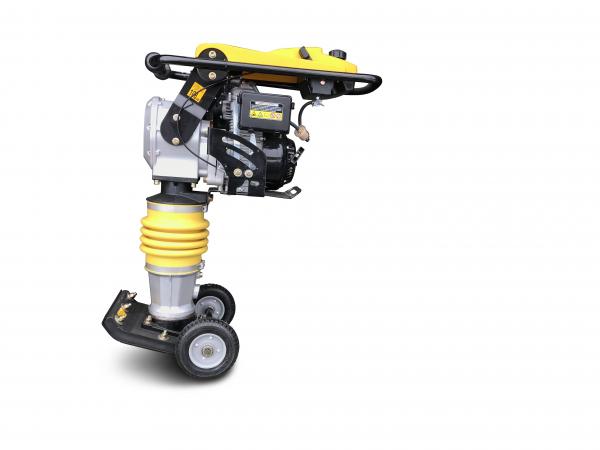

BAMATO Vibratory Tamper V-85K with undercarriage

Product Highlights BAMATO Vibratory Tamper V-85K with undercarriage​

• The BAMATO Vibratory Tamper V-85K is equipped with a powerful 4-stroke engine.
• A solid steel frame and side impact protection protects the engine when working in narrow trenches

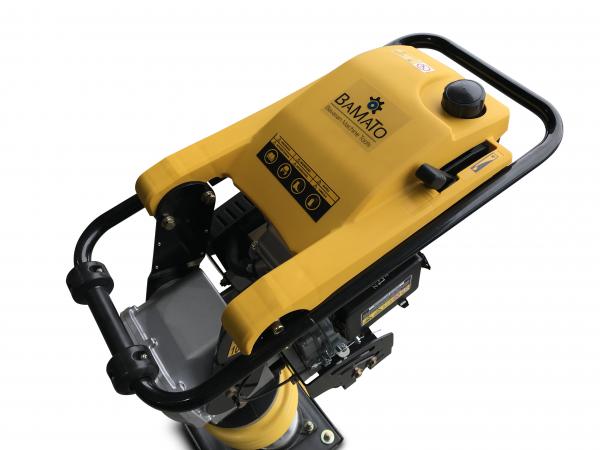

• A robust plastic cover additionally protects the engine and tank from above
• The compact design allows perfect handling even in a tight working environment
• The V-85K can be used to compact a wide variety of materials (e.g. sand, earth, gravel)
• Suitable for cable construction, trench compaction, roadbed work, foundation work, etc.
• The massive steel frame allows you to lift the tamper easily and without problems, for example into a trench
• With an overall width of only 345 mm, the V-85K is one of the most compact rammers on the market
• Sturdy and robust tamping footplate
• Hard-wearing and durable bellows

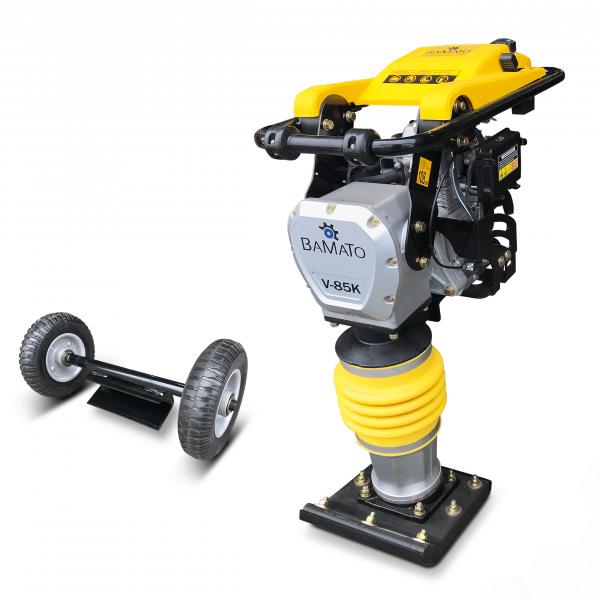

• Chassis with large transport wheels included​

Technical details BAMATO Vibratory Tamper V-85K with undercarriage​

• Engine: 1-cylinder OHV engine
• Engine type: 4-stroke engine for unleaded petrol
• Displacement: 149 cm³
• Power output: 3.6 kW
• Operating speed: 3600 rpm
• Starting system: Reversing starter
• Tank capacity: 2.8 litres
• Padfoot plate: 285 x 340 mm
• Padfoot plate thickness: 38 mm
• Advance speed: 11 - 14 m/min.
• Stroke rate: 450 - 650 1/min.
• Stroke at tamping plate: 40 - 65 mm
• Compaction pressure: 10 kN
• Sound power level: 108 dB(A)
• Dimensions L/W/H: 695 x 345 x 1080 mm
• Weight machine 77 kg
• Weight with packaging 85 kg
