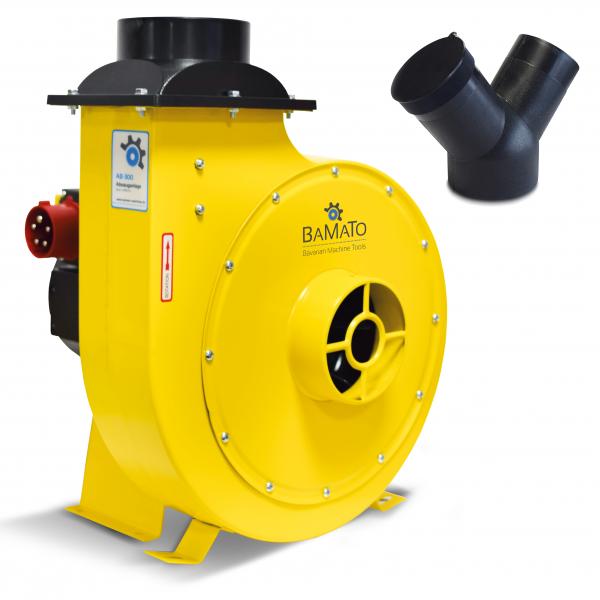

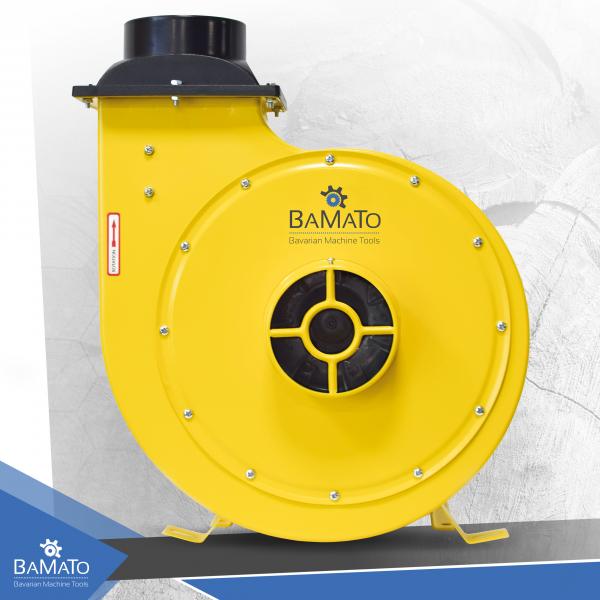

Product Highlights BAMATO Centrifugal Fan AB-300
- The BAMATO centrifugal fan AB-300 is equipped with a balanced metal fan wheel.
- With integrated bracket for mounting on wall or ceiling
- Thanks to the 100mm Y-adapter this machine is compatible with most woodworking machines
- An extraction capacity of 2530m³/h ensures clean working conditions at the workplace
- Sturdy and robust metal housing with powder coating
- Optimal for extracting wood dust, wood chips or planing chips etc.

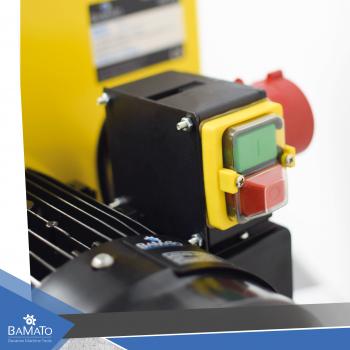

- Powerful and efficient 400V motor
- incl. Y-adapter, adapter square / round, bracket for wall and ceiling mounting
Technical details BAMATO centrifugal fan AB-300
- Motor power S1 in Watt: 1500
- Voltage: 400 V / 50 Hz
- Fan wheel design: metal
- Length in mm: 450
- Width in mm: 410
- Height in mm: 530
- Extraction capacity in m³/h: 2530
- Air impeller diameter in mm: 300
- Vacuum in Pa: 1950
- Exhaust connection: 1 x 130 mm / 2 x 100 mm
- Outlet diameter: 125 mm
- Weight of machine in kg: 23
- Packing dimensions in mm: 670 (L) / 580 (W) / 540 (H)
- Shipping weight in kg: 28
The AB-300 centrifugal fan is a quality product of the brand BAMATO - Bavarian Machine Tools!
