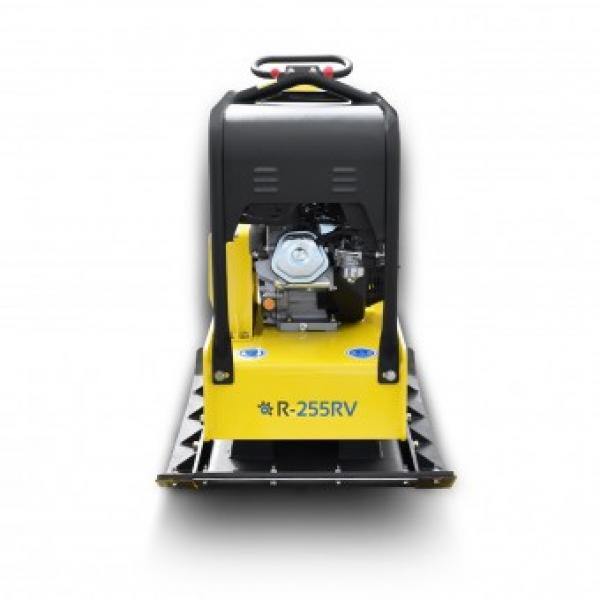

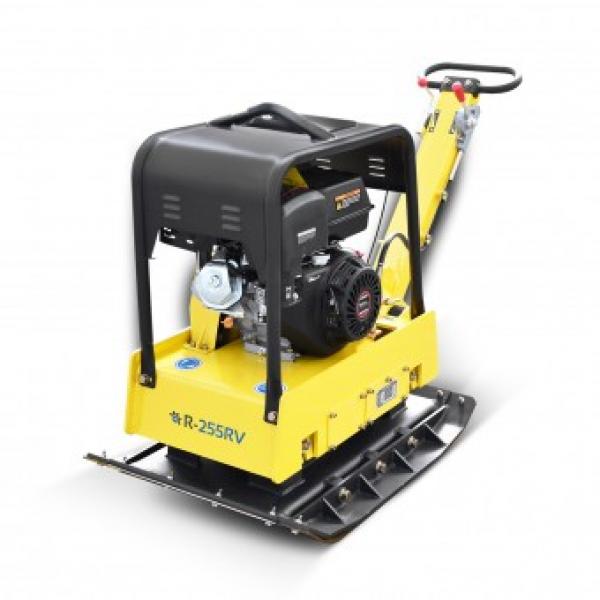

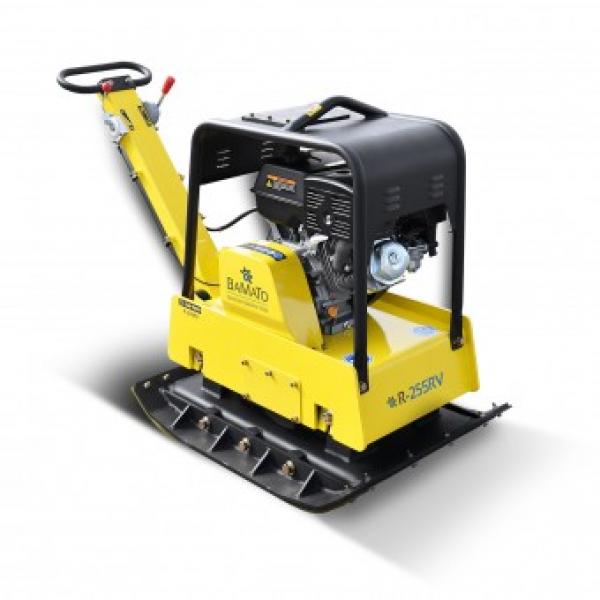

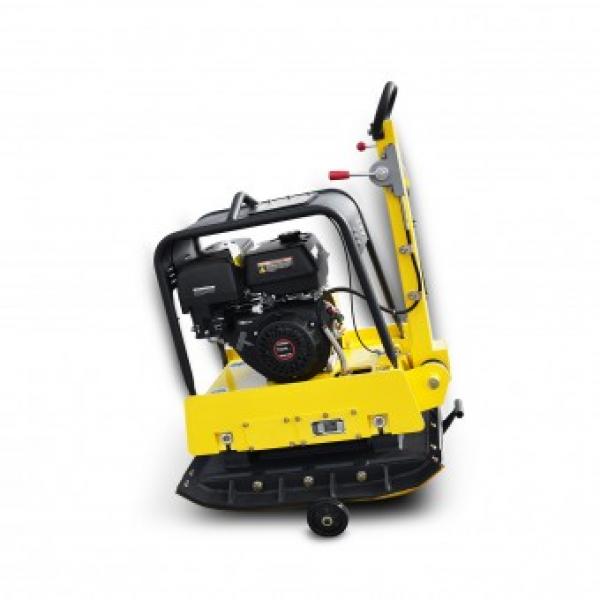

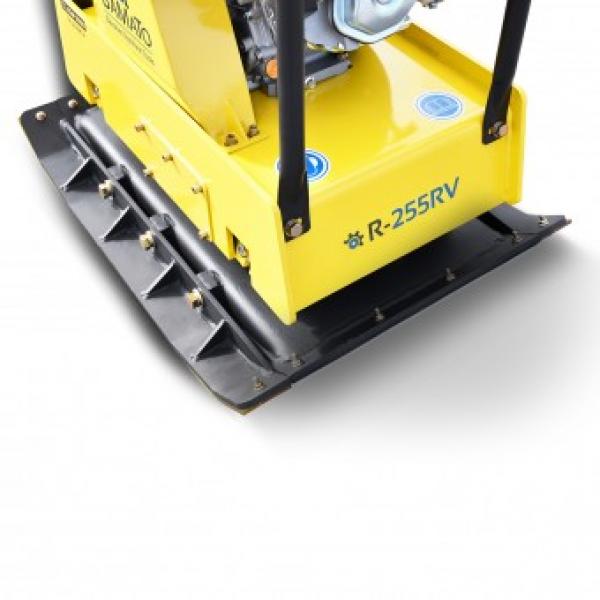

Product features BAMATO R-255RV vibratory plate with forward and return motion
The R-255RV vibratory plate from BAMATO is a powerful machine with a compaction pressure of 38 kN and an operating weight of 255 kg. With its powerful 8.2 kW petrol engine and a compaction depth of up to 90 cm, it is a real powerhouse. The forward and reverse function makes operation particularly easy and efficient.
Included in the delivery are a rubber mat, a mounting kit and a chassis, which makes handling the machine even easier. Thanks to its robust design, the R-255RV vibratory plate is particularly durable and reliable.
Whether for use on construction sites or for private use in the garden, with the R-255RV vibratory plate from BAMATO you have a powerful tool at hand that will quickly and effectively assist you with soil compaction.
- The solid steel construction of the vibratory plate protects the motor and ensures a long service life
- Easy handling due to stepless forward and backward movement
- More handy - more manoeuvrable - more energy-saving compared to a vibratory plate that only moves forwards
- Powerful petrol engine with 8.2 kW and a compaction pressure of 38 kN
- Particularly suitable for fundamental work, path construction and garden and landscape construction
- Compaction depth of up to 90 cm
- Transport lug enables easy transport
- Rubber mat and mounting kit included
- Chassis included
Technical data BAMATO R-255RV vibratory plate with forward and return motion
- Operating speed: 3600 min-1
- Excitation system: Forward and return flow
- Running gear: Yes
- Displacement: 389 ccm
- Fuel type: Petrol
- Engine manufacturer: Loncin
- Engine power: 8.2 kW
- Engine type: 1 cylinder 4-stroke engine
- Plate size : 825 x 475 mm (+ mounting plates 825 x 90 mm each)
- Starting device: Reversing starter
- Tank capacity: 6.0 litres
- Compression pressure : 38 kN
- Compaction depth : 900 mm
- Vibration shocks : 3750 vpm
- Forward speed : 25 m/min
- Weight machine (kg): 255
- Weight with packaging (kg): 270
