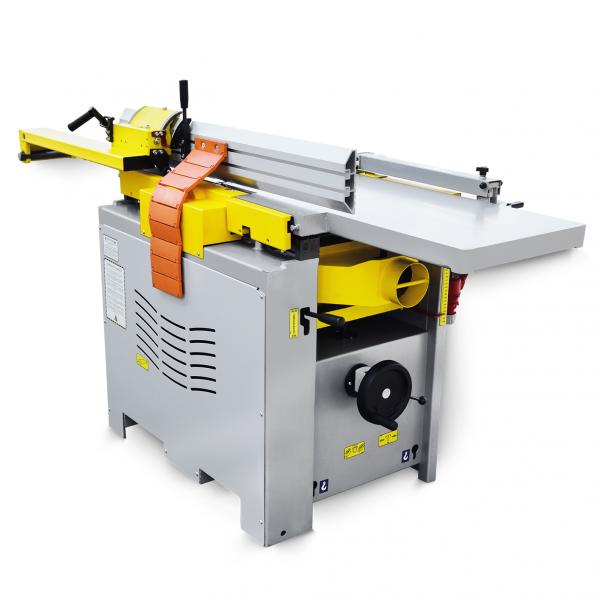

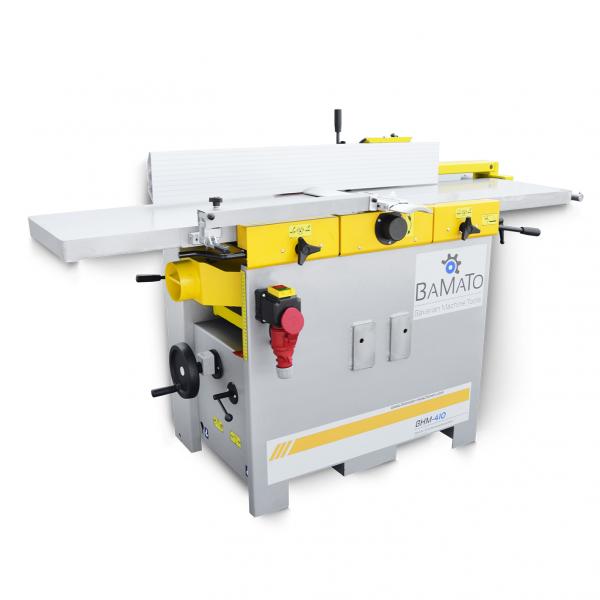

BAMATO Planer and Thicknesser BHM-410 (400V)

The BAMATO planer and thicknesser BHM-410 is equipped with a precision-bearing cutterblock, which is fitted with 4 pieces of HSS reversible knives. The planing width of up to 410mm and a thicknessing capacity of 225mm makes this machine a real all-rounder for the professional do-it-yourselfer. The thicknessing table is equipped with a stable, central column guide, additional guide as well as a mechanical counter with an accuracy of 0.1mm. A long, stable and torsion-free dressing table made of grey cast iron as well as a swivelling professional dressing fence ensure perfect planing results. A big plus in terms of operating comfort are the rear-folding and thus space-saving dressing tables.


Product Highlights BAMATO Planer and Thicknesser BHM-410 (400V):

• TPrecision bearing mounted cutter with 4 HSS reversible knives

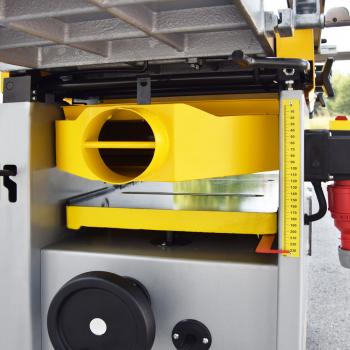

• Integrated chip extraction bonnet with 120mm extraction connection for clean working

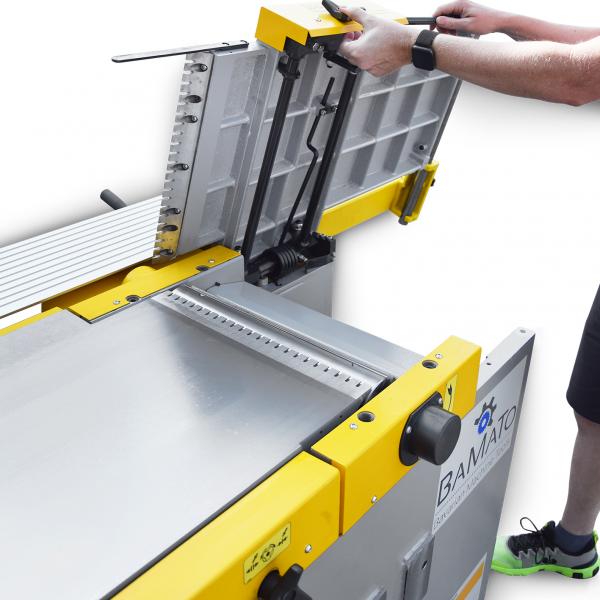

• space-saving dressing tables that can be folded to the rear for quick conversion to thicknessing planes

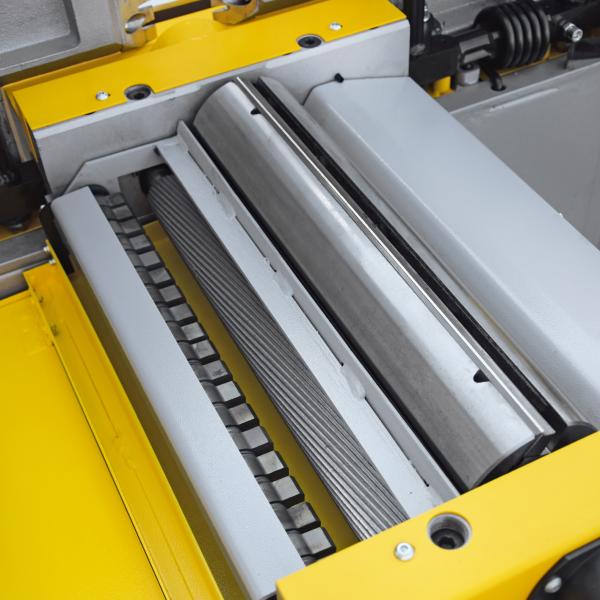

• Spiral toothed infeed roller with split kick-back guard
• Thicknessing table with stable column guide, additional guide and mechanical counter

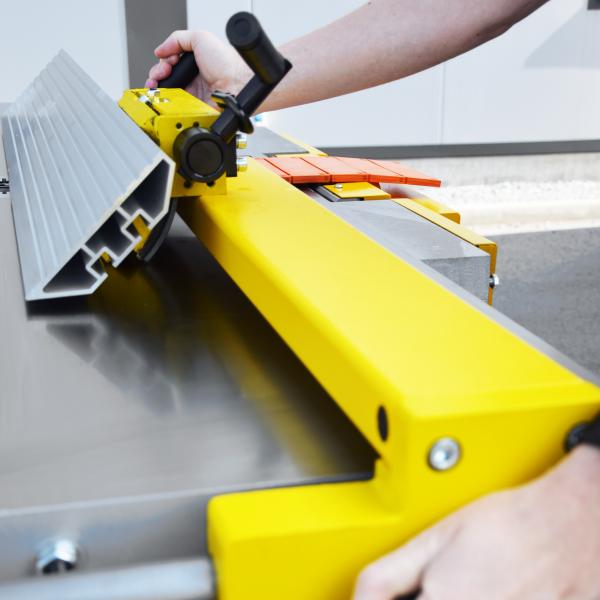

• Stable professional dressing fence which can be swivelled from 90° to 45° and is guided laterally to save space
• Dressing tables with fine adjustment and noise-reducing table lips
• Solid and stable base
• Workpiece feed can be switched off during thickness planing
• Quality machine MADE IN EUROPE
• Long, large-dimensioned jointer tables made of grey cast iron with ground surface

Technical data BAMATO planer and thicknesser BHM-410 (400V)

• Planing fence 1100 x 155 mm
• Planing fence swivelling range 90° to 45
• Dressing width 410 mm
• Suction connection 120 mm
• Thickness planer max. chip removal 4 mm
• Thickness planer table size 700 x 405 mm
• Planing width 405 mm
• Planing knife size 410 x 19 x 1 mm
• Planing knives 4 pieces
• Planing shaft speed 4500 min-1
• Planing shaft diameter 100 mm min. / max.
• Thickness passage 5 - 225 mm
• Motor power S1 5500 Watt
• Motor power S6 4000 Watt
• Voltage 400 V / 50 Hz
• Table width 410 mm
• Table height 855 mm
• Table length 1810 mm
• Feed speed 8 m/min
