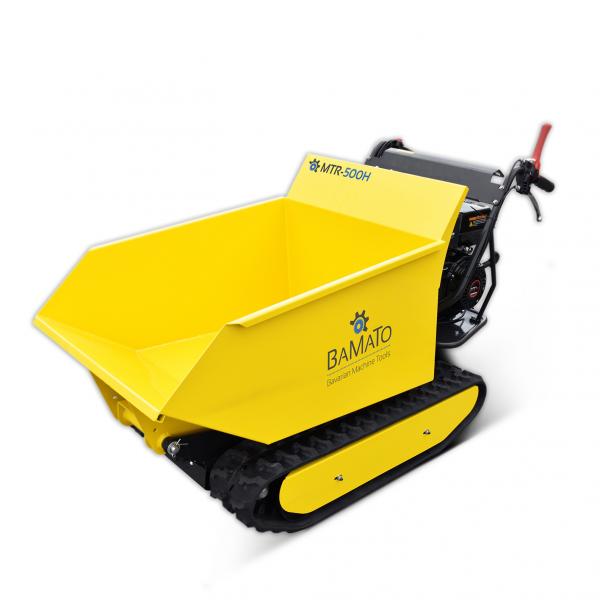

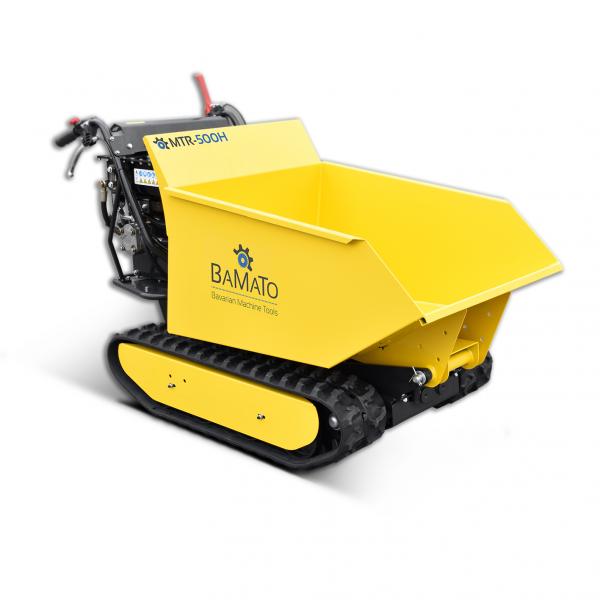

Product Highlights BAMATO Mini Track Dumper MTR-500H with Tipping Hydraulics
- The BAMATO Mini track dumper MTR-500H with tipping hydraulics
- The all-rounder provides valuable services as a transport aid even in impassable terrain.
- The MTR-500H is used in gardening and landscaping, forestry and for conversion work, etc.
- Due to the compact and narrow design, it is possible to drive through doors and narrow paths.

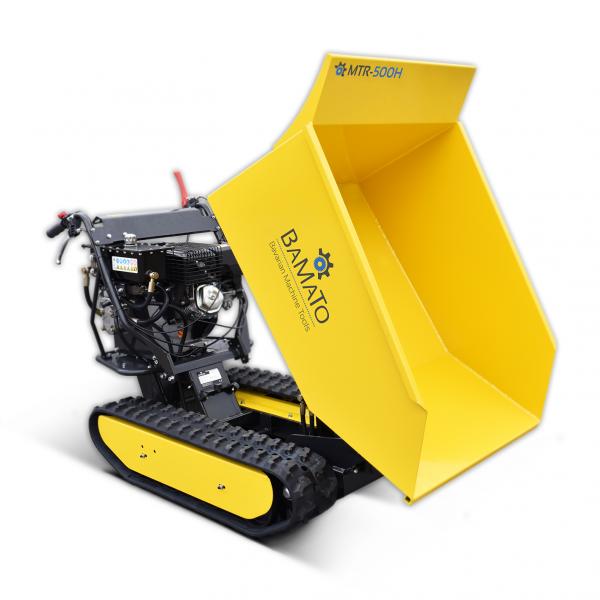

- Easy tipping due to tipping hydraulics
- Solid steel construction allows a load of up to 500kg
- 3 forward and 1 reverse gear offer optimum operating comfort for the respective working environment

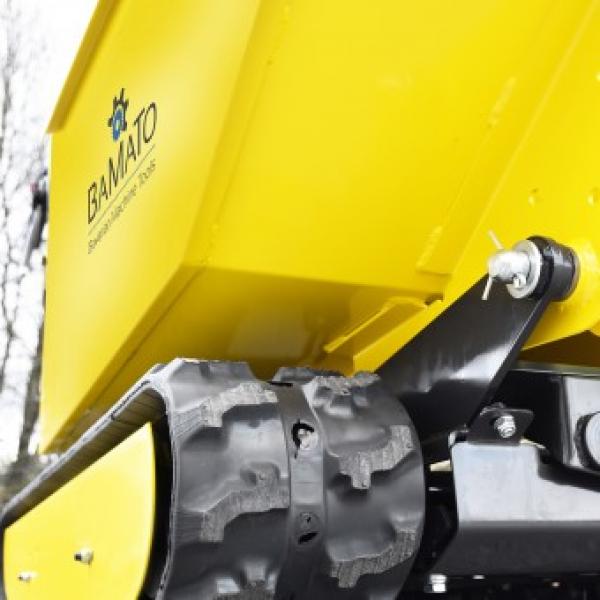

- Robust rubber track with chain tensioner
- Steering is by means of steering brakes
- Incl. preparation for optional dozer / snow blade
Technical details BAMATO Mini track dumper MTR-500H with tipping hydraulics
- Engine: 1-cylinder OHV engine
- Engine type: 4-stroke engine for unleaded petrol
- Displacement: 270 cm³
- Power: 6.0 kW
- Operating speed: 3000 rpm
- Starting system: Reversing starter
- Drive: Gear transmission
- Steering: Steering brake
- Gears: 3 forward and 1 reverse gear
- Brakes: automatic safety brakes
- Hydraulics: Tipping hydraulics for tipping body, can be tipped forwards
- Tipping container L/W/H: 1000 x 690 x 460 mm
- Load capacity: up to 500 kg
- Body: 215 litre capacity body
- Ground clearance: 60 mm
- Dimensions L/W/H: 1730 x 720 x 950 mm
- Weight of machine 270 kg
- Weight with packaging 295 kg
The mini track dumper MTR-500H is a quality product of the brand BAMATO - Bavarian Machine Tools!
