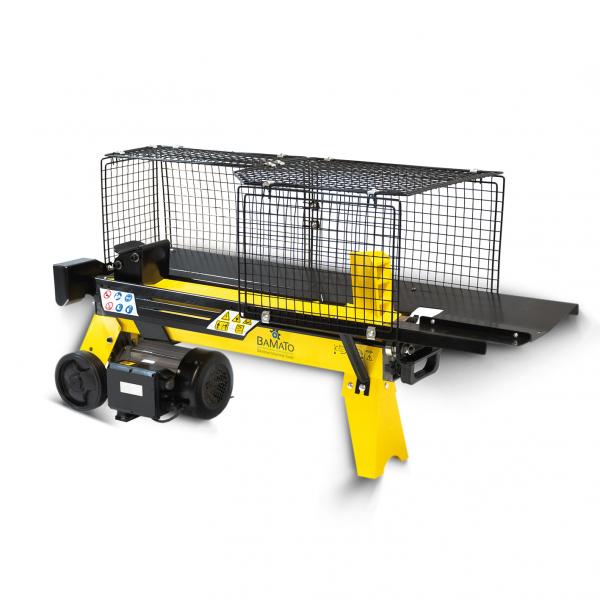

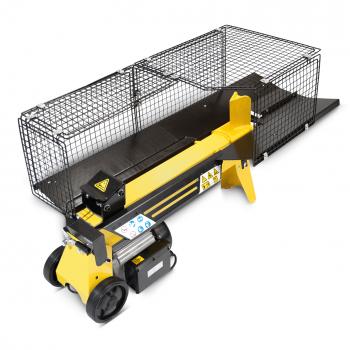

Product features BAMATO log splitter with electric drive HO-7E incl. base frame
The BAMATO HO-7E log splitter with electric drive is the ideal solution for anyone who wants to split wood quickly and efficiently. With its powerful splitting force of 7 tonnes, it effortlessly splits pieces of wood with a length of up to 520 mm and a diameter of up to 250 mm. In terms of ease of use, the splitter scores with an automatic return, infinitely adjustable splitting stroke and a splitting tray. The powerful 230 V electric motor ensures that the splitter works reliably and precisely. Thanks to its compact design and sturdy wheels, the log splitter can be easily transported and stowed away to save space. Equipped with a two-hand safety condition and a safety cover, the HO-7E offers maximum safety when working. Splitting wood has never been easier than with the BAMATO HO-7E log splitter.

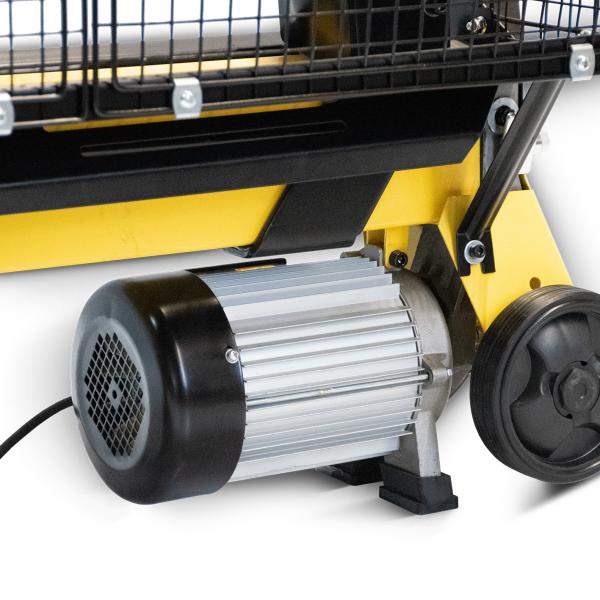

- Powerful motor with 2200 W
- Easy and effortless cutting of stored wood and fresh wood
- High splitting force of 7 tonnes
- Suitable for timber lengths up to 520 mm and diameters up to 250 mm
- Automatic return of the hydraulic cylinder
- Robust and stable steel construction with powder coating
- Sharp and stable splitting knife
- Infinitely adjustable splitting stroke for optimum results
- Two-hand operation for maximum safety
- Low-maintenance machine that requires little space
- Safety cover around the splitting area for additional protection
- Practical storage table for the split material

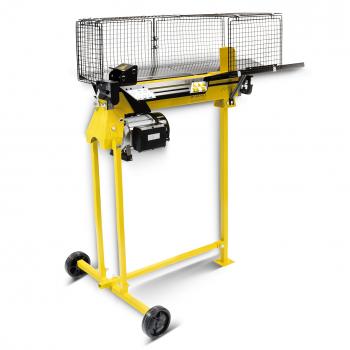

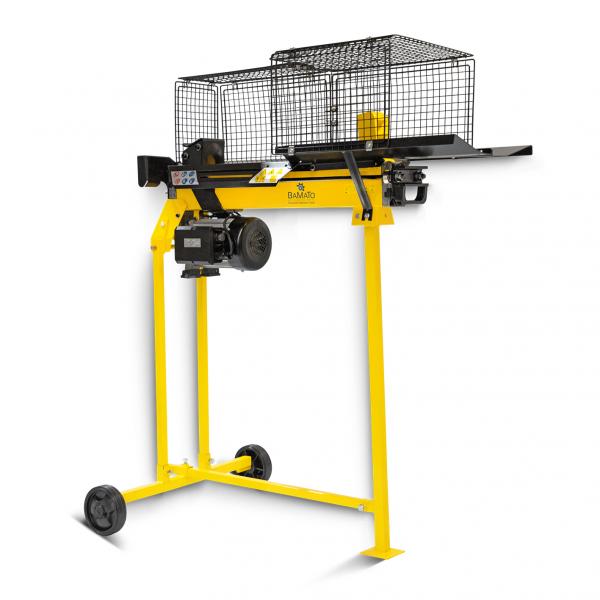

- Incl. base frame for comfortable working height of 1100 mm
- Pre-filled with hydraulic oil
Technical data BAMATO log splitter with electric drive HO-7E incl. base frame
| Drive via |
Electric motor |
| Hydraulic pressure |
20,8 MPa |
| Hydraulic oil |
HLP46 |
| Hydraulic oil volume |
3.5 litres |
| Max. Gap diameter |
50 - 250 mm |
| Max. Splitting stroke |
370 mm |
| Max. Gap length |
520 mm |
| Engine power |
2200 Watt |
| Return speed |
5,29 cm/s |
| Splitting force |
7 tonnes |
| Tension |
230 V / 50 Hz |
| Forward speed |
3,08 cm/s |
| Machine dimensions |
|
| Width |
725 mm |
| Height |
1350 mm |
| Length |
1160 mm |
| Noise emission |
|
| Sound pressure level |
89,90 dB(A) |
| Sound power level |
96,00 dB(A) |
| Shipping details |
|
| Dimensions package 1 (L/W/H) |
950 x 325 x 510 mm |
| Dimensions package 2 (L/W/H) |
970 x 125 x 125 mm |
| Number of packages |
2 |
| Shipping weight |
68,60 kg |
| Shipping method |
Forwarding agency |
