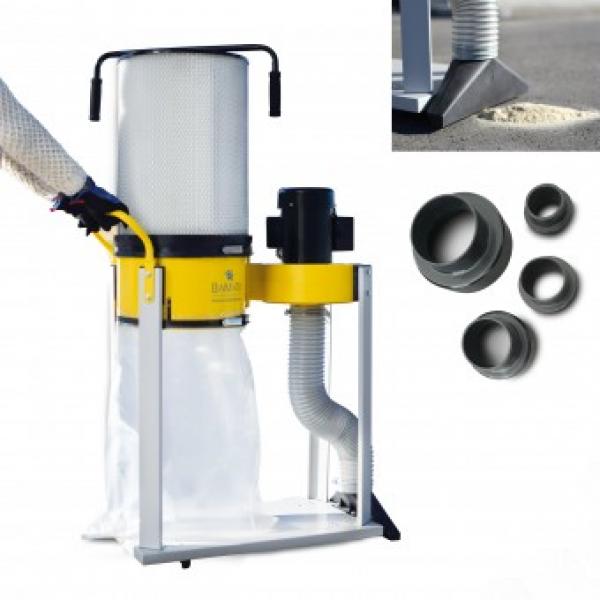

BAMATO Extraction unit AB-1500CF with fine dust filter and adapter set (400V)

Product Highlights BAMATO Extraction unit AB-1500CF with fine dust filter and adapter set (400V)​

• The BAMATO AB-1500CF extraction unit is equipped with a fine dust filter.
• Due to the 100mm thick extraction hose, this machine is compatible with most machines and the optimal device for the ambitious do-it-yourselfer
• An extraction capacity of 1500 m³/h ensures clean working conditions at the workplace
• The adapter set makes the AB-1500CF mobile and flexible for use with cross-cut saws, sanding machines, etc.
• Easy handling is guaranteed thanks to the integrated trolley and handle
• Sturdy metal construction with robust metal fan wheel
• incl. fine dust filter, vacuum cleaner and adapter set

Technical data BAMATO Extraction unit AB-1500CF with fine dust filter and adapter set (400V)​

• Powerful and powerful motor:
  • 750 watt motor power S1
  • 1000 watt motor power S6
• Chip bag volume 60 litres
• Air output 1500 m³/h
• Negative pressure 1020 Pa
• Filter area 2.2 m²
• Suction connection 100 mm
• Width of floor vacuum cleaner 380 mm
• Fan wheel design: metal
• Idling speed 2950 min-1
• Operating voltage 400 V / 50 Hz
• Sound power level LWA = 85 dB(A)
• Dimensions L/W/H: 870 x 380 x 1420 mm
• Packaging dimensions L/W/H:
  • 420 x 420 x 655 mm
  • 755 x 445 x 450 mm
• Weight machine 30,5 kg
• Weight packing 33,5 kg
