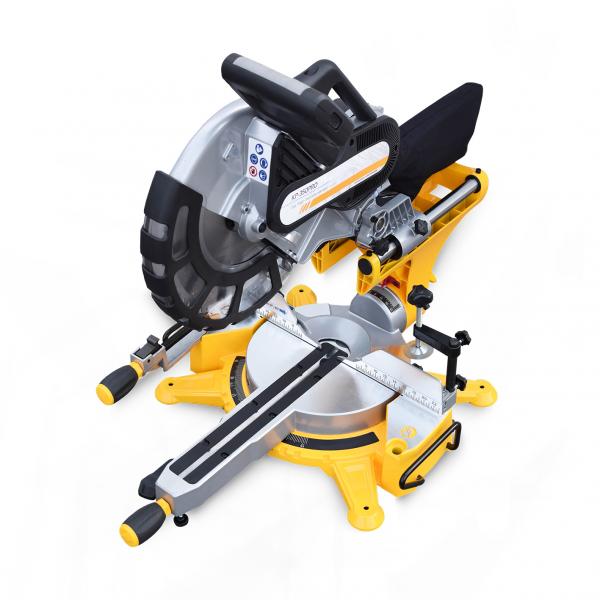

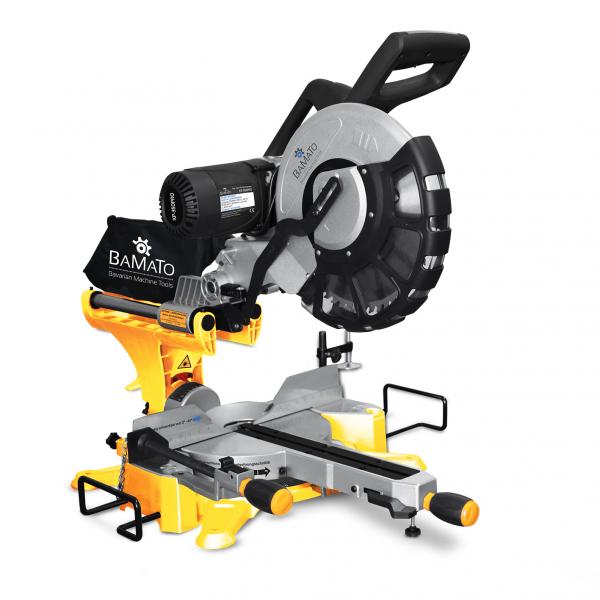

BAMATO crosscut and mitre saw KP-350PRO and machine stand KST-2760

Product features BAMATO cross-cut saw KP-350PRO and machine stand KST-2760

• equipped with soft start and the belt drive on the saw blade protects the mechanics
• Power-operated LED light and linear laser to indicate the cutting position of the saw blade

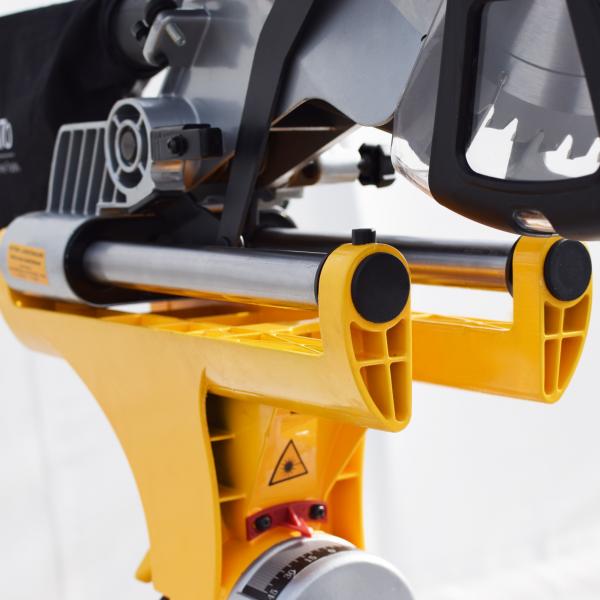

• small space requirement due to the new & space-saving double column guide with robust linear ball bearings
• saw head can be tilted up to +/- 45° on both sides
• saw unit can be tilted 45° to the left and right
• 105mm cutting height and 340mm cutting length (pull function) are the highlights of the KP-350PRO
• solid aluminium die-cast construction for optimal handling
• equipped with integrated cutting depth limiter for cutting grooves
• comfortable and rubberised handle
• closed saw blade protection for maximum working safety
• incl. side supports, quick clamping device, hold-down device and chip collection bag
• incl. 305mm HM saw blade with 60 teeth

• comfortable and back-friendly working position
• suitable for 95% of all cross-cut saws on the market, as well as for various small tools such as scroll saws, table drills, sanding blocks and many more.
• Thanks to the retractable feet, the KST-2760 can be stored in a space-saving way.
• Side supports can be extended from 1160 to 2760 mm
• Rubberised feet for secure footing
• load capacity up to 150 kg

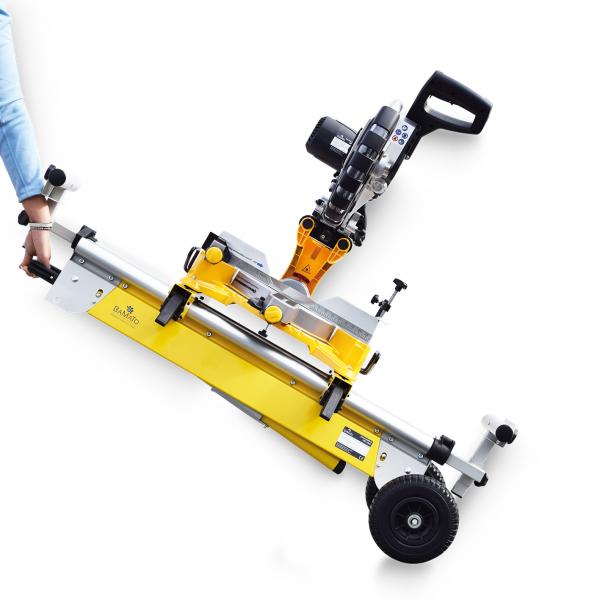

• Side handle and wheels for easy transport
• Height-adjustable workpiece supports and workpiece supports on the feet make work easier
• Dimensions when retracted (L/W/H): 1280 / 640 / 950 mm
• Dimensions when extended (L/W/H): 2760 / 640 / 950 mm

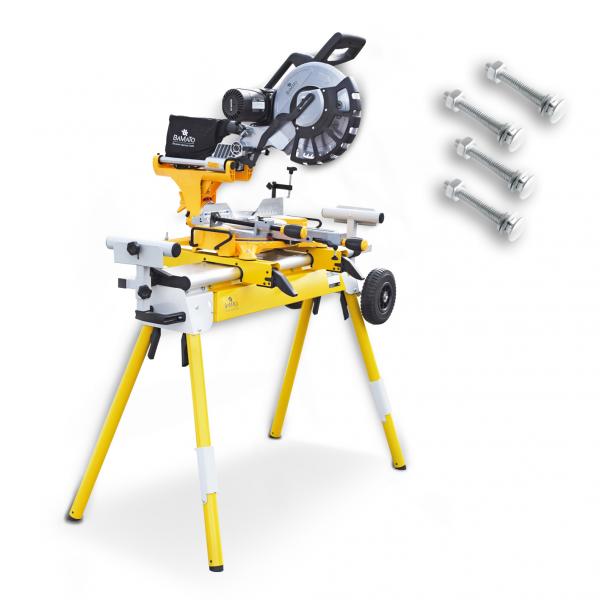

• Scope of delivery incl. screw kit for attaching machines

Technical data BAMATO crosscut and mitre saw KP-350PRO and machine stand KST-2760

• Technical data crosscut saw
• Suction connection: 41 mm
• Number of teeth: 60
• Machine dimensions (L/W/H): 880 x 540 x 750 mm
• Motor power S1: 2000 Watt
• Saw blade: 305 mm
• Saw blade tiltable: 45° on both sides
• Saw blade tiltable: +/- 45°.
• Saw blade bore: 30 mm
• Saw blade speed: 4500 min-1
• Soft start: Yes
• Cutting width / height 45° / 45° (left): 240 x 55 mm
• Cutting width / height 45° / 45° (right): 240 x 40 mm
• Cutting width / height 45° / 90°: 240 x 105 mm
• Cutting width / height 90° / 45°: 340 x 55 mm
• Cutting width / height 90° / 90°: 340 x 105 mm
• Voltage: 230 V / 50 Hz
• Technical data machine stand
• Dimensions when extended (L/W/H): 2760 x 640 x 950 mm
• Dimensions when retracted (L/W/H): 1280 x 640 x 950 mm
• Chassis: Yes
• Feet of the machine stand: foldable
• Load capacity: 150 kg
• Weight of machine (kg): 44
• Weight with packaging (kg): 49
• Shipping details
• Dimensions package 1 (L/W/H): 925 x 580 x 530 mm
• Dimensions package 2 (L/W/H): 1190 x 300 x 300 mm
• Number of packages: 2
• Shipping weight: 49,00 kg
• Dispatch type: Package
