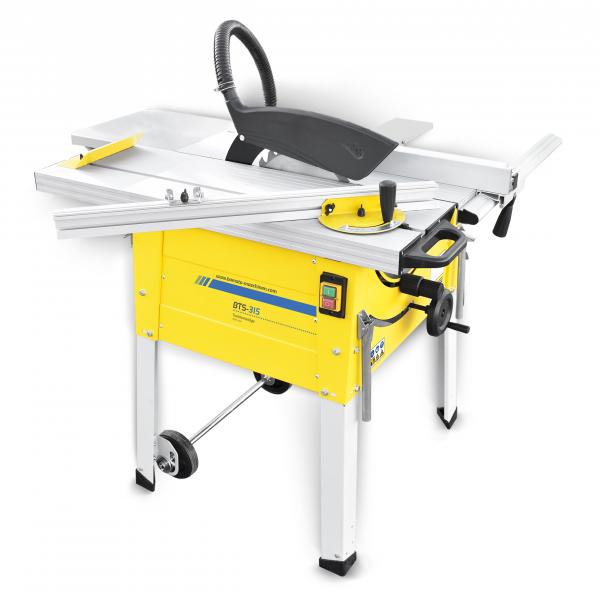

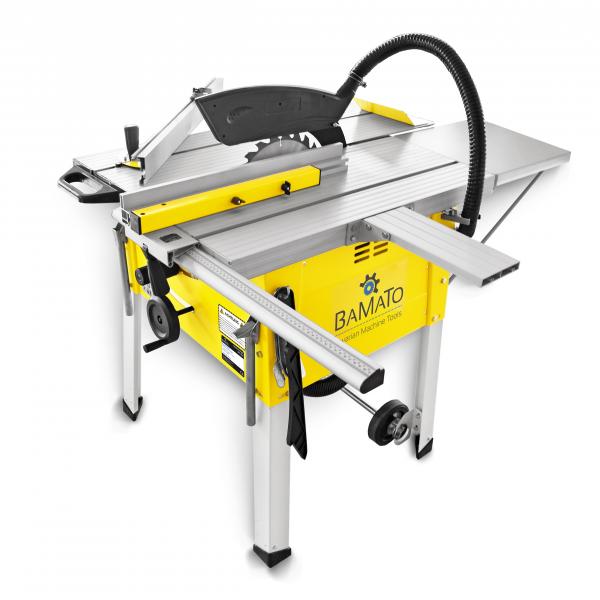

Properties BAMATO Circular Table Saw BTS-315
The BAMATO circular table saw BTS-315 for the ambitious do-it-yourselfer is equipped with a ball-bearing sliding table. Thanks to the compact design and the standard chassis, the circular table saw can be used in a mobile and flexible manner. For perfect ease of use, the saw blade can be adjusted in height or inclination up to 45° via the hand wheels and slaka. The BTS-315 also scores with a cutting width of up to 600 mm at the rip fence. The large machine table with lateral widening and table extension serves as a safe support surface and is perfectly suited for processing larger workpieces.
- Ball-bearing mounted sliding table with angle-adjustable stop rail
- Rubberised table feet for low-vibration operation
- Table extension for cutting widths up to 600 mm at the rip fence
- Powerful and efficient motor
- Height-adjustable and swivelling saw blade with Ø 315 mm
- central 100 mm suction connection and saw blade protection bonnet with suction connection
- Stable rip fence on high-quality guide rail
- comfortable working height of 855 mm
- XXL scope of delivery included:
- 315 mm HM saw blade with 24 teeth

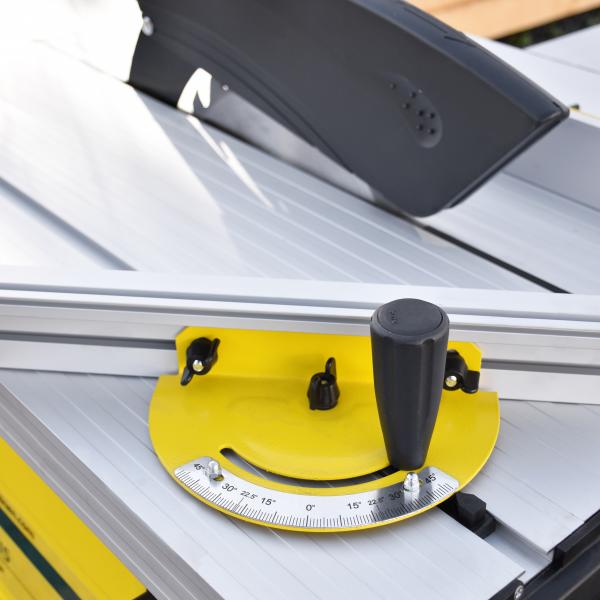

- cross and mitre fence
- Protective bonnet with suction connection
- Push stick
- Chassis
Technical data BAMATO circular table saw BTS-315
Technical data sliding table saw
- Suction connection: 100 mm / 35 mm ( protective bonnet )
- Installation dimensions: 1000 x 650 x 850 mm
- sliding table: 1000 x 300 mm
- Max. Cutting height 45°: 49 mm
- Max. Cutting height 90°: 73 mm
- Motor power S1: 2000 Watt
- Motor power S6: 2200 Watt
- Saw blade / bore: 315 / 30 mm ( 24 teeth)
- Saw blade speed: 2800 min-1
- Saw blade tilting range: 90° - 45 °
- Cutting width with rip fence: 600 mm
- Voltage: 230 V / 50 Hz
- Table size: 800 x 350 mm
- Table height: 855 mm
- Table extension: 300 x 125 mm
- Table extension: 400 x 350 mm
- Travel: 600 mm
Machine dimensions
- Width: 1350 mm
- Height: 1050 mm
- Length: 1300 mm
- Weight machine (kg): 67
- Weight with packaging (kg): 74
Noise emission
- Sound pressure level: 96.20 dB(A)
- Sound power level: 103.00 dB(A)
Shipping details
- Packing width: 740 mm
- Height of the packaging: 410 mm
- Length of packaging: 1100 mm
- Shipping weight: 74,00 kg
- Shipping method: forwarding agent
