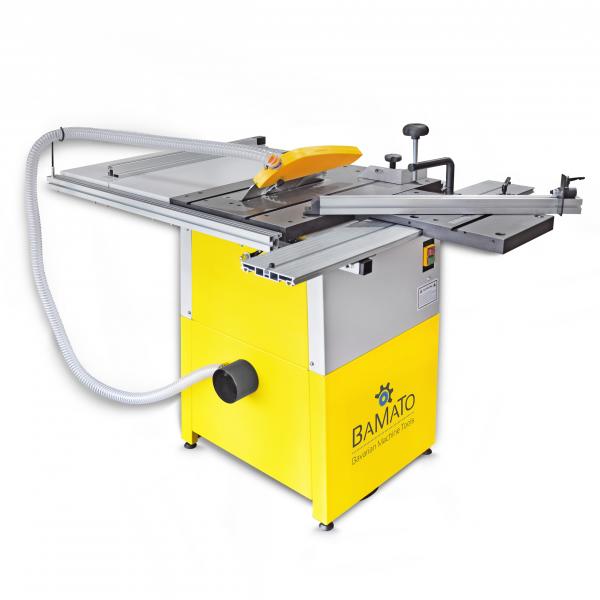

BAMATO Circular Table Saw BTS-250PRO (400V)

Product features BAMATO circular saw BTS-250PRO (400V)

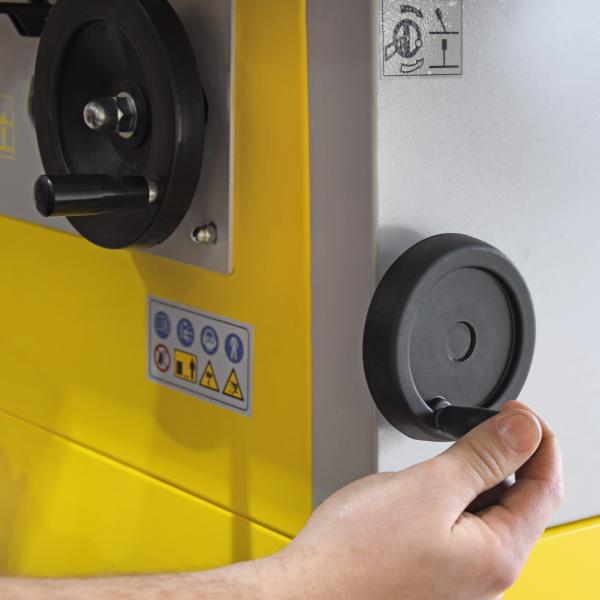

• The BAMATO table saw of the BTS-250PRO series is equipped with a stable rip fence which is guided on a high-quality guide rail. Together with the solid cast iron table, this produces a perfect cutting result. For perfect operating comfort, the saw blade can be adjusted in height or inclination up to 45° via the hand wheels and slaka. The sliding table is also made of solid cast iron and has, among other things, an angle-adjustable stop rail with hold-down device.
• Solid cast iron table for low-vibration work
• Table extension for cutting widths up to 700 mm at the rip fence
• powerful and high-performance motor
• Height-adjustable and tiltable saw blade with Ø 254 mm
• Central 100 mm extraction connection and saw blade protection bonnet with extraction connection
• sliding table with angle-adjustable fence with hold-down device

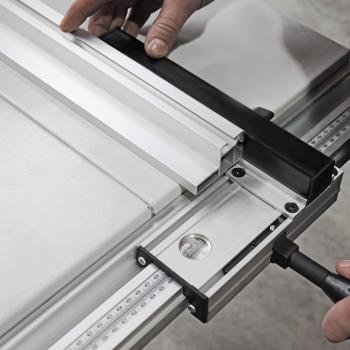

• Stable rip fence on high-quality guide rail
• comfortable working height of 850 mm
• XXL scope of delivery included:
• 254 mm HM saw blade with 40 teeth
• short cross and mitre fence
• fence rail with hold-down device

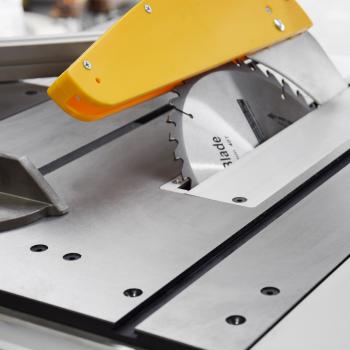

• protective bonnet with suction connection
• Stable machine base

Technical data BAMATO circular saw BTS-250PRO (400V)

• Technical data sliding table saw
• Suction connection: 100 mm / 30 mm ( protective bonnet )
• sliding table: 400 x 250 mm
• Max. Cutting height 45°: 65 mm
• Max. cutting height Cutting height 90°: 80 mm
• Motor power S1: 2200 Watt
• Motor power S6: 3100 Watt
• Saw blade / bore: 254 / 30 mm ( 40 teeth)
• Saw blade speed: 4000 min-1
• Saw blade tilting range: 90° - 45
• Cutting width with rip fence: 700 mm
• Voltage: 400 V / 50 Hz
• Table size: 635 x 420 mm
• Table height: 850 mm
• Table extension: 2 x 635 x 290 mm
• Machine dimensions
• width: 1440 mm
• Height: 1050 mm
• Length: 1010 mm
• Weight machine (kg): 105
• Weight with packaging (kg): 119
• Noise emission
• Sound pressure level: 84,7 dB(A)
• Shipping details
• Dimensions package 1 (L/W/H): 750 x 620 x 510 mm
• Dimensions package 2 (L/W/H): 740 x 450 x 200 mm
• Dimensions package 3 (L/W/H): 1015 x 175 x 85 mm
• Number of packages: 3
• Shipping weight: 119,00 kg
• Mode of dispatch: forwarding agent
