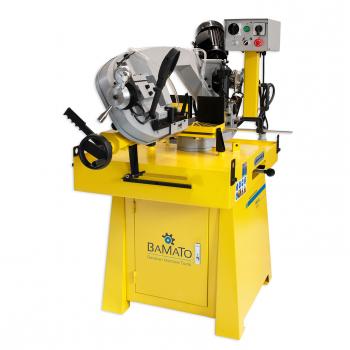

Product highlights BAMATO BMS-320 metal band saw (400V)
The BAMATO BMS-320 metal band saw is a precise and reliable tool for professional users. With a cutting capacity of up to 320 x 195 mm or a diameter of up to 245 mm, it enables precise cutting of metal pipes, profiles and plates. The robust construction made of high-quality material ensures a long service life and high stability. The metal band saw is equipped with a powerful 1500 watt motor that delivers the necessary power. Thanks to the integrated coolant system, heat build-up during cutting is reduced, which extends the service life of the saw blades and ensures clean cutting results.
The BMS-320 also impresses with its easy handling and convenient operation. Highlights include the manually or automatically lowerable saw arm and simple adjustment of the saw blade speed via a switch on the control panel. The 2-stage gear drive and fast cutting angle adjustment enable precise adjustment to the material to be processed, while the adjustable vice ensures that the workpiece is held securely in place.
With the BAMATO BMS-320 metal band saw, you can realise even the most demanding metalworking projects effortlessly and efficiently. Convince yourself of the quality and performance of this outstanding tool! This metal band saw is your reliable partner for your metal cutting project.
- Stable machine stand with door and storage compartment for comfortable working conditions
- 15 litre coolant tank and powerful coolant pump

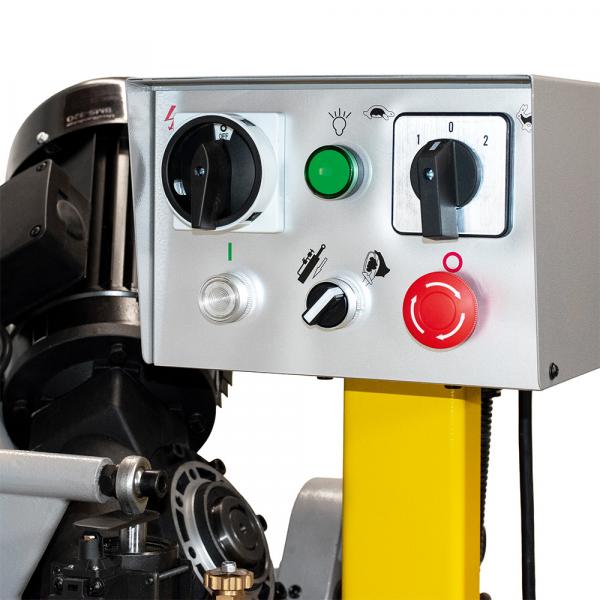

- User-friendly and clearly laid out control panel for easy operation
- 2 speed levels (35m/min and 70m/min) adjustable via switch
- Simple and precise display of the saw blade tension using a pressure gauge
- Powerful 2-stage drive with gearbox design for maximum performance
- Hydraulic lowering cylinder enables infinitely variable, precise lowering speed
- Robust, adjustable vice with quick fixation for easy handling and secure holding of the workpiece
- Automatic switch-off at the end of the cutting process thanks to integrated limit switch
- Saw arm can be lowered automatically or manually
- Simple cutting angle adjustment for precise work with angles of 0-45° left and 0-60° right
- High-quality, robust metal band saw for precise work with solid construction
- Scope of delivery incl. 1 x saw blade and CEE plug (16 A) with phase inverter
Technical data BAMATO BMS-320 metal band saw (400V)
| Machine dimensions |
|
| Width |
880 mm |
| Height |
1950 mm |
| Length |
1750 mm |
| Technical data metal band saw |
|
| Motor power S1 |
1100 Watt |
| Motor power S6 |
1500 Watt |
| Tension |
400 V / 50 Hz |
| Saw blade length |
2680 mm |
| Saw band width |
27 mm |
| Saw blade thickness |
0,9 mm |
| Saw blade speed |
37,5 / 75 m/min. |
| Swivelling range |
0° to 45° (left) / 0° to 60° (right) |
| Cutting capacity square 45° |
155 x 155 mm |
| Cutting capacity square 90° |
245 x 245 mm |
| Cutting capacity rectangular 45° |
180 x 140 mm |
| Cutting capacity rectangular 60° |
140 x 125 mm |
| Cutting capacity rectangular 90° |
320 x 195 mm |
| Cutting capacity round Ø 45° |
190 mm |
| Cutting capacity round Ø 60° |
140 mm |
| Cutting capacity round Ø 90° |
245 mm |
| Shipping details |
|
| Number of packages |
1 |
| Width of the packaging |
805 mm |
| Height of the packaging |
955 mm |
| Length of packaging |
1600 mm |
| Shipping weight |
384 kg |
| Shipping method |
Forwarding agency |
