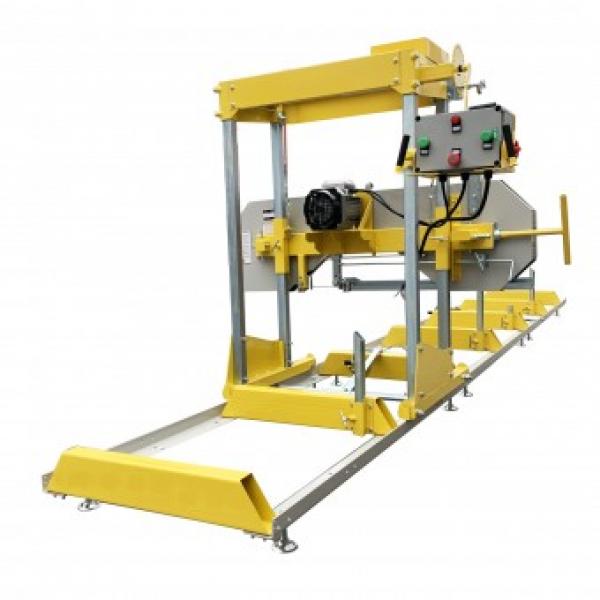

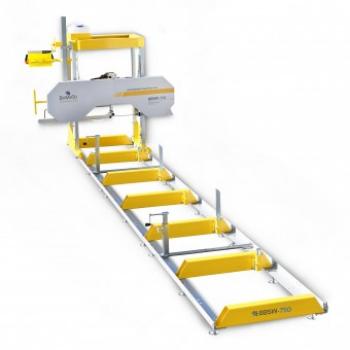

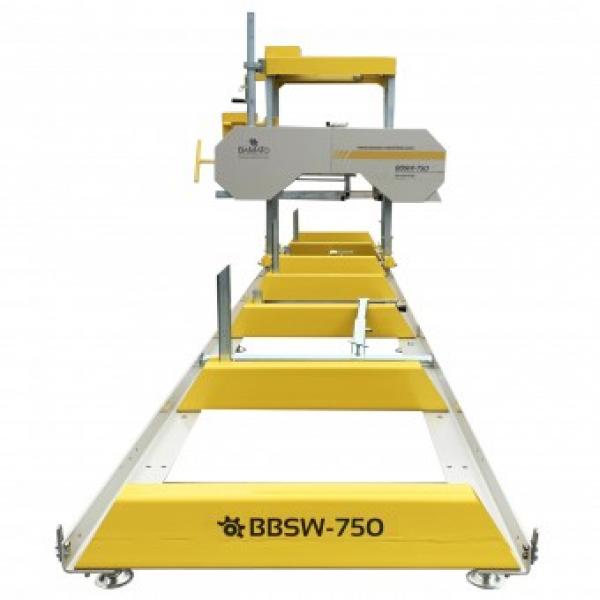

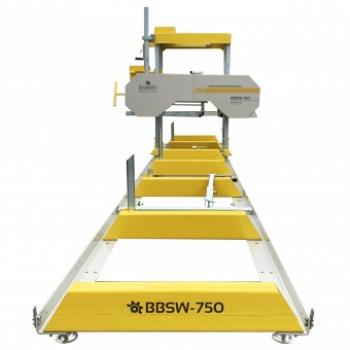

BAMATO Block Bandsaw BBSW-750 with 6,15m roller conveyor (400V)

Product Highlights BAMATO Block Bandsaw BBSW-750 with 6,15m roller conveyor (400V):

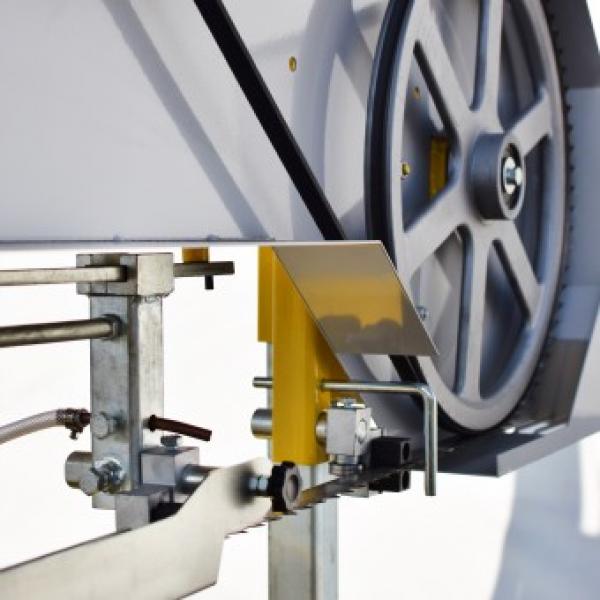

• robust and balanced drive wheels made of grey cast iron

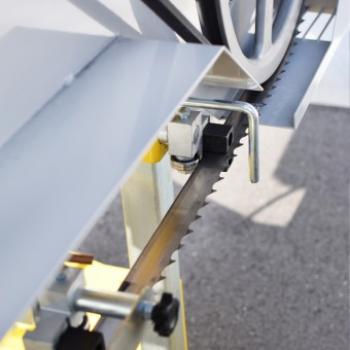

• precision guided saw band guide on both sides
• Basic version with 6.15 m roller conveyor
• Coolant system with 5 litre tank and metering tap
• manual feed and manual height adjustment with dimension scale
• quick fixation of the log by eccentric clamping system
• max. cutting length of 5.30 m of the standard version
• powerful 8.0 kW motor
• large and clearly arranged control panel
• cutting length can be extended as required with optional roller conveyor extension (2.05 m)
• 1x saw band included

Technical data BAMATO log bandsaw BBSW-750 with 6,15m roller conveyor (400V):

Technical data bandsaw

• Drive via electric motor
• Diameter of running wheels 470 mm

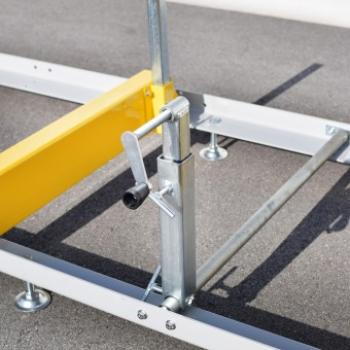

• Height adjustment of saw unit manual (hand wheel)
• Running wheel width 25 mm
• Max. board width Board width 610 mm
• Max. Cutting width between saw band and frame 155 mm
• Max. log diameter Log diameter 730 mm
• Min. / Max. Saw band stroke 35 / 710 mm
• Min. / Max. Cutting length 1300 mm / unlimited
• Engine power 8000 Watt
• Motor type Electric motor
• Saw band width 32 mm
• Saw band length 3790 mm
• Cutting length basic version 5300 mm
• Voltage 400 V / 50 Hz
• Extension section 2,05 mm (optional)
• Volume coolant tank 5 litres
• Manual feed

• Width 1870 mm
• Height 1860 mm
• Length 2050 - 6150 mm (total length basic version)
• Weight machine (kg) 382
• Weight with packaging (kg) 395

• Number of packages 1
• Width of packing 620 mm
• Height of packing 830 mm
• Length of package 2120 mm
• Shipping weight 395,00 kg
• Shipping method forwarding agency

Product Highlights BAMATO Block Bandsaw BBSW-750 with 6,15m roller conveyor (400V) is a quality product of the brand BAMATO - Bavarian Machine Tools!
