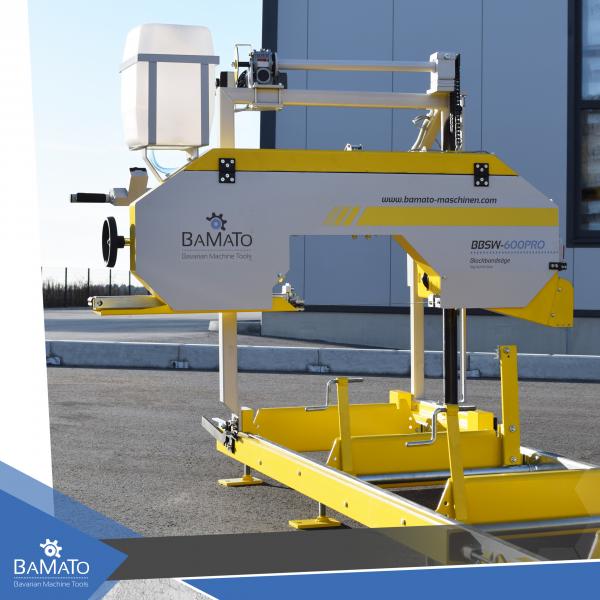

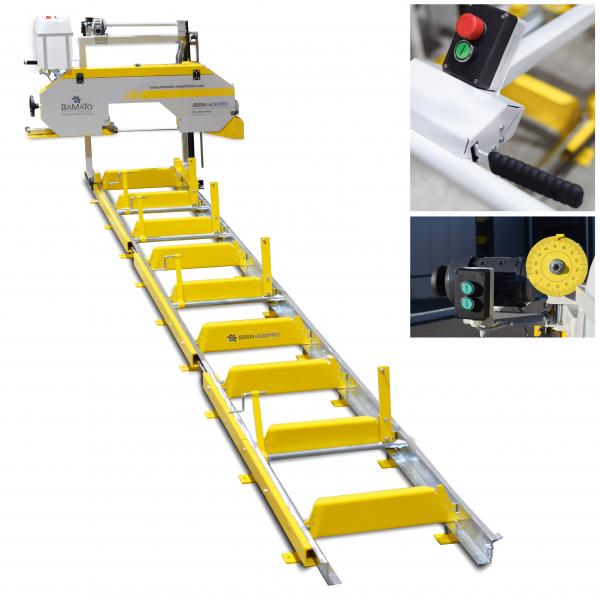

The BAMATO block band saw BBSW-600 is equipped with a powerful electric motor and robust cast iron drive wheels. This machine is ideal for precise sawing of soft, hard and dry wood. The solid steel construction ensures a perfect cutting result even with large and heavy workpieces.
Product Highlights BAMATO Block Bandsaw BBSW-600 with 4.6m roller conveyor
- Robust and balanced drive wheels made of grey cast iron
- Drive wheels equipped with cleaning brushes

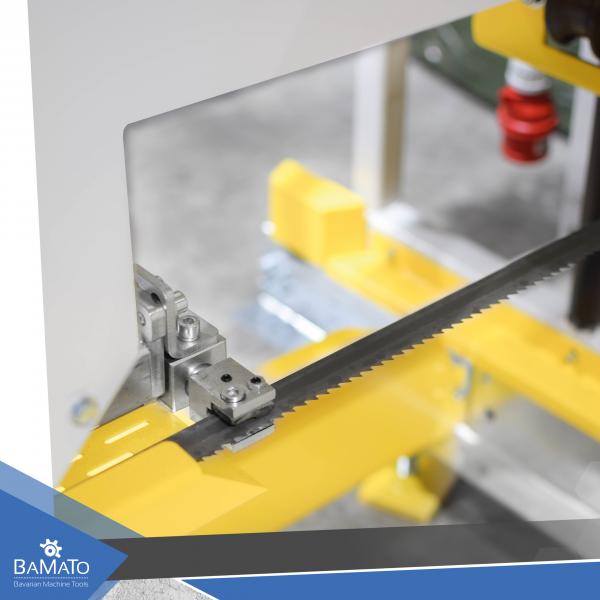

- precision-guided saw unit on both sides
- basic version with 4.6 m roller conveyor
- coolant unit with 10 litre tank and metering tap

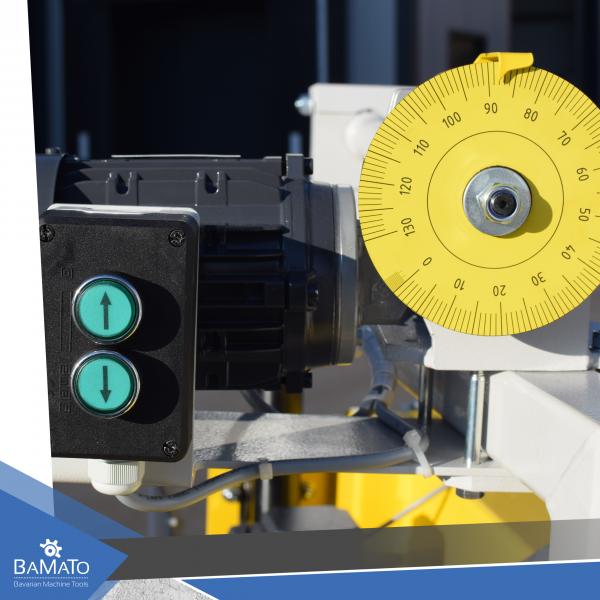

- manual feed and manual height adjustment with measuring scale
- quick fixation of the log by eccentric clamping system
- max. cutting length of 3.7 min of the standard version
- cutting length can be extended as required with optional roller conveyor extension (2.3 m)
- Quality machine MADE IN EUROPE
- 1x saw band included
Technical details BAMATO Block Bandsaw BBSW-600 with 4,6m roller conveyor
- Motor power S1 in Watt: 4000
- Motor power S6 in Watt: 5500
- Voltage: 400 V / 50 Hz
- Motor type: electric motor
- Length in mm: 2900 - 5200 (total length basic version)
- Width in mm: 1580
- Height in mm: 1540
- Saw band in mm: 3200 x 27 x 0,9
- Saw band speed m/sec: 15
- min. saw band stroke in mm: 20
- max. saw band stroke in mm: 540
- max. log diameter in mm: 550
- max. board width in mm: 530
- min. cutting length in mm: 1000
- max. cutting length in mm: unlimited
- impeller width in mm: 27
- impeller diameter in mm: 400
- Cutting length basic version in mm: 3700
- Cutting depth in mm: 220 (passage saw blade / housing)
- Cutting kerf in mm: 1,5 - 2,2
- Extension section in m: 2,3 (optional)
- Coolant tank volume in litres: 10
- Feed: manual
- Height adjustment: manual (hand wheel)
- Length of packaging in mm: 1830
- Packing width in mm: 1100
- Height of packaging in mm: 1400
- Shipping weight in kg: 395
The BAMATO Block Bandsaw BBSW-600 is a quality product of the brand BAMATO - Bavarian Machine Tools.
