Product Details Aluminium Box Zarges K470 Universal Box IP65

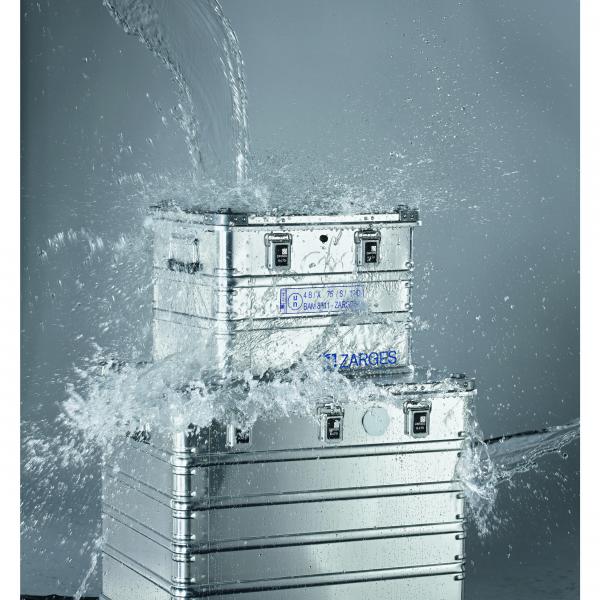

TÜV-Süd tested box with pressure equalisation valve - ideal for all applications requiring increased protection against moisture, jets of water and dust.
- TÜV-Süd tested box with pressure equalisation valve - ideal for all applications requiring increased protection against moisture, jets of water and dust.

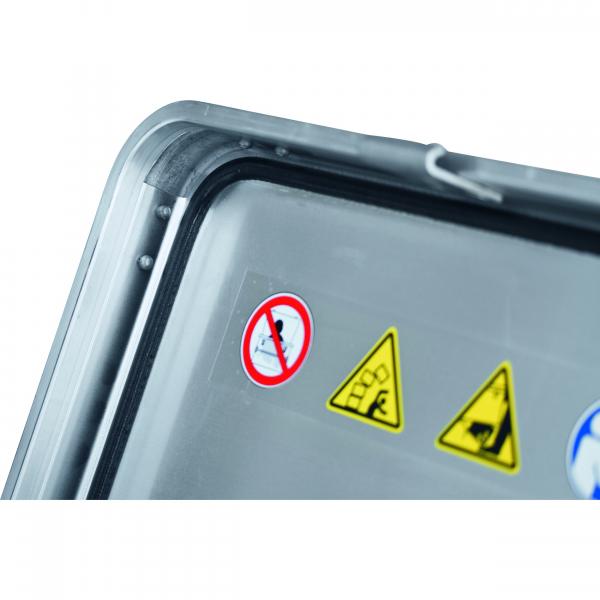

- Tightness IP 65 according to DIN EN 60529 due to seal foamed into the lid.

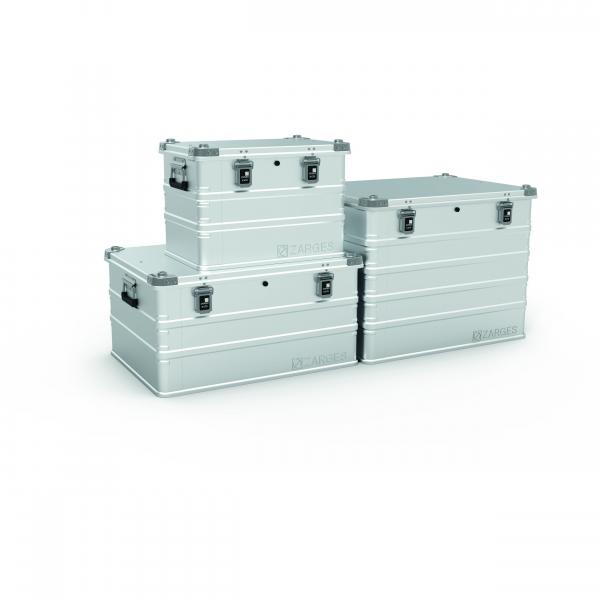

- 3 standard sizes from stock, customised versions on request.
- Also available with hazardous goods approval.
- Extra thick 1.5 mm sheet metal for all K 470 from 750 x 550 mm basic dimensions.

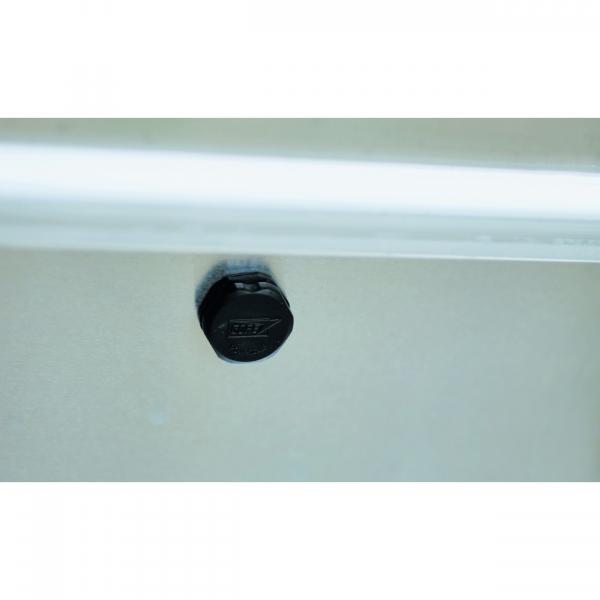

- Automatic pressure equalisation membrane.
- TÜV SÜD-tested.
- Available for most K 470.
- 3 standard sizes available from stock.
- UN approval for the transport of dangerous goods available at extra cost.
- Clearance dimension approx. 30 mm less than internal dimension (length and width). Special sizes on request.
Product features Aluminium box Zarges K470 Universal box IP65
- Number of handles: 2
- Seal: foamed lid seal
- Corner beads: yes
- Colour of stacking corners: Aluminium, natural
- Warranty: 10 years
- Integrated castors: no
- Material: aluminium
- Material of stacking corners: Aluminium
- Protection class: IP65:
- Stacking corners: yes
- Circumferential beading: yes
- Closures: Comfort closures
All variants Aluminium box Zarges K470 Universal box IP65
| Order no. |
Outer dimension L x W x H |
Weight |
Inner dimension L x W x H |
Volume |
Max. gross mass Hazardous goods approval |
| 366206 |
ca. 600 mm × ca. 400 mm × ca. 410 mm |
5,3 kg |
550 mm × 350 mm × 380 mm |
73 l |
75 kg |
| 366217 |
ca. 800 mm × ca. 600 mm × ca. 410 mm |
10 kg |
750 mm × 550 mm × 380 mm |
157 l |
102 kg |
| 366218 |
ca. 800 mm × ca. 600 mm × ca. 610 mm |
12 kg |
750 mm × 550 mm × 580 mm |
239 l |
126 kg |
