Product Details Aluminium Box Zarges Transport Box K470 Plus Hood Container
With the K 470 Plus, ZARGES is pursuing an innovative packaging concept: a two-part transport system consisting of an upper part and a lower part. This means that elements of different heights can be combined with each other, creating many possible variations.

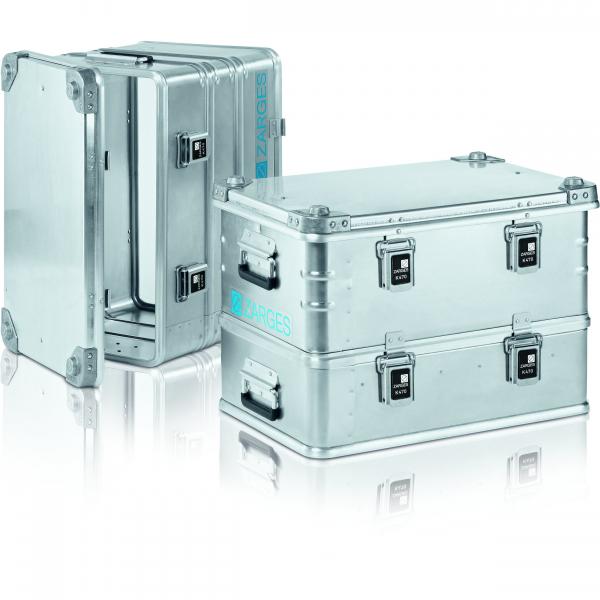

- Two-part transport system, consisting of top and bottom part.
- Can be flexibly combined thanks to 2 basic dimensions that can be combined with top sections of different heights.

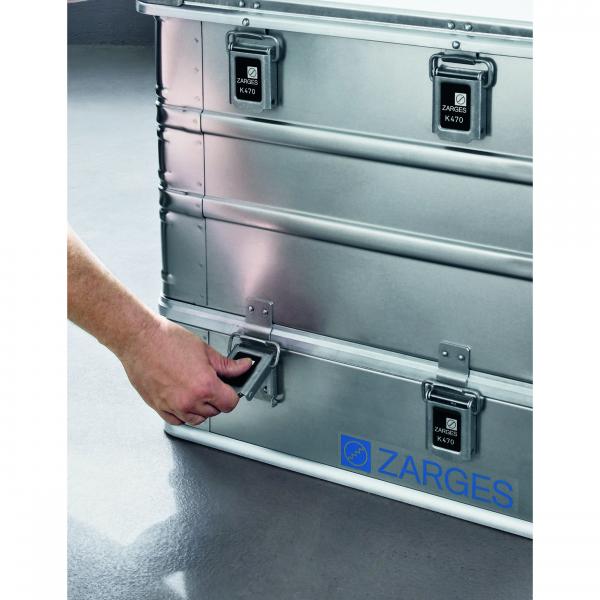

- Easy and ergonomic access to the contents via the lid or by removing the top part. This reduces the lifting movement and makes it possible to operate equipment in the crate.
- Stackable to the K 470 series.
- Customised versions on request.
- Removable top and lid equipped with all-round seal.
- Lid with stainless steel hinges and circumferential foamed-in seal.
- 2 basic sizes (550 x 350 mm and 750 x 550 mm) available as standard, special sizes possible, please enquire.
- Depending on height, all-round beading and corner beading for additional dimensional stability.

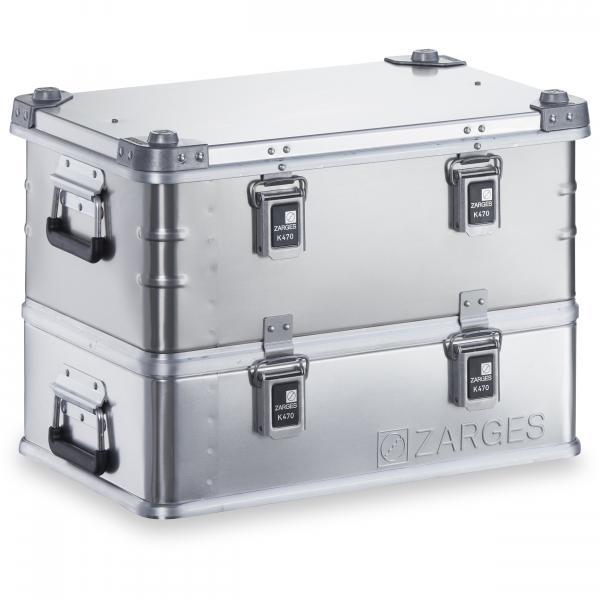

- Stackable universal box made of aluminium.
- Safe stackability due to stacking corners made of cast aluminium.
- Profile joints fully welded.
- Folding locks: Can be secured with a plug lock, lead seals, spring lock or padlock (max. shackle thickness 6 mm).
- Clearance dimension approx. 30 mm less than inside dimension (length and width). Special sizes on request.
- ZARGES Comfort handles for ergonomic handling and loads up to 50 kg.

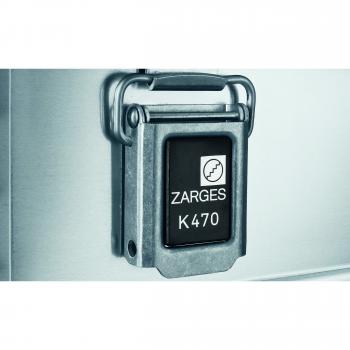

- ZARGES Comfort lock for ergonomic handling and extremely long service life.
Product Features Aluminium Box Zarges Transport Box K470 Plus Hood Container
- Seal: foamed lid seal
- Colour of stacking corners: Aluminium, natural
- handles: Spring drop handles
- Integrated castors: no
- Material: aluminium
- Stacking corner material: Aluminium
- Stacking corners: yes
- Closures: Comfort closures
All Variants Aluminium Box Zarges Transport Box K470 Plus Hood Container
| Order no. |
Outer dimension L x W x H |
Designation |
Corner beading |
Weight |
Inner dimension L x W x H |
Circumferential beading |
Volume |
| 40500 |
ca. 600 mm × ca. 400 mm × ca. 180 mm |
Bottom part |
no |
2,6 kg |
550 mm × 350 mm × 150 mm |
no |
29 l |
| 40501 |
ca. 600 mm × ca. 400 mm × ca. 250 mm |
Top part: Total height with bottom part 150 mm: 370 mm |
yes |
4 kg |
550 mm × 350 mm × 220 mm |
no |
42 l |
| 40502 |
ca. 600 mm × ca. 400 mm × ca. 410 mm |
Top part: Total height with bottom part 150 mm: 530 mm |
yes |
4,7 kg |
550 mm × 350 mm × 380 mm |
yes |
73 l |
| 40503 |
ca. 800 mm × ca. 600 mm × ca. 180 mm |
Bottom part |
no |
4,8 kg |
750 mm × 550 mm × 150 mm |
no |
62 l |
| 40504 |
ca. 800 mm × ca. 600 mm × ca. 250 mm |
Bottom part |
yes |
5,5 kg |
750 mm × 550 mm × 220 mm |
no |
91 l |
| 40505 |
ca. 800 mm × ca. 600 mm × ca. 410 mm |
Top section: total height 530 or 600 mm |
yes |
8,6 kg |
750 mm × 550 mm × 380 mm |
yes |
157 l |
| 40506 |
ca. 800 mm × ca. 600 mm × ca. 610 mm |
Top section: total height 730 or 800 mm |
yes |
10,5 kg |
750 mm × 550 mm × 580 mm |
yes |
240 l |
