Product Details Aluminium Box Zarges K470 IP67
ZARGES K 470 - IP 67: optimised protection against water and dust.
- TÜV-Süd tested box with extra large pressure equalisation valve - optimised protection against dust and water.
- Innovative, patented combination of hinge and closure.
- Customised versions on request.
- High-quality special container made of aluminium.

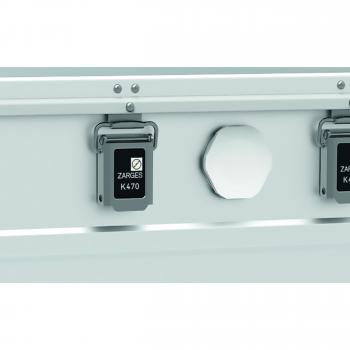

- Extra large pressure equalisation valve.
- TÜV SÜD-tested.
- Protection class IP 67 according to DIN EN 60529 : 2014.
- Extra thick 1.5 mm sheet metal for all K 470 from 750 x 550 mm basic dimensions.

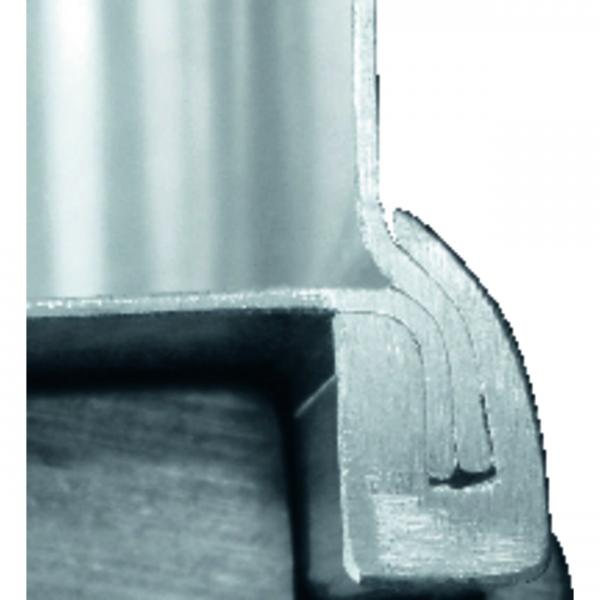

- Profile joints fully welded.
- Special sizes on request.

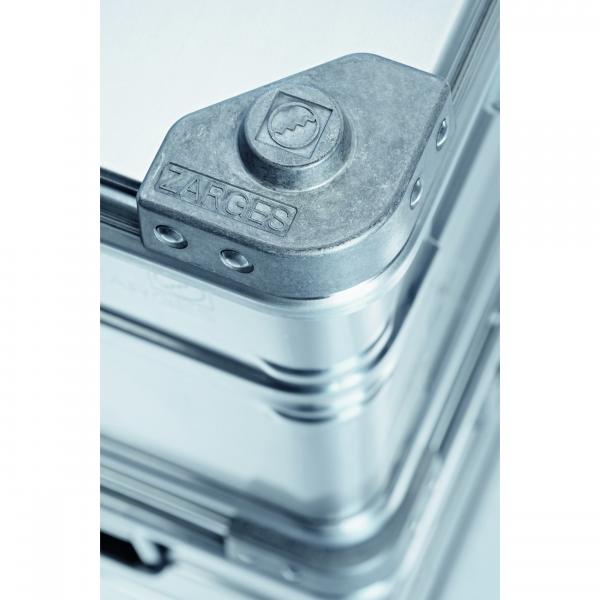

- Stacking corners made of cast aluminium.
- Ergonomic Comfort carrying handles.

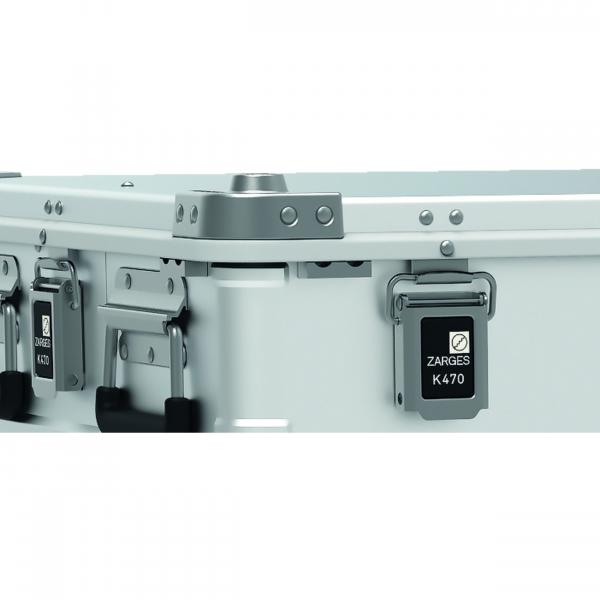

- Ergonomic and durable Comfort latches for at least 20,000 actuation cycles.
Product features Zarges K470 IP67 aluminium box
- Seal: EPDM cellular rubber
- Corner beads: yes
- Colour of stacking corners: Aluminium, natural
- Integrated castors: no
- Material: aluminium
- Material of stacking corners: Aluminium
- Protection class: IP67:
- Stacking corners: yes
- Circumferential beading: yes
- Closures: Comfort closures

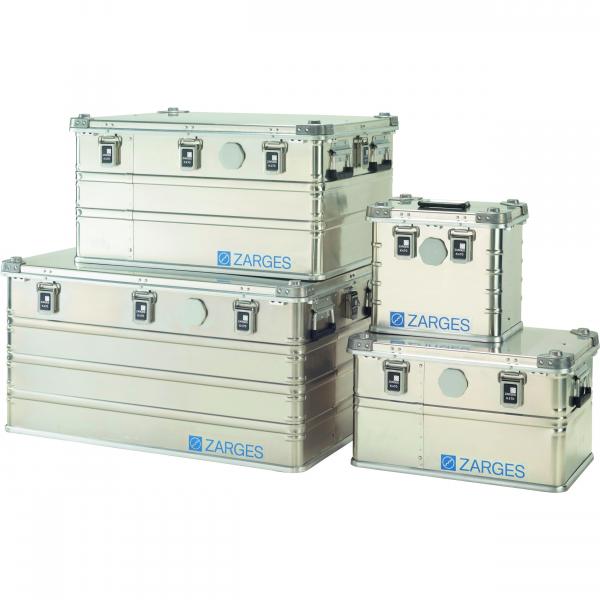

All variants Aluminium box Zarges K470 IP67
| Bestell-Nr. |
Außenmaß L x B x H |
Gewicht |
Innenmaß L x B x H |
Volumen |
| 45075 |
800 mm × 600 mm × 720 mm |
26 kg |
730 mm × 530 mm × 570 mm |
200 l |
| 45076 |
1.200 mm × 800 mm × 820 mm |
60 kg |
1.145 mm × 745 mm × 590 mm |
500 l |
| 45077 |
1.200 mm × 1.000 mm × 1.140 mm |
75 kg |
1.145 mm × 945 mm × 930 mm |
1000 l |
| 41816 |
ca. 600 mm × ca. 400 mm × ca. 385 mm |
8,3 kg |
550 mm × 350 mm × 310 mm |
60 l |
| 41817 |
800 mm × 400 mm × 455 mm |
10 kg |
750 mm × 350 mm × 380 mm |
99 l |
| 380366 |
ca. 600 mm × ca. 400 mm × ca. 410 mm |
5,3 kg |
550 mm × 350 mm × 380 mm |
73 l |
| 379083 |
ca. 800 mm × ca. 600 mm × ca. 410 mm |
10 kg |
750 mm × 550 mm × 380 mm |
157 l |
| 380378 |
ca. 800 mm × ca. 600 mm × ca. 610 mm |
12 kg |
750 mm × 550 mm × 580 mm |
239 l |
| 379725 |
ca. 950 mm × ca. 690 mm × ca. 480 mm |
13,4 kg |
900 mm × 640 mm × 450 mm |
259 l |
