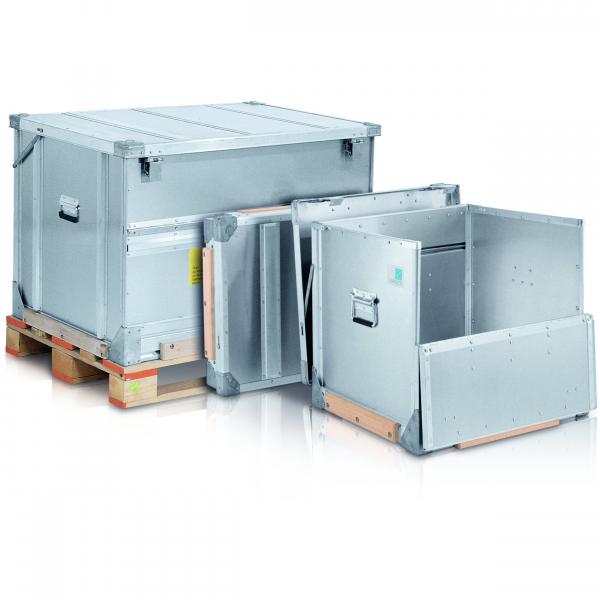

Product Details Aluminium Box Zarges Folding Boxes RetouЯ® for General Cargo
Foldable reusable aluminium packaging.
- Can be folded by one person in a few easy steps.
- Easy handling due to interlocking profiles with lift-out protection on the floor pan and side parts.
- Impact protection strips.
- High stability due to triple profile edging of the outer walls.
- Folding ratio 1:3.

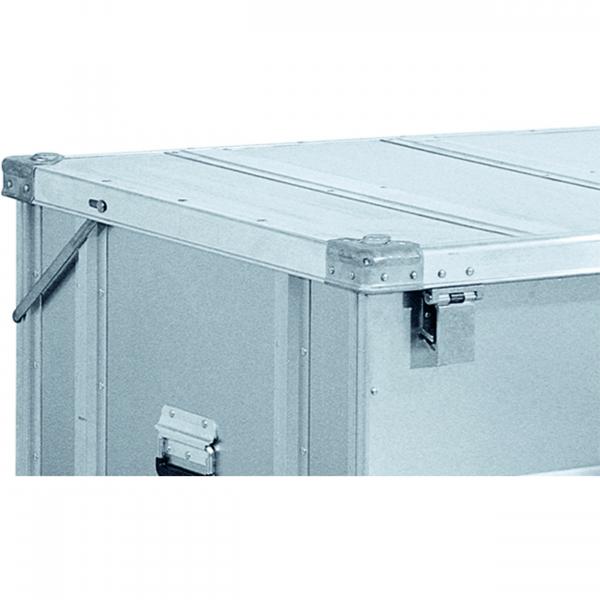

- Lid firmly connected to rear wall via swing hinge.
- End walls and lid with additional, external stiffening profiles.
- Self-locking latches, can be sealed and/or secured with a U-lock.
- Stacking corners.
- Suitable for roller conveyors.
- 15 mm free space when folded (e.g. for inner lining).

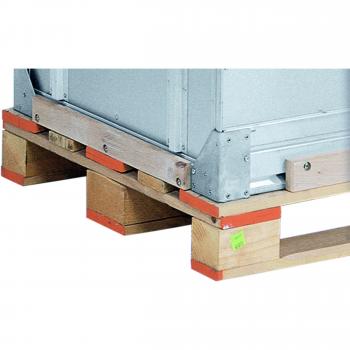

- Supplied with wooden pallet and wooden ram protection strips.
- Special sizes on request.
- Aluminium pallet and aluminium impact protection strips are optional extras.
- Also available as UN-approved dangerous goods packaging.
All variants Aluminium box Zarges folding boxes RetouЯ® for general cargo
| Order no. |
Outer dimension L x W x H |
Folding height |
Weight |
Inner dimension L x W x H |
Volume |
Max. gross mass Hazardous goods approval |
| 45070 |
ca. 800 mm × ca. 600 mm × ca. 600 mm |
145 mm |
21 kg |
730 mm × 530 mm × 570 mm |
221 l |
120 kg |
| 45073 |
ca. 1.200 mm × ca. 800 mm × ca. 900 mm |
287 mm |
62 kg |
1.130 mm × 730 mm × 740 mm |
610 l |
180 kg |
