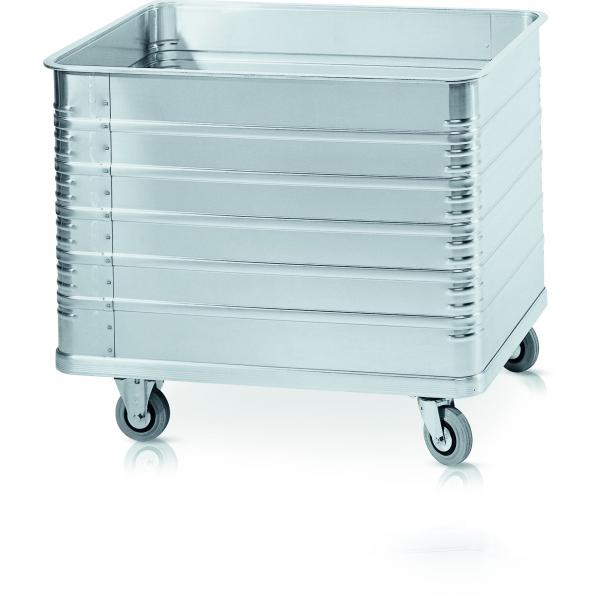

Product details Zarges W 170 transport trolley
The all-rounder: universally usable, robust box van for operational logistics or waste transport.
- Robust and durable due to many quality features, e.g. stable, large-dimensioned edge and base profile, permanently connected to the jacket and base sheet by high-strength positive locking, riveted jacket joint and welded frame profiles.
- High stability due to end and side wall reinforcement with all-round beading and corner beading.
- High driving comfort due to easy-running rubber-tyred castors, non-marking, with roller bearings and thread guards.
- Sturdy, generously dimensioned edge and base profile, permanently connected to the shell and base plate by high-strength positive locking.
- End and side wall reinforced by all-round beading and corner beading for high stability.
- Running gear: 2 swivel and 2 fixed castors in corner arrangement, Ø 125 mm, 40 mm wide, easy running, rubber tyres, non-marking, roller bearings, thread guards.
- Completely riveted casing joint. Frame profiles welded.
Product features Zarges W 170 transport trolley
- Corner beading: yes
- Running gear arrangement: 2 swivel castors and 2 fixed castors in corner arrangement
- Material: aluminium
- Castor diameter: 125 mm
- Roller diameter: 40 mm
- Circumferential beading: yes
- Modification of chassis arrangement possible: yes
All variants Zarges transport trolley W 170
| Order no. |
Outer dimension L x W x H |
Weight |
Inner dimension L x W x H |
Volume |
| 40631 |
ca. 1.050 mm × ca. 690 mm × ca. 855 mm |
19,5 kg |
1.000 mm × 640 mm × 650 mm |
415 l |
| 40635 |
ca. 1.300 mm × ca. 750 mm × ca. 955 mm |
23,7 kg |
1.250 mm × 700 mm × 750 mm |
655 l |
