Zarges Stair landing

Product No.:
Shipping time:: 2-4 days (abroad may vary)
Stock:: pieces
Weight:: 50 kg per piece

Inclination:

Vertical height:

Step width:

from 1.111,90 EUR

19% VAT excl. Shipping costs

Ask about product

Description

Description

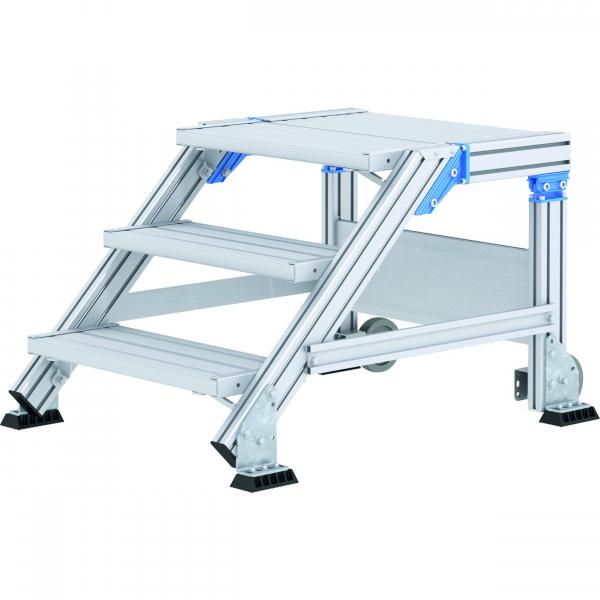

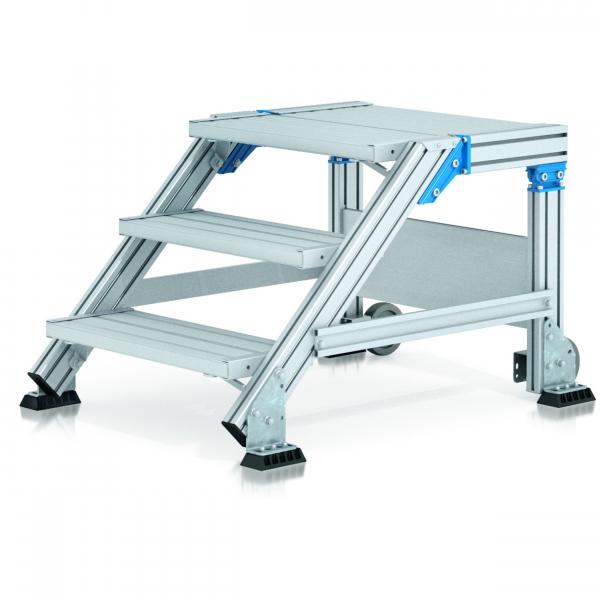

Product details Zarges stair landing

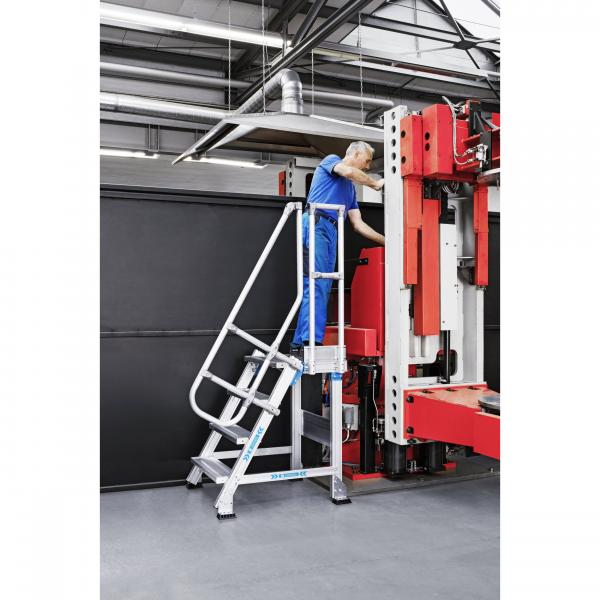

Compact work platform with convenient access. Selectable between fixed and mobile version (for quick change of workplace). Ideally suited for longer lasting work, also with tools.

Individually adapted platform lengths.
Chassis optionally in electrically conductive version.
Configurable up to 1,500 mm vertical height (from 1,000 mm with crossbar for a stable stand).

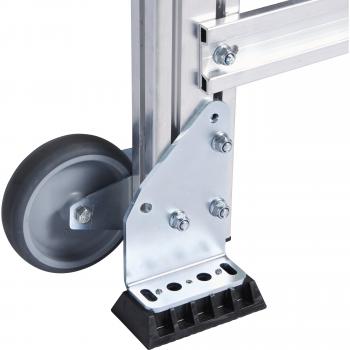

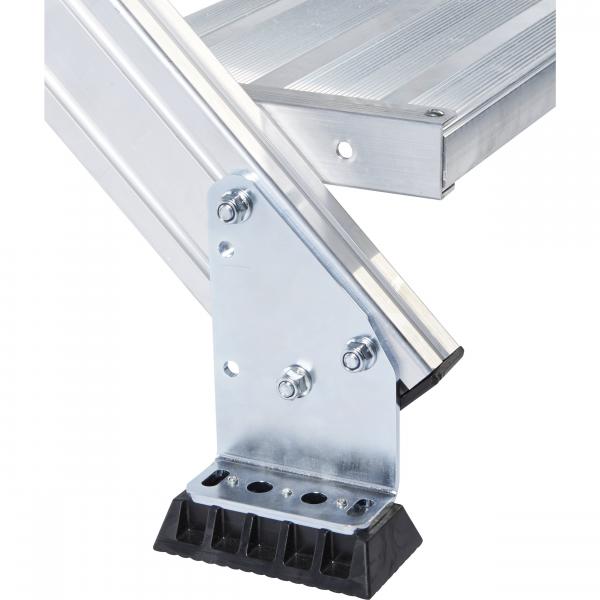

Mounting elements: Support without wheel or as fixed working platform with floor consoles selectable.
Individual railing configuration on the platform, optionally with swing door or drop barrier.
Maximum flexibility thanks to optional handrails and guardrails that can be removed without tools.
Quick and easy assembly thanks to the ZARGES connection system with a high degree of pre-assembly.
In accordance with the Product Safety Act (ProdSG), we recommend equipping the product with handrails on both sides and, in the case of stairs with platforms or maintenance platforms, with a peripheral fall protection device (e.g. guardrail). If handrails or guardrails are not desired, the operator must provide sufficient protection in accordance with the regulations.
Applied standard: DIN EN ISO 14 122.

All Zarges stair landing variants

Order no.	Outreach	Inclination	Number of steps	Step width	Vertical height
40855520	951 mm	45 °	2	600 mm	400 mm
40855521	1151 mm	45 °	3	600 mm	600 mm
40855522	1351 mm	45 °	4	600 mm	800 mm
40855523	1541 mm	45 °	5	600 mm	990 mm
40855524	951 mm	45 °	2	800 mm	400 mm
40855525	1151 mm	45 °	3	800 mm	600 mm
40855526	1351 mm	45 °	4	800 mm	800 mm
40855527	1541 mm	45 °	5	800 mm	990 mm
40855528	951 mm	45 °	2	1000 mm	400 mm
40855529	1151 mm	45 °	3	1000 mm	600 mm
40855530	1351 mm	45 °	4	1000 mm	800 mm
40855531	1541 mm	45 °	5	1000 mm	990 mm
40855540	864 mm	60 °	2	600 mm	500 mm
40855541	1008 mm	60 °	3	600 mm	750 mm
40855542	1147 mm	60 °	4	600 mm	990 mm
40855544	864 mm	60 °	2	800 mm	500 mm
40855545	1008 mm	60 °	3	800 mm	750 mm
40855546	1147 mm	60 °	4	800 mm	990 mm
40855548	864 mm	60 °	2	1000 mm	500 mm
40855549	1008 mm	60 °	3	1000 mm	750 mm
40855550	1147 mm	60 °	4	1000 mm	990 mm
