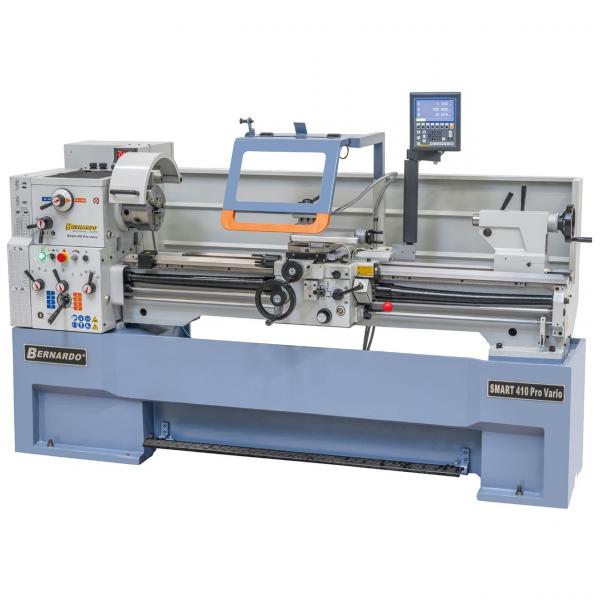

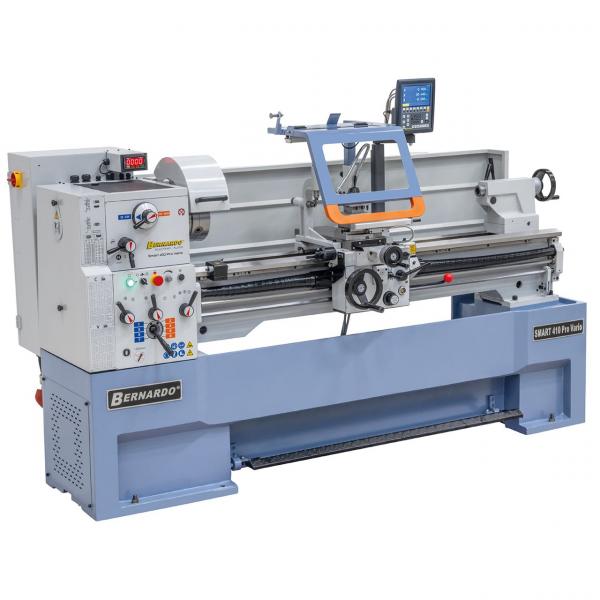

Product highlights Bernardo universal lathe Smart 410 x 1000 Pro Vario
The Smart 410 Pro Vario universal lathe is suitable for carrying out light and medium-heavy turning work. Even the basic equipment includes all the important accessories (3-jaw chuck, steady rests, change gears, 3-axis digital readout, ....), making this machine suitable for universal use. Furthermore, this model is equipped with an infinitely variable spindle speed of up to 3000 rpm, allowing the speed to be optimally adapted to the workpiece and the feed rate.
- Delta frequency inverter as standard for high torque in the lower speed range and almost constant speed under load

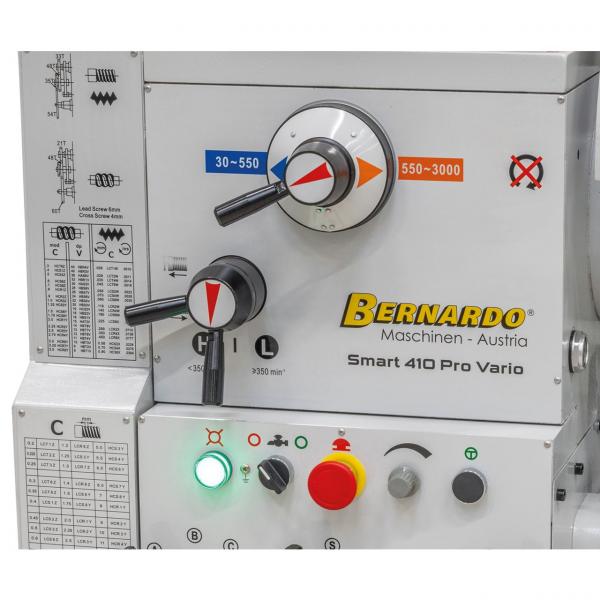

- Infinitely variable speed control, the set speed is shown on a digital display
- Grey cast iron prism bed, induction-hardened and precision-ground

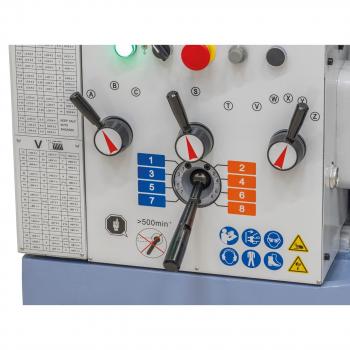

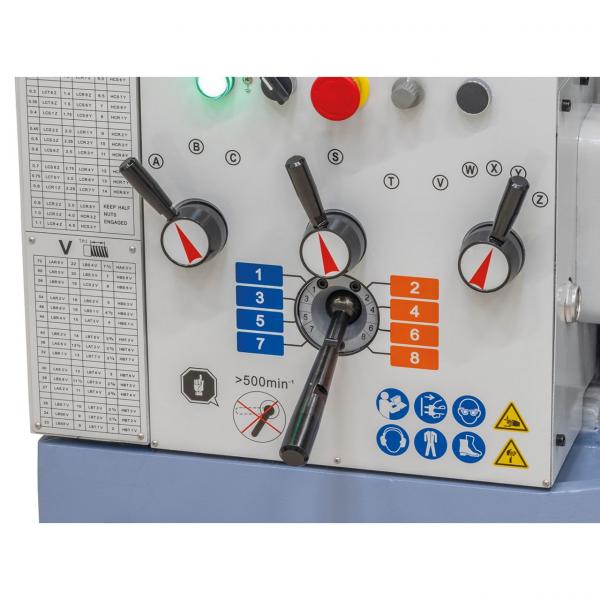

- Central, handy control for feeds and threads with lead and pull spindles
- Modern main spindle bearing system with precision angular contact ball bearings
- Frequency inverter and 3-axis digital readout as standard
- Hardened and ground gears and shafts, also in the feed gearbox
- The speed and feed adjustment is simple, smooth-running and precisely switchable
- Sliding tailstock for taper turning, handwheel with adjustable fine scaling (0.02 mm)
- The removable bridge enables the machining of workpieces with large diameters
Scope of delivery Bernardo universal lathe Smart 410 x 1000 Pro Vario
- 3-axis digital readout ES-12 V with LCD display

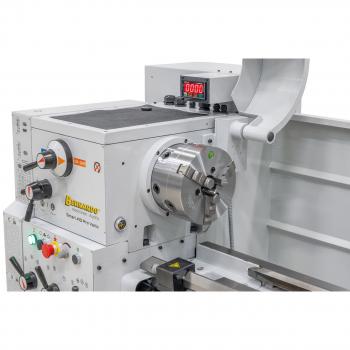

- 3-jaw steel chuck PO3-200 mm / D6
- Clamping disc 350 mm

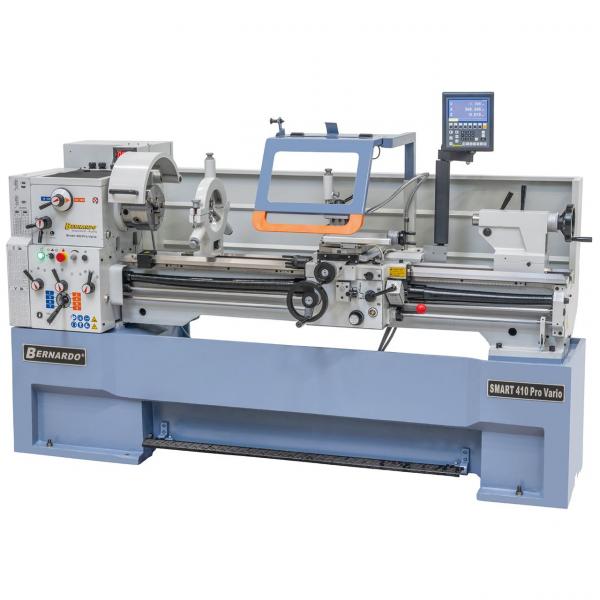

- Fixed steady rest - opening diam. max. 135 mm
- Travelling steady rest - max. diam. 65 mm
- Foot pedal with brake function according to CE
- Quadruple steel holder
- Protective device for quadruple steel holder
- Micrometer longitudinal stop
- Turret stop with fine adjustment
- Frequency converter
- Initial filling with Shell Tellus 46
- Coolant device
- Slipping clutch
- Thread gauge
- LED machine light
- Change gears
- Reducing sleeve
- 2 centres
- Chip back plate
- Operating tool
Technical data Bernardo universal lathe Smart 410 x 1000 Pro Vario
| Centre distance |
1000 mm |
| Centre height |
210 mm |
| Circumferential diameter over bed |
420 mm |
| Circumferential diameter over offset |
580 mm |
| Circumferential diameter above the cross slide |
255 mm |
| Bed width |
250 mm |
| Spindle bore |
52 mm |
| Spindle holder |
DIN 55029, D1 - 6 |
| Speed range |
(16) 30 - 550 / 550 - 3000 rpm |
| Longitudinal feed range |
(17) 0,05 - 1,7 mm/rev |
| Plan feeds area |
(17) 0,025 - 0,85 mm/rev |
| Metric thread |
(42) 0,2 - 14 mm |
| Inch thread |
(45) 2 - 72 Gg/1“ |
| Pinol diameter |
50 mm |
| Pinolenweg |
140 mm |
| Quill holder |
MK 4 |
| Engine power |
5,5 kW (7,5 hp) |
| Machine dimensions (W x D x H) |
2090 x 1050 x 1600 mm |
| Weight approx. |
1145 kg |
