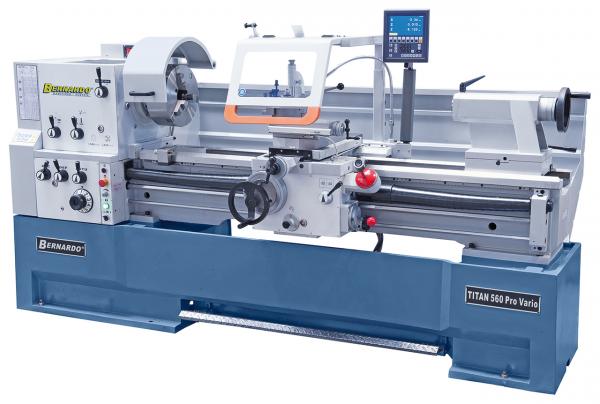

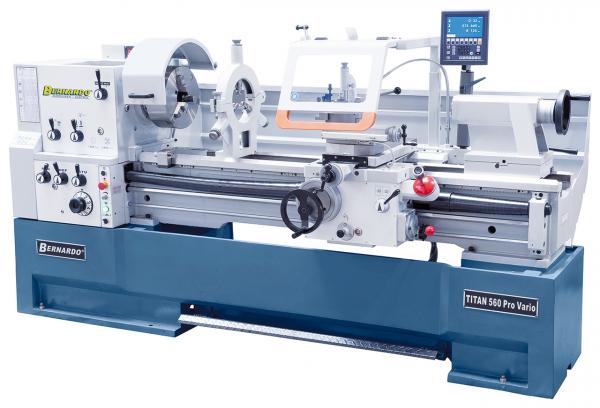

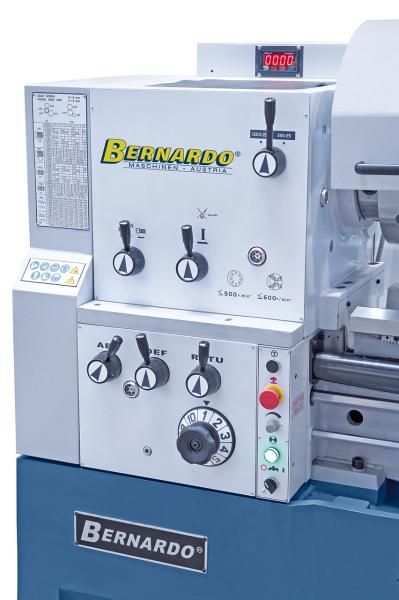

Product features Bernardo universal lathe Titan 560 x 3000 Pro Vario
The Titan 560 Pro Vario production lathe is a modern, state-of-the-art machine. Even the basic equipment includes all important accessories (3-jaw chuck, steady rests, change gears, 3-axis digital display, quick-change tool holder, ....), making this machine universally applicable. Furthermore, this model is equipped with an infinitely variable spindle speed of up to 1500 rpm, so that the speed can be optimally adapted to the workpiece and the feed rate.
- Delta frequency converter as standard for high torque in the lower speed range and almost constant speed under load
- Infinitely variable speed control, the set speed is read on a digital display
- Versatile application possibilities in general mechanical engineering, production, single-part production, ...
- A removable bridge enables the machining of workpieces with large diameters

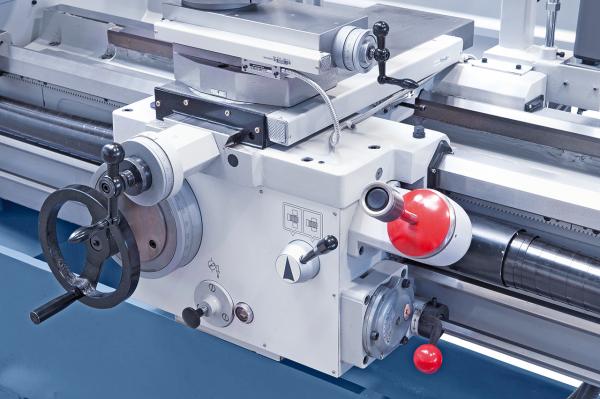

- Rapid traverse lengthwise and crosswise as standard to reduce non-productive time
- Modern main spindle bearing with angular contact ball bearing in precision design
- The machine bed, cast in one piece, is extremely torsion-resistant and low in vibration, which is an essential prerequisite for accurate turning
- Tailstock can be adjusted for taper turning
- Central lubrication for the bed slide
Scope of delivery Bernardo universal lathe Titan 560 x 3000 Pro Vario

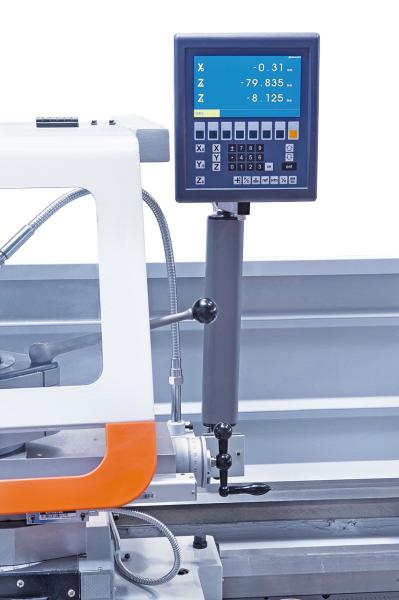

- 3-axis digital display ES-12 V with LCD display
- 3-jaw chuck PS3-315 mm / D8
- Fixed steady rest - passage diam. max. 180 mm
- Travelling steady rest - passage diam. max. 120 mm
- Foot pedal with brake function according to CE
- Safety device for quick-change toolholder
- LED machine light
- Initial filling with Shell Tellus 46
- Clamping disc 450 mm
- 2 centring tips
- Frequency converter
- Digital speed display
- Slipping clutch
- Rapid traverse longitudinal and plane
- Coolant device
- Quick-change tool holder with 4 inserts
- Change wheels
- Reducing sleeve
- Chipping rear wall
- Operating tool
Technical data Bernardo Universal Lathe Titan 560 x 3000 Pro Vario
|
Peak width
|
|
3000 mm
|
|
Centre height
|
|
280 mm
|
|
Swing diameter over bed
|
|
560 mm
|
|
Swing diameter over crank
|
|
785 mm
|
|
Swing diameter over cross slide
|
|
350 mm
|
|
Bed width
|
|
350 mm
|
|
Spindle bore
|
|
105 mm
|
|
Spindle mount
|
|
DIN 55029, D1 - 8
|
|
Speed range
|
|
25 - 220 / 220 - 1500 rpm
|
|
Longitudinal feed range
|
|
(42) 0.055 - 3.061 mm/rev
|
|
Area Plan Advances
|
|
(42) 0.025 - 1.384 mm/rev
|
|
Metric threads
|
|
(41) 0,1 - 14 mm
|
|
Inch thread
|
|
(60) 2 - 112 Gg/1“
|
|
Pinole diameter
|
|
75 mm
|
|
Pinole path
|
|
185 mm
|
|
Spindle sleeve holder
|
|
MK 5
|
|
Engine power
|
|
7.5 kW (10.0 hp)
|
|
Machine dimension
|
Length
|
4340 mm
|
|
|
Width x height
|
1150 x 1610 mm
|
|
Weight approx.
|
|
3000 kg
|
