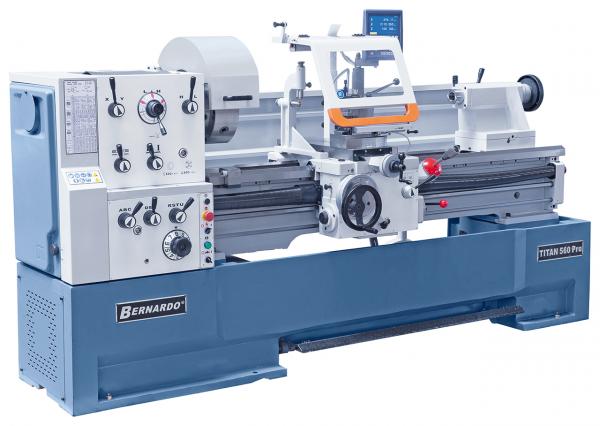

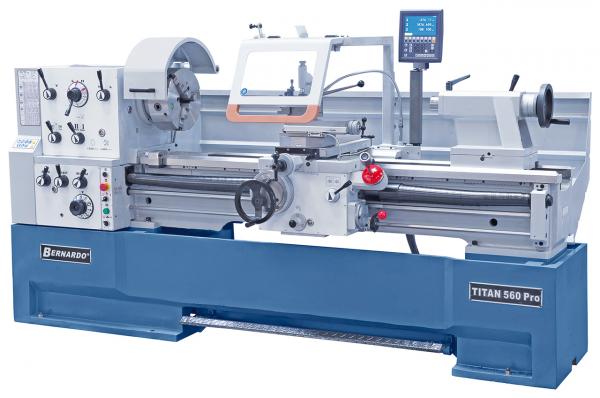

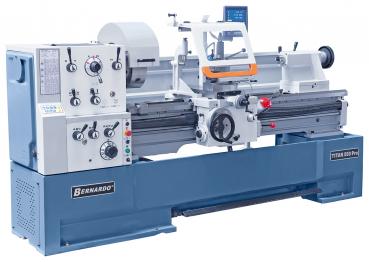

Product features Bernardo universal lathe Titan 560 x 2000 Pro
The Titan 560 Pro production lathe was specially designed for the economical production of individual workpieces. Even the basic equipment includes all important accessories, which makes this machine universally applicable.
- Versatile applications in general mechanical engineering, production, single-part production, ...
- A removable bridge enables the machining of workpieces with large diameters

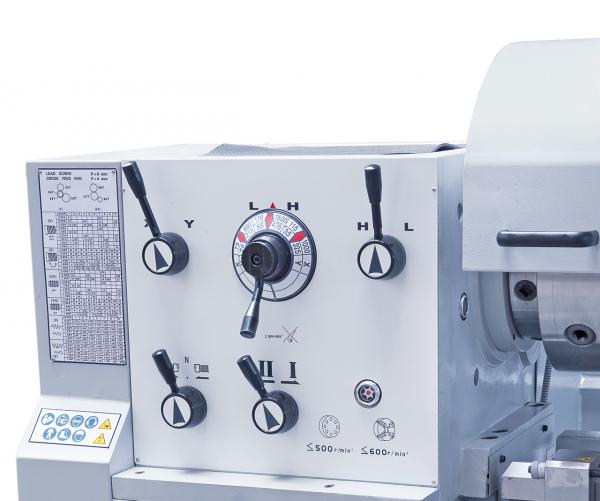

- The speed and feed adjustment is simply designed, smooth-running and precisely switchable

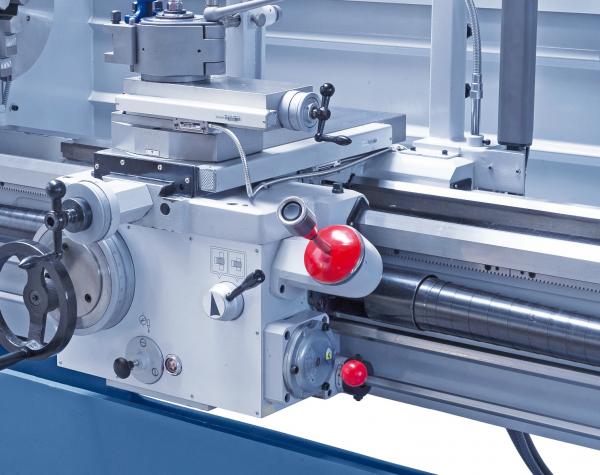

- Rapid traverse lengthwise and crosswise as standard to reduce non-productive time
- The machine bed, cast in one piece, is extremely torsion-resistant and low-vibration, thus fulfilling an essential prerequisite for accurate turning
- Modern main spindle bearing with angular contact ball bearing in precision design
- Tailstock with fine scaling can be adjusted for taper turning
- Central lubrication for the bed slide
Scope of delivery Bernardo universal lathe Titan 560 x 2000 Pro
- 3-axis digital display ES-12 V with LCD display
- 3-jaw chuck PS3-315 mm / D8
- Clamping disc 450 mm
- Fixed steady rest - passage diam. max. 180 mm
- Travelling steady rest - passage diam. max. 120 mm
- 2 centring points
- Initial filling with Shell Tellus 46
- Motor with magnetic brake according to CE standard
- Foot pedal with brake function according to CE
- Coolant device

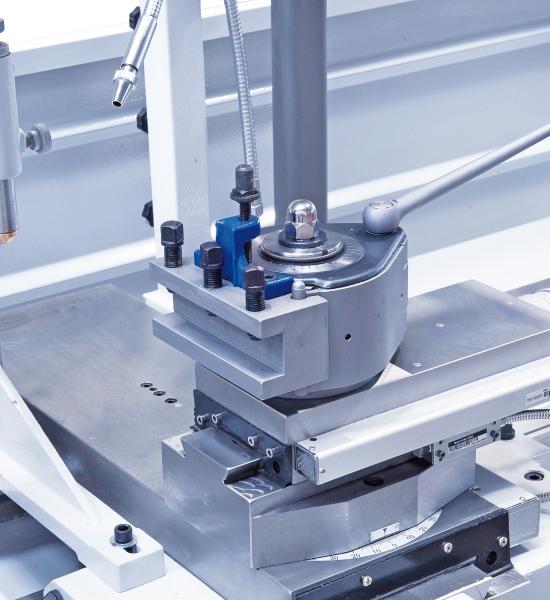

- Quick-change toolholder with 4 inserts
- Safety device for quick-change toolholder
- Slipping clutch
- Rapid traverse longitudinal and plane
- LED machine light
- Change wheels
- Reducing sleeve
- Chipping rear wall
- Operating tool
Technical data Bernardo universal lathe Titan 560 x 2000 Pro
|
Peak width
|
|
2000 mm
|
|
Centre height
|
|
280 mm
|
|
Swing diameter over bed
|
|
560 mm
|
|
Swing diameter over crank
|
|
785 mm
|
|
Swing diameter over cross slide
|
|
350 mm
|
|
Bed width
|
|
350 mm
|
|
Spindle bore
|
|
105 mm
|
|
Spindle mount
|
|
DIN 55029, D1 - 8
|
|
Speed range
|
|
(12) 25 - 1500 rpm
|
|
Longitudinal feed range
|
|
(42) 0.055 - 3.061 mm/rev
|
|
Area Plan Advances
|
|
(42) 0.025 - 1.384 mm/rev
|
|
Metric threads
|
|
(41) 0,1 - 14 mm
|
|
Inch thread
|
|
(60) 2 - 112 Gg/1“
|
|
Pinole diameter
|
|
75 mm
|
|
Pinole path
|
|
185 mm
|
|
Spindle sleeve holder
|
|
MK 5
|
|
Engine power
|
|
7.5 kW (10.0 hp)
|
|
Machine dimension
|
Length
|
3340 mm
|
|
|
Width x height
|
1150 x 1610 mm
|
|
Weight approx.
|
|
2720 kg
|
