NEW

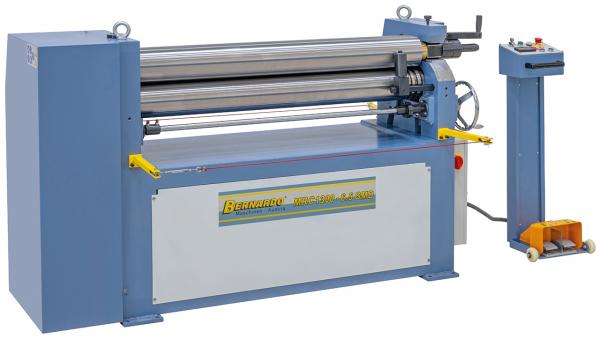

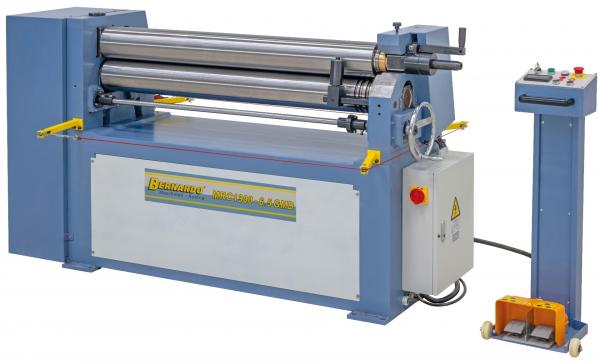

Bernardo MRC 1300 - 6,5 GMD Round bending machine

Product No.:
06-1516XL
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
1345 kg per piece
9.817,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product features Bernardo MRC 1300 - 6,5 GMD round bending machine

  • Extremely robust sheet steel construction for precise work

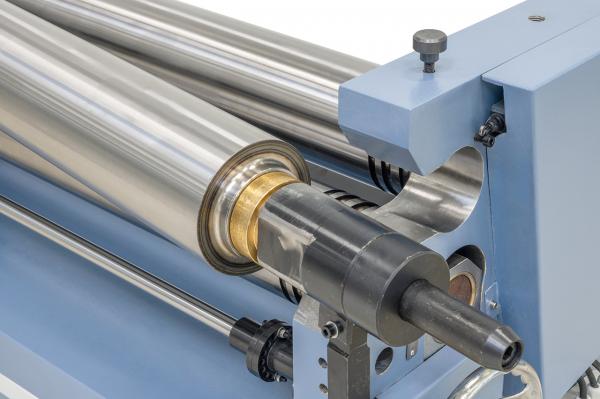

  • Swivelling top roller for easy removal of the finished workpiece

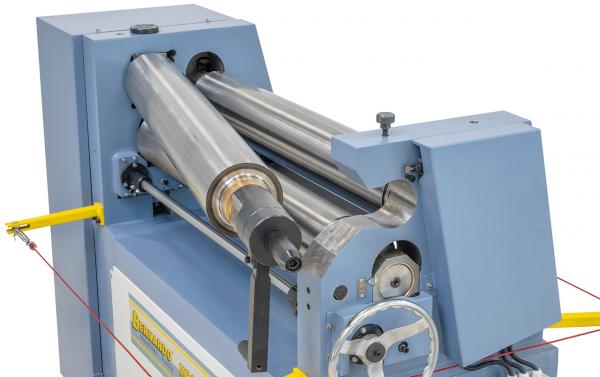

  • Conical bending device included in the scope of delivery

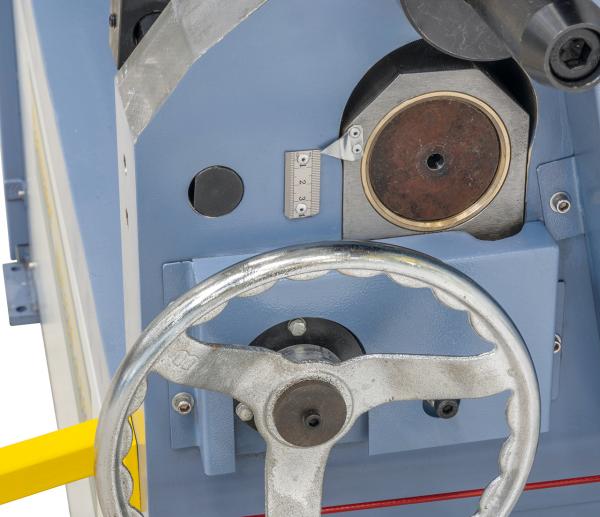

  • Bottom roller can be manually adjusted via handwheel
  • Fixed upper roller, adjustable lower and rear roller
  • Mobile foot switch for clockwise and anti-clockwise rotation and emergency stop function
  • For rolling steel, sheet metal, stainless steel and aluminium

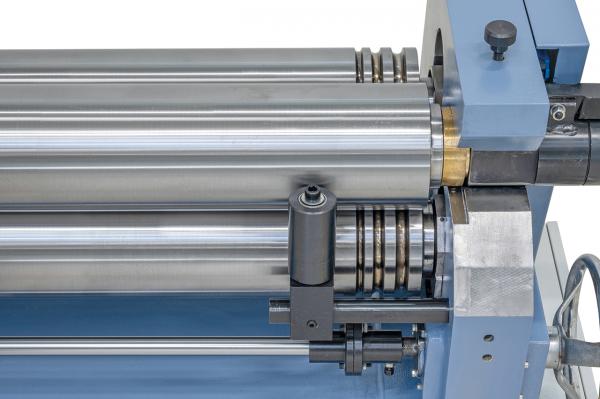

  • Bending rollers made from high-quality steel

Scope of delivery Bernardo MRC 1300 - 6,5 GMD round bending machine

  • Foot pedal with emergency stop
  • Conical bending device
  • Motorised infeed of the rear roller
  • Digital display

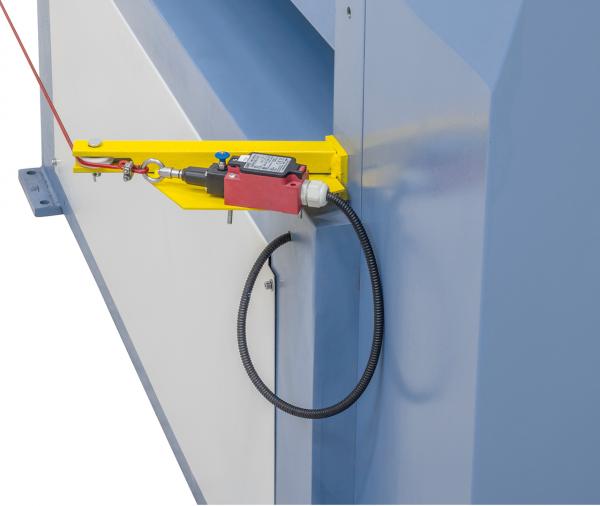

  • Safety device via line
  • Bottom and rear roller with wire insert grooves
  • Hardened bending rollers

Technical data Bernardo MRC 1300 - 6,5 GMD Round bending machine

Roller length 1300 mm
Max. Sheet thickness (400 N / mm2) 6,5 mm
Pre-bending 6,0 mm
Roller diameter 150 mm
Min. bending diameter 225 mm
Roller speed 7 rpm
Engine power 2,2 kW
Motor power rear roller 1,5 kW
Width 1990 mm
Depth 1080 mm
Height 1300 mm
Weight approx. 1345 kg
