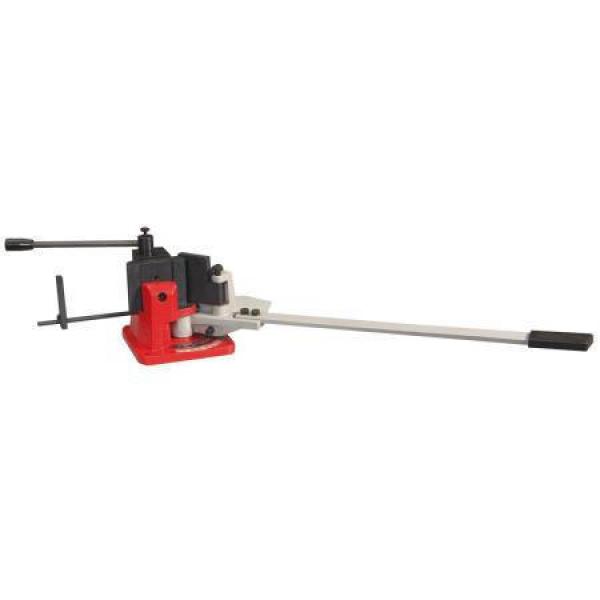

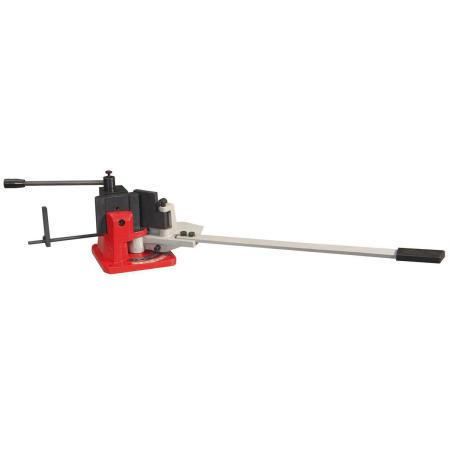

UB70 Holzmann universal bending machine

Product Highlights UB70 Holzmann Universal Bending Machine​

• can be used for cold and hot bending of metals
• Angle scaling with defined snap-in points up to 120
• Adjustable bending stop for high repetition accuracy
• Holes in the casting bed for fixing on the workbench
• Eccentric quick clamping system and workpiece stop
• many different uses

Technical data UB70 Holzmann Universal Bending Machine​

• Cold bending square iron in mm: 16x16
• Hot bending round bar in mm: Ø30
• Hot bending square iron in mm: 30x30
• Hot bending flat iron in mm: 70x15
• Cold bending angle steel in mm: 8x60
• Hot bending angle steel in mm: 60x8
• Cold bending flat iron in mm: 6x70
• Cold bending round bar in mm: 18
• max. bending angle: 120
• Gross weight in kg: 28.50
