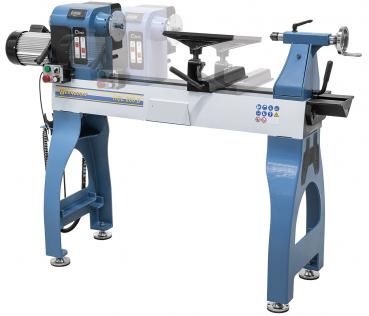

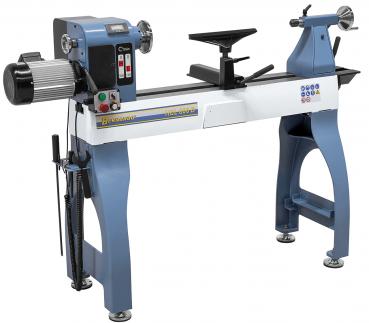

Product features Bernardo HCL 800D 230V woodturning machine
The HCL 800 D model is equipped as standard with an electronically infinitely adjustable speed. This ensures optimum adaptation to the workpiece. This model is mainly used by professional do-it-yourselfers.

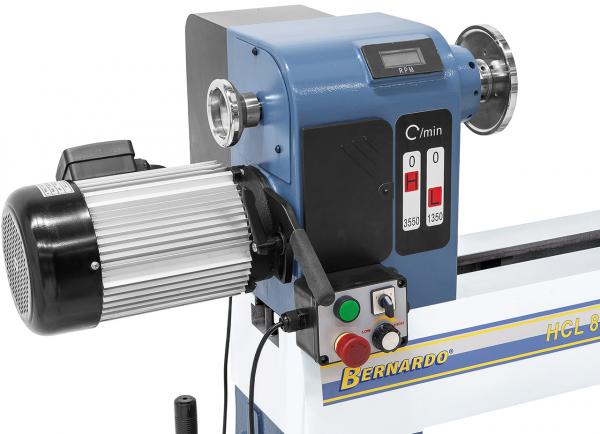

- Variable speed adjustment through delta frequency converter with optimised torque curve

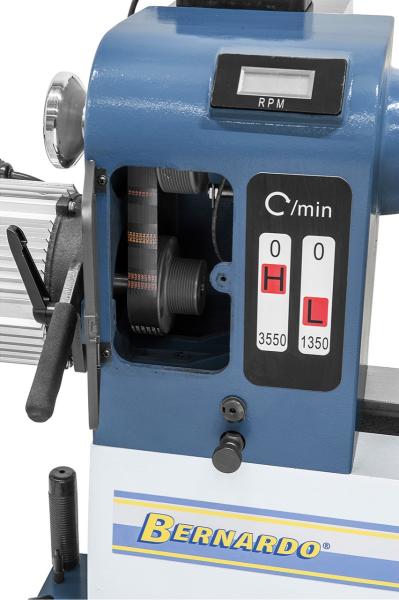

- Wide speed range (2 steps) from 0 - 3550 rpm
- Tailstock quill with through hole for machining long workpieces
- Bed extension optionally available to extend the centre width to 1270 mm
- Equipped with right-left rotation as standard
- Including steel support, easily adjustable to different workpiece diameters
- Easy setting of the desired speed by means of digital display
- Heavy cast iron design for vibration-free working
Scope of delivery Bernardo HCL 800D 230V woodturning machine
- Hand rest 350 mm
- Clamping disc 145 mm
- Travelling centre punch
- Four-prong driver
- Frequency converter
- LED speed indicator
- Operating tool
Technical data Bernardo HCL 800D 230V woodturning machine
|
Peak width
|
800 mm
|
|
Peak width with extension*
|
1270 mm
|
|
Machining diameter
|
|
|
- via guideway
|
508 mm
|
|
- About support
|
400 mm
|
|
Spindle speeds, infinitely variable
|
0 - 1350 rpm
|
|
|
0 - 3550 rpm
|
|
Speed levels
|
stepless, 2 levels
|
|
Spindle thread
|
M 33 x 3,5 mm
|
|
Tailstock
|
|
|
Tailstock cone
|
MK 2
|
|
Spindle sleeve adjustment
|
120 mm
|
|
Motor output power S1 100%
|
2.2 kW (3.0 hp)
|
|
Motor input power S6 40%
|
3.0 kW (4.0 hp)
|
|
Voltage
|
230 V
|
|
Machine dimension (W x D x H)
|
1800 x 570 x 1280 mm
|
|
Weight approx.
|
241 kg
|
